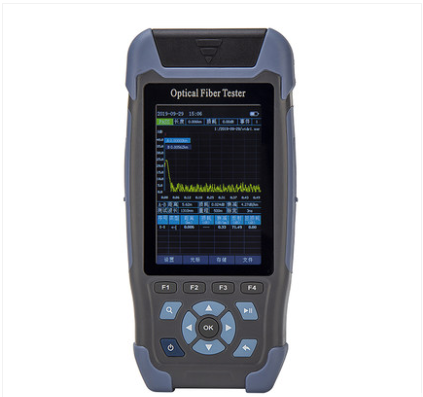

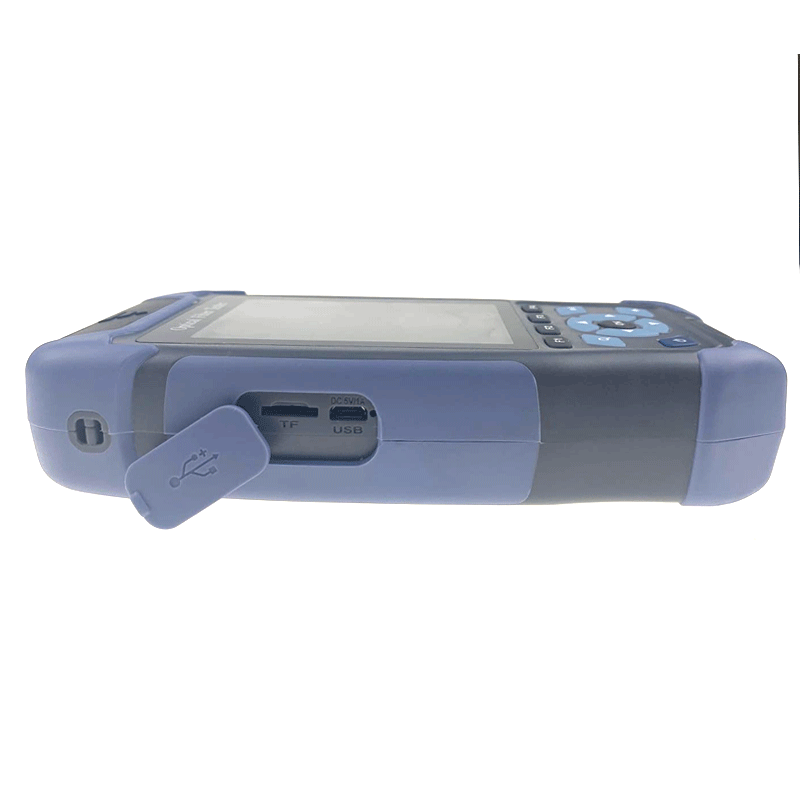

LF-067-Mini Handheld Fiber Optic OTDR 1310/1550nm 24/22dB 60km Optical Time Domain Reflectometer FTTH Tester

LF-067-Mini Handheld Fiber Optic OTDR 1310/1550nm 24/22dB 60km Optical Time Domain Reflectometer FTTH Tester

Share on

Product Description

24/22 dB Mini OTDR for 1310/1550 nm FTTH Link Testing

Mini handheld OTDR for 1310/1550 nm single-mode fibre is designed for FTTH access links, distribution fibres, contractor acceptance and maintenance. NK3200 variants provide 24 dB at 1310 nm and/or 22 dB at 1550 nm with adjustable range and pulse width, SOR trace storage and model-dependent integrated OPM, VFL or copper-assistance functions.

The 60 km description is a nominal application/range reference, not a guarantee that every 60 km link can be fully characterised. The usable trace depends on total loss, reflections, splitter topology, wavelength, pulse width, averaging and event thresholds. Select the exact NK3200S1/S2/D/F model from the network and reporting requirement.

Best-Fit Applications and Configuration Choice

Application

Best-fit configuration

Buyer check

FTTH feeder/distribution

Dual 1310/1550 nm model for comparative traces

Confirm link loss and splitter topology are inside usable dynamic range.

Single-wavelength maintenance

S1 or S2 where one wavelength is sufficient

Avoid saving cost if the acceptance plan requires both wavelengths.

Short access link

Use narrow pulse and launch fibre

3 m event and 8 m attenuation dead zones must suit event spacing.

Fault location

Select range/pulse for the route and retain SOR

Check IOR and route map before dispatching repair crews.

In-service test

Only an approved F-series filtered live-test configuration

Confirm live wavelength, isolation and operator procedure.

Why 24/22 dB and 60 km Are Not the Same Specification

Dynamic range expresses the loss span the instrument can observe under defined conditions. Distance range sets the display window. A low-loss 60 km route and a shorter high-loss splitter route can demand very different dynamic range. Buyers should calculate estimated total loss and leave measurement margin rather than select only by kilometres.

At short distance, dead zones and launch arrangement dominate. At long distance, pulse energy and averaging improve signal-to-noise but reduce event separation. The IOR value converts time to distance and must follow the fibre/cable data used by the project.

Technical Specifications

Parameter

Specification

Product Model

NK3200 Series (NK3200S1/NK3200S2/NK3200D/NK3200F1/NK3200F2)

Tool Type

Mini Handheld Optical Time-Domain Reflectometer (OTDR)

Applicable Fiber Type

Single Mode (SM) Fiber (G.652)

Operating Wavelength

NK3200S1: 1310nm±20nm; NK3200S2: 1550nm±20nm; NK3200D: 1310/1550nm±20nm; NK3200F1/F2: 1310/1550nm±20nm (Live Test)

Dynamic Range

NK3200S1/NK3200F1: 24dB; NK3200S2/NK3200F2: 22dB; NK3200D: 24dB/22dB

Event Blind Zone

3m (Min)

Attenuation Blind Zone

8m (Min)

Test Range

500m/1km/2km/4km/8km/16km/32km/64km (Adjustable)

Pulse Width

3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1μs/2μs/3μs/5μs/8μs/10μs

Ranging Accuracy

±(1m + Sample Interval + 0.005% × Test Distance)

Linearity

±0.2dB/dB

Sample Points

16K ~ 128K (Adjustable)

Sample Resolution

0.05m ~ 8m (Adjustable)

Loss Resolution

0.001dB

Loss Threshold

0.20dB

Refractive Index (IOR)

1.00000 ~ 2.00000 (Adjustable)

Reflection Accuracy

±3dB

File Format

SOR Standard File Format

Laser Safety Class

Class II, Meets International Laser Safety Standards

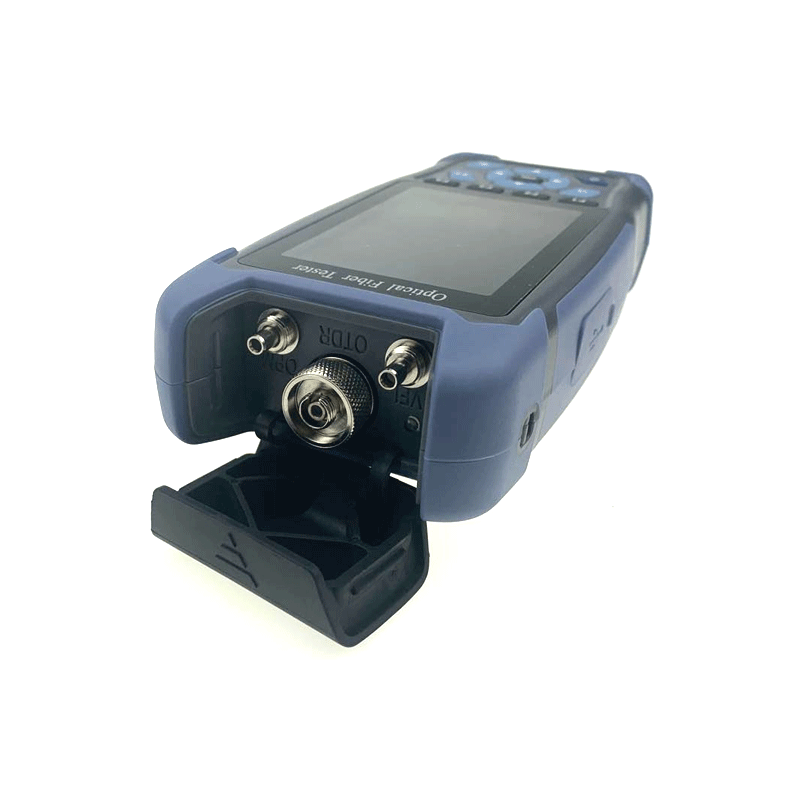

Optical Interface

FC/UPC (Interchangeable with SC/ST Connectors)

Integrated Functions

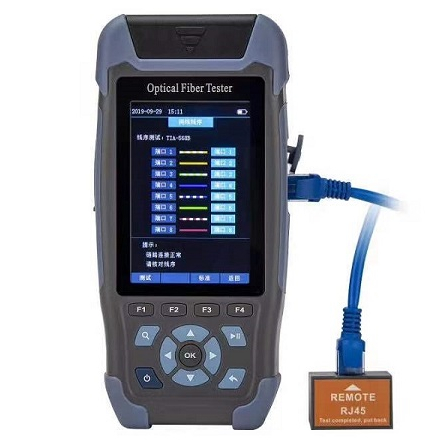

OTDR, OPM, VFL, RJ45 Cable Tracking/Sequence/Length Test, Flashlight

OPM Parameter

Wavelength Range: 800~1700nm; Calibration Wavelengths: 850/980/1300/1310/1490/1550/1625/1650nm

Power Supply

Built-in 7.4V 3200mAh Rechargeable Li-ion Battery; AC/DC Adapter (100~240V, 1.5A)

Battery Life

≥10 Hours (Normal Operation at Room Temperature)

Display Screen

Color TFT LCD, 5.1-inch, 648×480 Resolution, Anti-Reflection Design

Operating Temperature

0°C to +40°C (Battery Charging: 5°C to +40°C)

Storage Temperature

-40°C to +70°C (Excluding Battery)

Relative Humidity

5%~95% (No Condensation)

Body Material

High-Strength Engineering Plastic, Anti-Drop and Wear-Resistant

Overall Dimensions

215mm × 130mm × 66mm (Compact Handheld Design)

Net Weight

Approx. 1kg (Including Battery)

Certifications

CE, RoHS (Meets International Quality and Safety Standards)

Warranty Period

1 Year (Device Body); Consumables Excluded

Standard Package

1×NK3200 OTDR Host, 1×AC/DC Adapter, 1×FC/UPC Connector, 1×USB Data Cable, 1×User Manual, 1×Warranty Card, 1×Portable Storage Case, 1×Cleaning Kit

Configuration control: The original NK3200 Technical Specifications table is retained. Lock sub-model, wavelength, dynamic range, dead zones, live-test function, integrated modules, port, battery and accessories. IEC 61746-1 concerns OTDR calibration errors and uncertainty; request exact-unit evidence if specified by the project.

Trace Interpretation and Acceptance Limits

  • Nominal distance: selectable 64 km range or 60 km marketing description does not guarantee event visibility at the far end.
  • Dead zones: nearby connectors/events may merge; a launch fibre is required for the first connection.
  • One-way trace: apparent splice loss may be biased by different backscatter coefficients; critical acceptance may require both directions.
  • Integrated OPM/VFL: useful for troubleshooting but each function needs its own verification and method.
  • Live testing: only the approved filtered F variant may be used on an active network and only under the operator procedure.

Common Field-Failure Risks and Prevention

Risk

Result in the field

Prevention

Selected by distance only

Instrument lacks margin for real link loss

Calculate total optical loss and event requirements before purchase.

No launch fibre

First event cannot be measured

Include a matched launch fibre with correct connector polish.

Wrong pulse/range

Trace is noisy or events merge

Use a defined test recipe and review automatic settings.

Wrong IOR

Fault team digs or opens the wrong location

Enter and record the project fibre value.

Dirty port

Large reflection and unstable results

Inspect/clean the port and launch connector before each test.

Only image/PDF saved

Future engineer cannot reanalyse trace

Retain SOR files, settings, direction and serial-number mapping.

Pre-shipment Quality and Acceptance Plan

  • Verify NK3200 sub-model, wavelengths, dynamic range, dead zones, range/pulse options and live-test status.
  • Test known reference events for distance, loss and reflection consistency.
  • Confirm SOR file save/open/export, event table, thresholds, language and naming workflow.
  • Check integrated OPM/VFL/RJ45 functions only where ordered and record their scope.
  • Inspect port, display, battery, charger, case, launch cable/adapters, serial label and packing.

B2B Buyer Guide: Information Required for an Accurate Quote

  • Network topology, maximum distance, estimated total loss and event spacing.
  • 1310 nm, 1550 nm or dual wavelength; live-test requirement and approved filtered port.
  • Dynamic range, dead zones, SOR/report workflow and bidirectional acceptance requirement.
  • Launch/receive fibres, connector type/polish, adapters and cleaning/inspection tools.
  • Integrated functions, language, plug, calibration/report scope, warranty, OEM label and packing.

Mini OTDR vs Telecom-Grade OTDR

Choose this NK3200 platform for portable FTTH work where 24/22 dB and its dead zones meet the link. Choose the NK5600 telecom-grade OTDR for higher specified range, shorter dead-zone requirements, larger display/reporting workflow or long-haul work. Use an OPM/OLS pair for contractual end-to-end insertion loss.

MOQ, Samples, Lead Time and Packing

Commercial item

Standard arrangement

MOQ

Project-based quantity for test instruments; all configuration details can be customized to customer requirements.

Samples

Available according to customer requirements for functional and workflow approval.

Lead time

Normally 5–10 days after technical configuration and order confirmation for standard availability.

Packing

Protective bag or case plus export carton; project-specified packing available.

Customization

Function set, adapters, accessories, label, language, inspection documents and packing.

Related Fiber Testing Tools

Complete the kit with a launch cable, reference patch cords, adapters, cleaning tools, fibre identifier and power meter. LinkFiber can supply consistent configuration and labels for multi-crew deployment.


FAQ
Q:

How do you protect precision fiber equipment and fragile components during international transit?

A:
We implement multi-layered protective packaging, using shockproof molded foam and heavy-duty, moisture-resistant exterior boxes. We partner with reliable international freight forwarders to guarantee safe, seamless delivery to your destination.
Q:

Are these testing instruments durable enough for harsh outdoor fiber optic installations?

A:
Yes. Our testing tools are engineered with ruggedized, shock-absorbing protective sleeves and feature industrial dustproof and waterproof designs, making them ideal for heavy-duty field use in cell tower upgrades, urban trunk lines, and FTTH deployment.
Q:

How do you guarantee the measurement accuracy of your fiber optic testing tools before shipment?

A:
Every testing instrument, including our OPMs and OTDRs, undergoes strict factory calibration against international NIST traceable standards. We provide comprehensive calibration data to ensure telecom-grade precision and reliability for immediate field network testing.
