LF049 FC6S High Precision Fiber Cleaver FTTH Splicing Tool Manufacturer

Share on

Product Description

Product Overview

The FC6S Fiber Cleaver is a professional high-precision optical fiber cutting tool, specially designed for FTTH, FTTx projects, fiber optic cold splicing, hot splicing, and daily fiber maintenance.

≤0.5° Cutting Angle: The 16-surface premium tungsten steel blade ensures ultra-flat cleaves without burrs, maximizing fusion splicing efficiency.
One-Step Automatic Return: Close the cover and push to cleave. The automatic blade return slide saves labor and minimizes operator error.
3-in-1 Universal Fixture: Seamlessly handles $0.25text{mm}$ bare fiber, $0.9text{mm}$ pigtail, and $2.5text{-}3text{mm}$ drop cable without swapping fixtures.
Built for the Field: Weighing only $230text{g}$ with a rugged metal housing and anti-slip rubber base , it operates reliably from
High ROI for Bulk Procurement: Boasting a service life of ≥45000 cuts alongside CE and RoHS certifications , it is the ideal choice for large-scale telecom deployment.

Detailed Technical Specifications

Product Model	FC6S Fiber Cleaver (Fixed Model)
Product Category	Professional High-Precision Fiber Cutting Tool (FTTH, Cold Splicing, Hot Splicing)
Application	FTTH/FTTB/FTTC Installation, FTTx Projects, Fiber Optic Cold Splicing, Hot Splicing, Fiber Maintenance & Emergency Repair, Bare Fiber/Pigtail/Drop Cable Cutting
Blade Material	High-Quality High-Strength Tungsten Steel, High Hardness, Wear-Resistant, Corrosion-Resistant
Blade Specifications	16 Cutting Surfaces, Replaceable Blade; Total Blade Service Life: ≥45000 Cuts
Cutting Mode	One-Step Press Cutting, Automatic Blade Return, Smooth Blade Slide; Simply Close Cover and Push Fiber Cover to Complete Cutting
Compatible Fiber Types	Bare Fiber (0.25mm, 125μm), Pigtail (0.9mm), Drop Cable (2.5-3mm); Suitable for Single-Mode and Multi-Mode Fibers
Fixture Design	3-in-1 Universal Fixture, Integrated 0.25mm/0.9mm/2.5-3mm Slots, No Need for Fixture Replacement
Cutting Quality	Smooth and Flat Cutting End Face, No Burrs, Cutting Angle ≤0.5°, Effectively Reducing Splicing Loss
Cutting Length	16-18mm (Adjustable), Suitable for 0.25mm/0.9mm Fibers and Drop Cables
Operating Temperature	-40℃ ~ +80℃, Wide Temperature Adaptation, Suitable for Harsh Outdoor Environments
Storage Temperature	-40℃ ~ +80℃; Relative Humidity: 0~95%; Atmospheric Pressure: 70Kpa ~ 106Kpa
Product Dimensions	62×60×53mm (Standard Size), Compact and Easy to Carry
Net Weight	Approx. 230g (Single Cleaver), Lightweight for Field Operation
Special Design	Rubber Anti-Slip Base Pad, Smooth Blade Slide, Compact Metal Housing, Wear-Resistant Surface, Not Easy to Scratch
Compatibility	Compatible with All Types of Fiber Fusion Splicers, Suitable for Both Cold Splicing and Hot Splicing
Certifications	RoHS, CE (Meets International Quality & Safety Standards, Suitable for Global Export)
Warranty Period	1 Year (Whole Machine); 3 Months (Blade, Consumables Excluded); Blade Service Life: ≥45000 Cuts

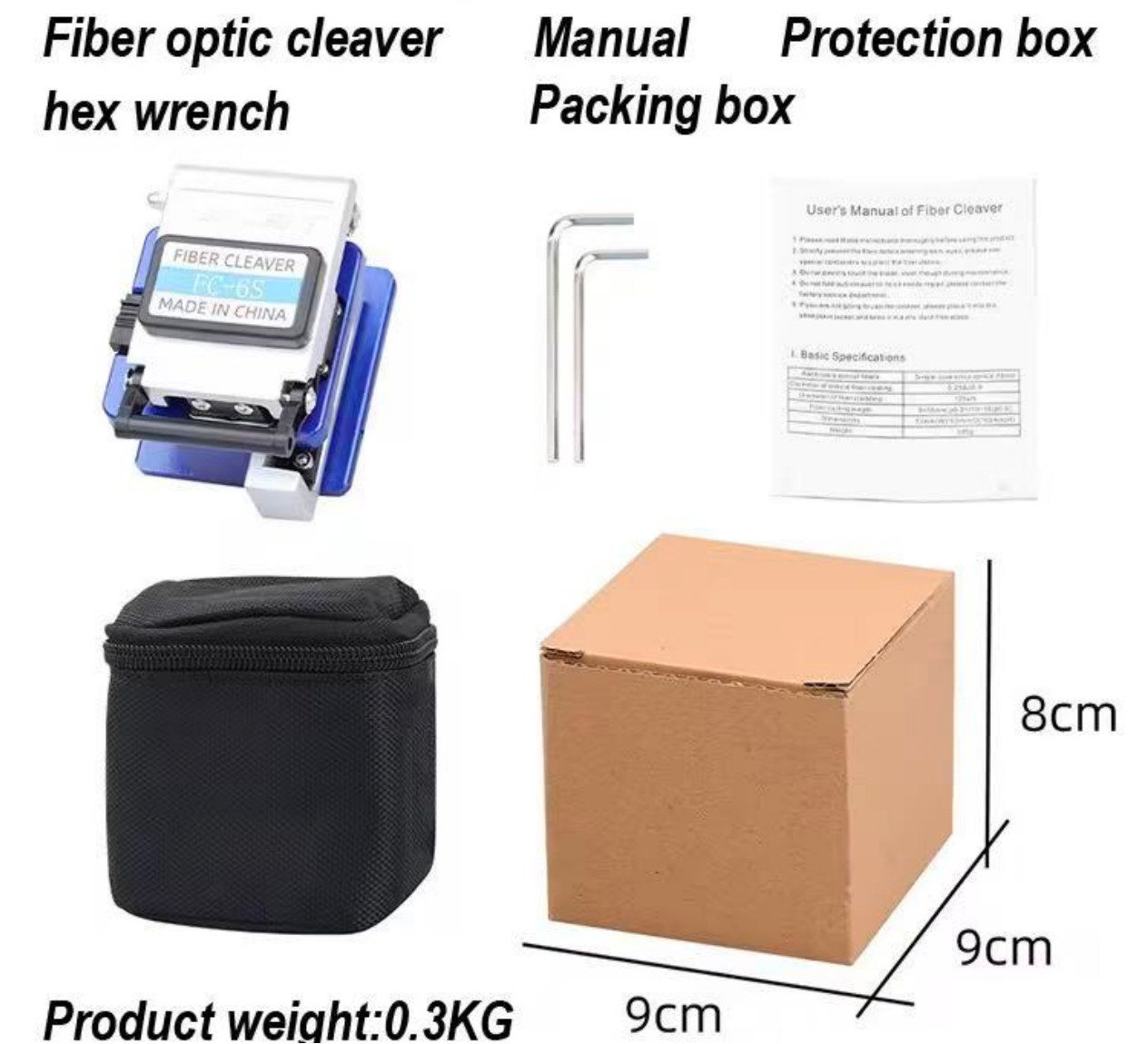

Packaging Details	Hard Carton: 1 Set/Carton; Standard Configuration: 1×FC6S Fiber Cleaver, 1×Hexagonal Knife-Adjusting Wrench, 1×Shockproof Bag, 1×User Manual, 1×Packaging Box; Customizable Logo & Packaging (MOQ: 500 Pieces)

Field Applications

The FC6S Cleaver is widely trusted by telecom operators, ISPs, and network contractors worldwide. It performs flawlessly across:

FTTH/FTTx Access Networks: Ideal for fast on-site drop cable termination.
Splicing Versatility: Optimized for both high-precision fusion (hot) splicing and quick mechanical (cold) connections.
Extreme Environments: Engineered to maintain stable performance in harsh outdoor environments, from residential complexes to remote telecom stations.

FAQ

Q：

What is the cutting life of the FC6S fiber cleaver? Is the blade replaceable?

A：

Our FC6S fiber cleaver uses a high-strength tungsten steel blade with 16 cutting surfaces. Each cutting surface is rigorously tested, and the total blade service life is ≥45,000 cuts. When the blade becomes worn, it can be easily replaced using the included hexagonal wrench – no need to replace the whole cleaver. This significantly reduces your maintenance and consumable costs.

Q：

What cutting angle can the FC6S cleaver achieve? Is it suitable for high-precision fusion splicing?

A：

Yes. This fixed FC6S cleaver is specifically designed for high-precision fiber optic communication projects. The cutting angle is consistently controlled within ≤0.5°. The end face is smooth, flat, and burr-free, which significantly reduces splicing loss. It is fully compatible with all major brands of high-precision fusion splicers (hot splicing) as well as FTTH cold splicing requirements.

Q：

What accessories are included in the standard packaging of the FC6S?

A：

Our standard factory packaging (hard carton) is complete and ready for immediate use. It includes: 1× FC6S fiber cleaver, 1× dedicated shockproof carrying bag, 1× hexagonal blade adjustment wrench, 1× user manual, and 1× standard packaging box.

Q：

What is your warranty policy for fc6s fiber cleaver?

A：

We offer a 1-year warranty on the whole machine (from the shipping date). For consumable parts such as the blade, we provide a 3-month warranty. As an experienced industry supplier, we also offer long-term supply of original replacement blades and full technical operation support, ensuring your purchase is worry-free.

Q：

As a wholesale buyer, can you provide samples or small trial orders for FC6S cleaver?

A：

Regarding sample and small trial orders, please contact our sales team directly for the latest pricing and sample arrangements. Generally, we support sample orders upon request. Specific MOQ and sample terms are negotiable.
