Signal Fire AI7C Fusion Splicer Wholesale Price

LinkFiber is an authorized first-tier distributor of Signal Fire optical fiber fusion splicers, providing global customers with authentic products, comprehensive after-sales service, and highly competitive pricing.

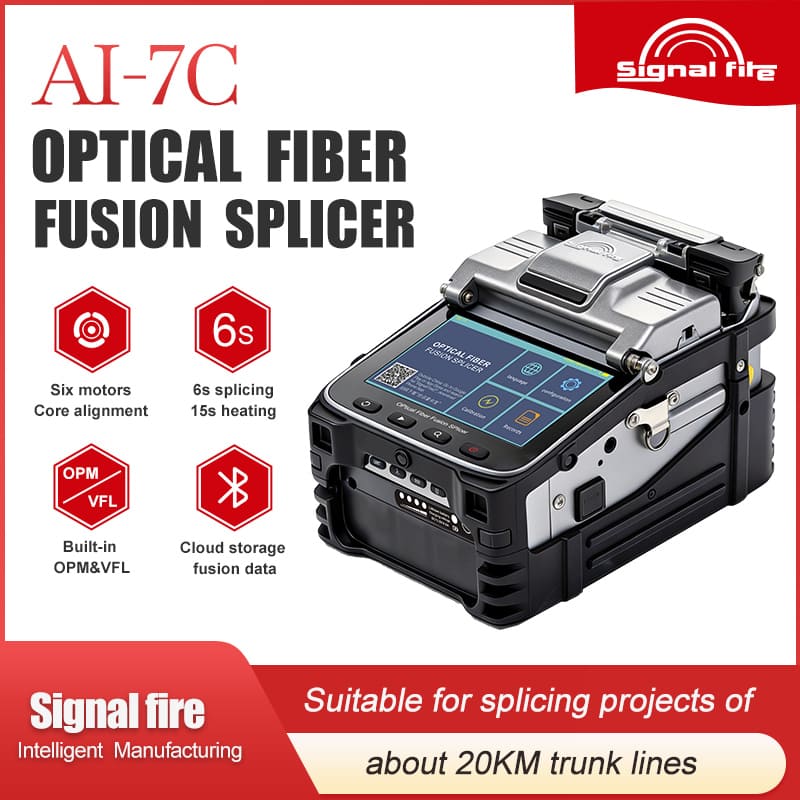

The AI-7C, as Signal Fire's next-generation premium optical fiber fusion splicer, is fully qualified for 20KM trunk construction, FTTH projects, security monitoring, and other fiber cable splicing applications. With industry-leading 0.2μm core alignment accuracy and integrated VFL/OPM functionality, the AI-7C has been exported to nearly 100 countries and regions worldwide, earning unanimous praise from global users.

CORE ADVANTAGES

🎯 Six-Motor Core Alignment Technology

• Precision: 0.2μm - Industry-leading alignment accuracy
• Latest core alignment technology with auto-focus and six-motor drive
• Ensures optimal fusion results for every splice

⚡ Industry-Leading Fusion Speed

• Core Alignment: 6 seconds
• Automatic Heating: 15 seconds
• 50% efficiency improvement compared to conventional splicers
• Industrial-grade quad-core CPU with 1-second boot time
• One of the fastest fiber splicing machines on the market

🔍 320x Ultra-Clear Observation System

• 5-inch color touchscreen display
• Independent X and Y axis display or dual-axis display option
• Crystal-clear fiber observation even with naked eyes
• Auto-focus functionality for intuitive, one-touch operation

🔋 7800mAh High-Capacity Battery

• Charging time ≤3.5 hours
• Single charge supports splicing of approximately 260 cores
• Dual-channel charging design - backup channel available if one fails
• Support for separate battery charging

📶 Integrated VFL & OPM Functions

• VFL (Visual Fault Locator): 15mW, 2Hz flashing and steady-on mode
• OPM (Optical Power Meter): 10 selectable wavelengths (850nm–1650nm)
• Effectively measures connection losses, verifies continuity
• Helps evaluate fiber link transmission quality on-site

📱 Bluetooth Smart Management

• Remote control and data export via mobile APP
• Real-time fusion records, splicing loss viewing
• Remote parameter configuration: language, heating time, alignment mode
• Equipment usage tracking and splicing count management
• OTA firmware upgrade capability

🌐 14 Language Support

Chinese, English, Spanish, French, Portuguese, German, Italian, Turkish, Arabic, Russian, Polish, Ukrainian, Albanian, Thai

TECHNICAL SPECIFICATIONS

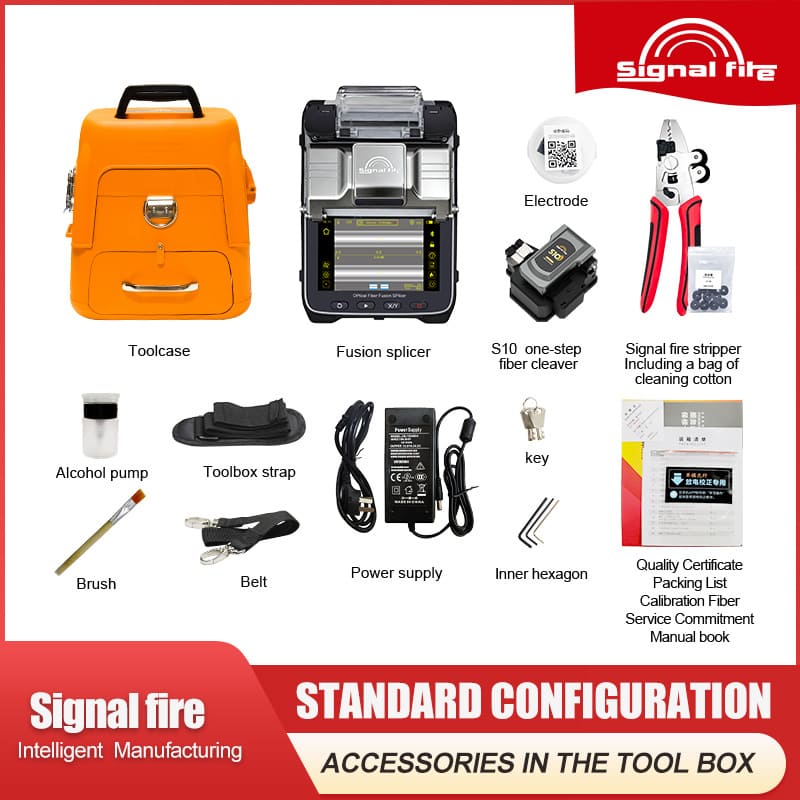

STANDARD CONFIGURATION

✅ AI-7C Fusion Splicer Main Unit × 1

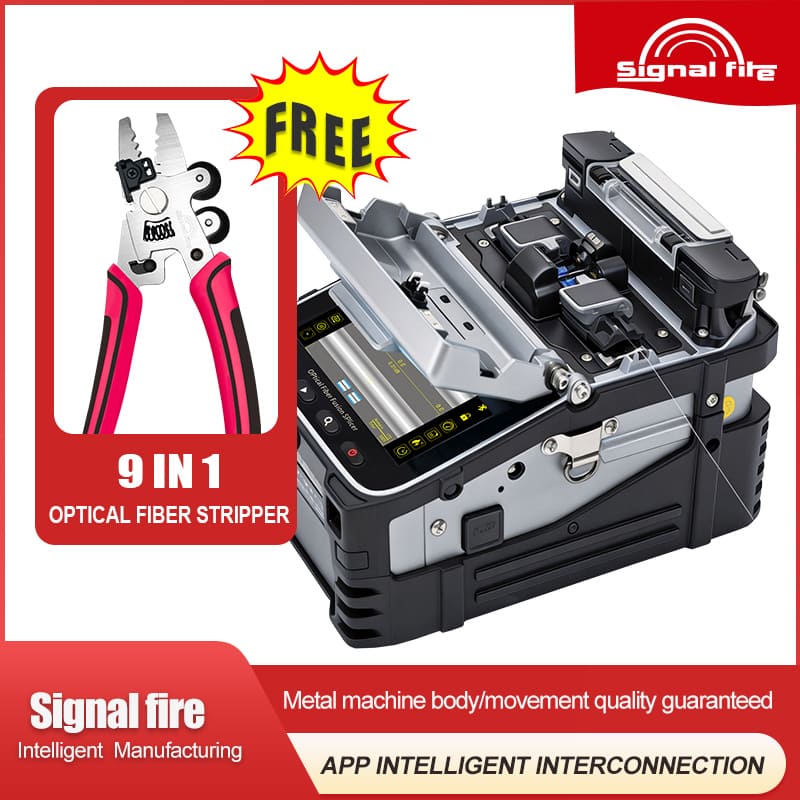

✅ Signal Fire Optical Fiber Stripper (with cleaning cotton) × 1
✅ S10 One-Step Fiber Cleaver × 1
✅ Electrode Set × 1
✅ Power Adapter × 1 (13.5V/4.8A)
✅ Charging Cable × 1
✅ Protective Toolcase (with 100KG-capacity stool) × 1
✅ Heat Shrink Tubes (60mm, 50mm, 40mm, 25mm each)
✅ Cleaning Tools (brush, alcohol wipes) × 1 set
✅ Allen Wrench × 1
✅ Carrying Strap × 1
✅ Complete Documentation (Quality Certificate, Packing List, Calibration Fiber, User Manual, Service Commitment) × 1 set

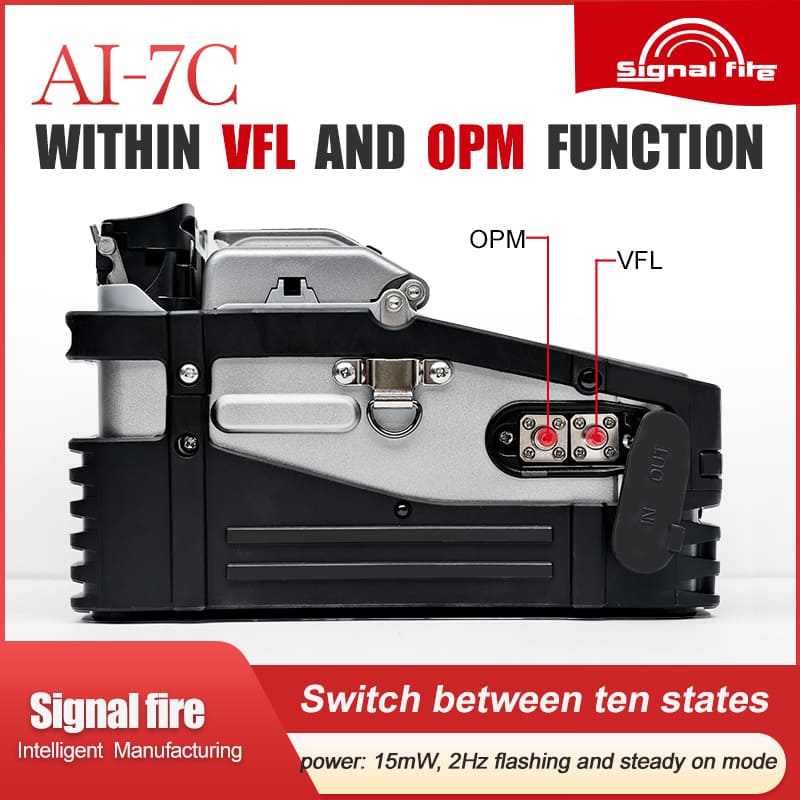

VFL AND OPM FUNCTIONALITY

VFL (Visual Fault Locator)

• Real-time fiber connection status monitoring
• Fiber continuity verification
• Helps evaluate fiber link transmission quality
• 3 operational modes: 15mW, 2Hz flashing, continuous steady mode

OPM (Optical Power Meter)

• Precise connection loss measurement
• 10 selectable wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm
• Measurement range: -50 to +26 dBm
• Absolute error <0.3dB (-50 to +3 dBm range)

APPLICATION FIELDS

📡 Telecom Operators

• 20KM trunk line construction
• FTTH network deployment
• Fiber optic line maintenance

🔒 Security & Surveillance

• Monitoring fiber network installation
• Real-time system maintenance and upgrades

🚄 Rail & Transportation

• Railway fiber optic network installation
• Emergency repair and rapid response

📻 Broadcasting & TV

• Broadcast fiber transmission networks
• Signal relay systems

🏗️ Engineering Companies

• Fiber optic project turnkey solutions
• Emergency rapid repair services

🎓 Research & Education

• Communications laboratory setup
• Talent development and training centers

WHY CHOOSE LINKFIBER?

✨ Authentic Product Guarantee

• Nanjing LinkFiber is an authorized first-tier distributor of Signal Fire
• All products come with original factory warranty certificates
• Fully traceable complete after-sales service system

💰 Highly Competitive Pricing

• First-tier distributor cost advantages
• Volume purchase discounts available
• Transparent, customized procurement solutions

🛠️ Comprehensive After-Sales Service

• 5-year machine warranty (battery and power adapter: 1-year)
• Electrodes classified as consumables, not covered under warranty
• Free technical training and support
• Fast component replacement service
• Remote guidance and on-site support

📞 Professional Technical Team

• Experienced application engineers
• 24-hour technical support hotline
• Regular product upgrade services

🚚 Efficient Logistics & Delivery

• Domestic orders ship within 3-5 business days
• International orders with professional customs clearance and packaging
• Inventory stock for fast supply

📊 Complete Solution Approach

• Beyond product sales
• Engineering consultation services
• Assistance with project design and planning

PRODUCT DESIGN FEATURES

🏆 High-End Industrial Design

• Metal chassis - eliminates shoddy work and inferior materials
• Temperature and cold resistant - making splicing more reliable

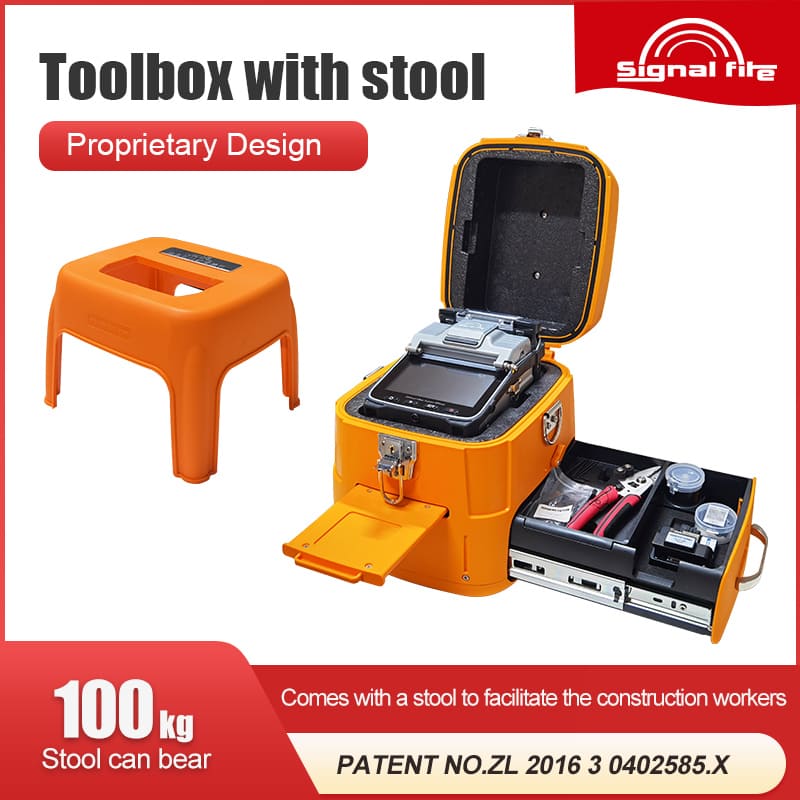

• Premium toolcase - includes 100KG load-bearing stool for on-site convenience
• Exquisite design details within a compact footprint

🧊 Intelligent Preheating Function

• Automatic activation in winter conditions
• 6-second automatic preheating when opening windproof cover after successful fusion
• Ensures efficiency in low-temperature environments

🔌 SC Fiber Compatible Design

• Heating section compatible with SC fibers
• SC fiber: Push-up operation
• Standard fiber: Push-down operation
• No component replacement needed

🌊 Expandable Cooling Rack

• Telescopic design for flexible storage
• Fast cooling speed
• Easy field portability

📋 3-in-1 Fiber Holder

• No need to replace holder
• Compatible with single-mode/multi-mode
• Supports multi-core cables/bare fibers/pigtails/jumper fiber/drop cable

🛡️ Dust/Fall/Shock Prevention

• Rugged protective housing
• Designed for demanding field environments

QUALITY CERTIFICATIONS

✅ ISO 9001 - International Quality Management System Certification
✅ CE - European Union Safety Certification
✅ RoHS - Restriction of Hazardous Substances Directive
✅ FCC - Federal Communications Commission (USA)
✅ UKCA - UK Conformity Assessed
✅ Domestic Certifications - National Quality Supervision & Inspection Bureau
✅ Patents - Nearly 100 domestic and international patents

INTERNATIONAL MARKET PRESENCE

🌍 Exported to Nearly 100 Countries and Regions Worldwide

Including: North America, South America, Europe, Africa, Asia, and other major global markets with unanimous customer satisfaction. AI-7C has also achieved recognition as an Operator Winning Bid Brand, earning first prize in telecom installation and maintenance skills competitions.

PRICING & PROCUREMENT

💼 Tiered Volume Pricing Structure

All Tiers Include:

• ✅ Authentic factory-sourced components
• ✅ Complete English & Chinese documentation
• ✅ Complimentary technical training program
• ✅ 24-hour technical support access
• ✅ Flexible payment terms for bulk orders

COMPARISON: AI-7C VS AI-8C

CONTACT US

Company Name: Nanjing LinkFiber Communications Co., Ltd.
Brand Authorization: Authorized First-Tier Distributor of Signal Fire
Main Products: Optical Fiber Fusion Splicers, Fiber Cleavers, Fiber Strippers, and Related Equipment

📞 Sales Hotline: [Your Phone Number]
📧 Email Inquiry: [Your Email]
💬 Live Chat Support: [Online Consultation Link]
🌐 Company Website: [Your Website]

CUSTOMER TESTIMONIALS

"LinkFiber's AI-7C fusion splicer offers excellent quality, competitive pricing, and most importantly, outstanding after-sales service. We've purchased 50 units and recommend it to all fiber optic engineering companies!"
— Major FTTH Project Contractor

"We've used other brands before, but the Signal Fire + LinkFiber combination is unbeatable. Fast response, professional technical support."
— Telecom Operator Maintenance Center

"The built-in VFL and OPM functions save us from carrying separate testing equipment. A genuinely practical all-in-one solution."
— Field Installation Team Lead

FREQUENTLY ASKED QUESTIONS

Q: What is the warranty period?
A: 5-year machine warranty. Battery and power adapter have 1-year separate warranty. Consumable items (electrodes, blades, holders, etc.) are not covered.

Q: What is the after-sales repair timeframe?
A: We complete repairs within 3-5 business days of receipt. Component replacements are expedited.

Q: Do you support small quantity purchases?
A: Yes. We offer tiered pricing: 5 units (standard), 20 units (volume discount), 50+ units (dealer pricing).

Q: Is technical training provided?
A: All customers receive free technical training and operational guidance.

Q: What payment terms do you offer?
A: We accept T/T bank transfers, L/C, and other flexible payment arrangements for bulk orders.

Q: Do you offer shipping to international locations?
A: Yes. We provide worldwide shipping with professional customs clearance and packaging services.

Q: What is the lead time for orders?
A: Stock orders ship within 3-5 business days. Larger orders may vary based on quantity.

Q: Does the AI-7C include VFL and OPM as standard?
A: Yes. Both functions are built-in as standard features—no additional purchase required.

WHY PRECISION FUSION SPLICING MATTERS

Optical fiber splicing is critical for:

• Reducing signal loss in long-distance communications
• Ensuring reliable connections in mission-critical networks
• Minimizing downtime during network expansion and maintenance
• Improving network performance and transmission quality

The AI-7C's combination of precision, speed, and integrated testing functions (VFL/OPM) makes it the ideal choice for professionals seeking a complete field solution without the need for separate test equipment.

Choose LinkFiber - Choose Authentic Products + Complete After-Sales Support + Competitive Pricing

We are not just a product supplier; we are your trusted long-term business partner!
