Products

‹

FTTH fiber optic installation tool set in protective metal hard case

›

‹

  • FTTH fiber optic installation tool set in protective metal hard case

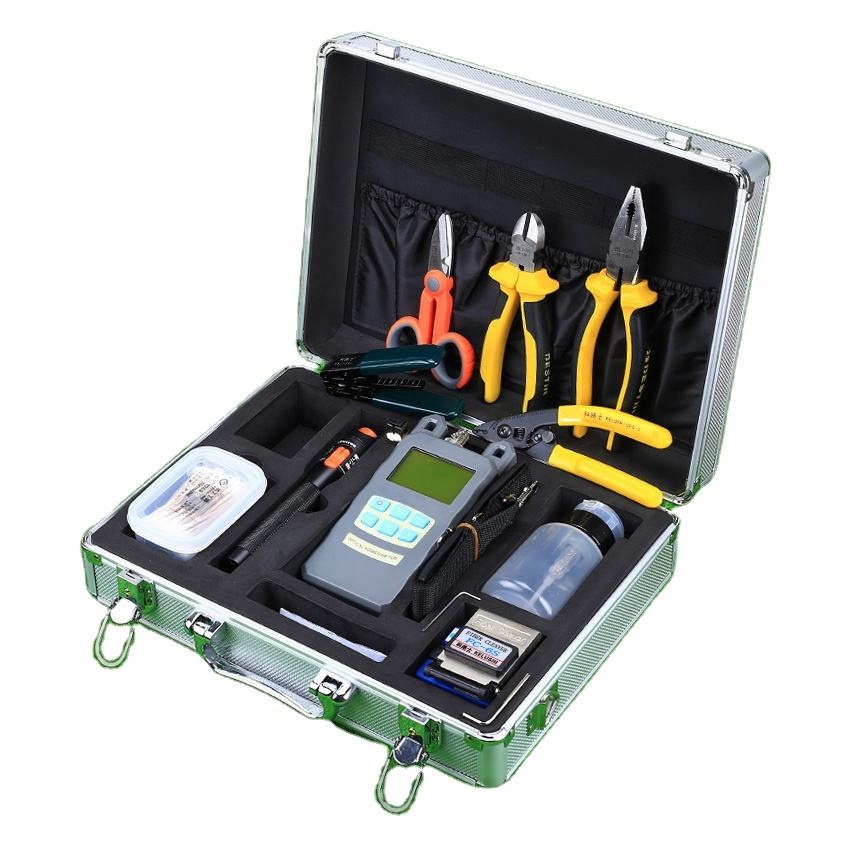

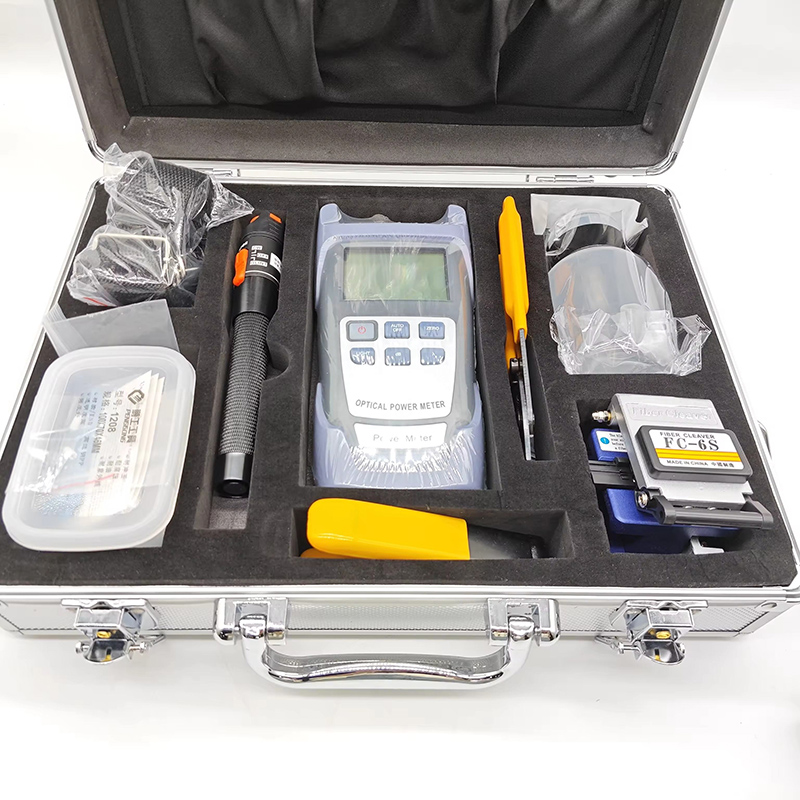

  • Open metal hard case with fiber cleaver stripper power meter VFL and cleaning tools
  • Fiber cleaver and preparation tools in an FTTH installation kit
  • Optical power meter and visual fault locator supplied in a metal case tool set

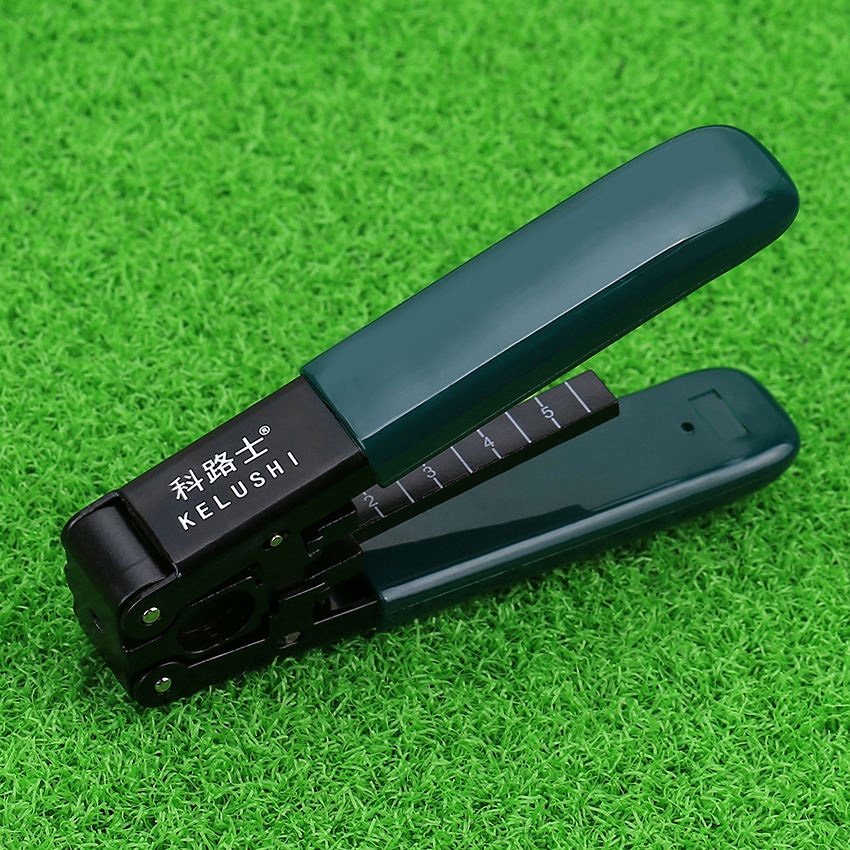

  • Drop cable stripper and fiber coating stripper for FTTH field preparation
  • Organized foam insert for fiber optic tools and spare accessories

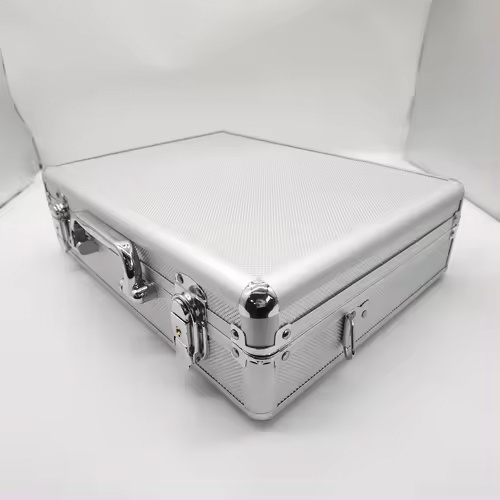

  • Portable metal fiber tool case for telecom field maintenance
  • Customizable FTTH tool kit with cleaving testing cleaning and termination tools

›

LF036 Metal Hard Case FTTH Fiber Optic Installation Tool Set

Custom tool configurations and OEM available upon request

Share on

Product Description

FTTH Fiber Optic Installation Tool Set in a Protective Metal Hard Case

This metal-case FTTH tool set combines fibre preparation, cleaving, cleaning and basic optical troubleshooting tools in an organised transport case. The hard case improves protection and inventory control, but suitability depends on the exact tool list, connector system, fibre/cable construction and test-instrument range.

A cleaver specification, VFL distance or power-meter wavelength should never be assumed from the case name. Each ordered kit should have an approved BOM and exact-model datasheets for the cleaver and instruments.

Configuration and Project Selection

Project inputOptions to confirmEngineering impact
Work processCold termination, fusion-splice preparation, cleaning, basic testing or mixed workDefines tools and consumables; a fusion splicer is not automatically included.
Cable/fibre2.0×3.0 mm drop cable, tight buffer or coated fibreDetermines stripper and slitter sizes.
Connector systemSC/LC/FC/ST; UPC/APC as applicableControls adapters, cleaners and reference cords.
CleaverFibre diameter, holder and acceptance methodCut angle requires measurement; blade life depends on use.
Optical testingVFL and/or power meter wavelength/rangeVFL locates visible faults; it does not measure insertion loss.
CaseMetal case layout, foam slots, lock and spare spacePrevents transport damage and missing tools.
MarketPlug, batteries, language, logo and transport rulesAffects instruments, manuals and shipment.

Technical Specifications

ParameterSpecification / procurement note
Kit typeProfessional FTTH installation and maintenance tool set
Protective caseMetal hard case with organised compartments; exact dimensions model-specific
Cable compatibilityCommon 2.0×3.0 mm drop cable, 0.9 mm tight buffer and 250/900 μm coated-fibre preparation with matching tools

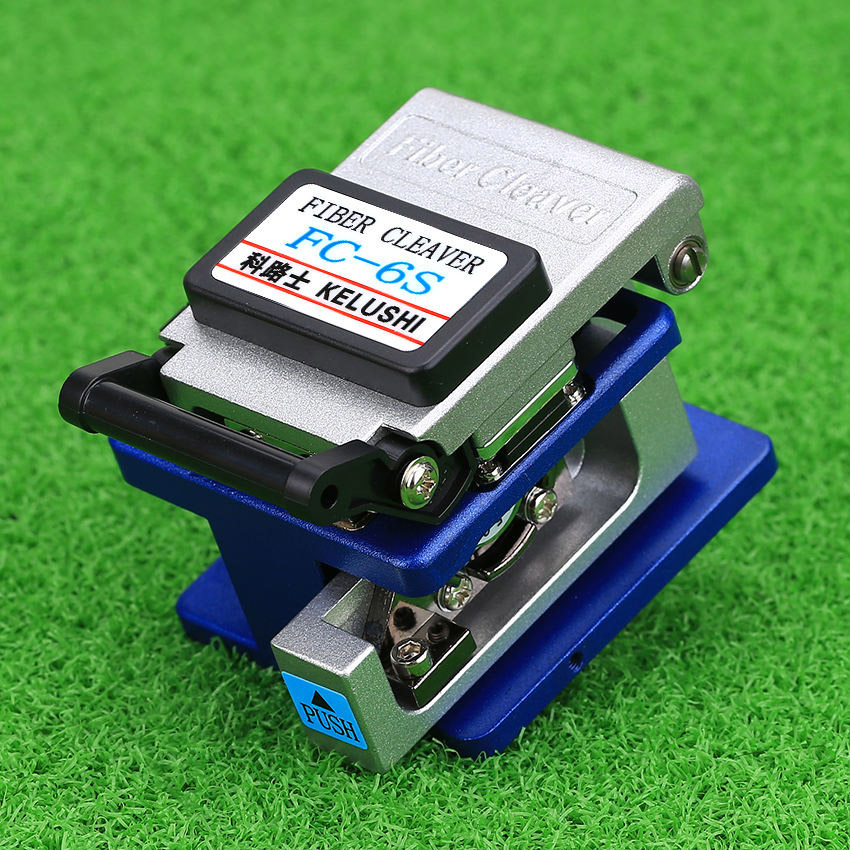

CleaverHigh-precision cleaver according to BOM; cutting angle and blade life are exact-model acceptance parameters
Fibre stripperCoating/buffer range according to selected model; do not use outside approved diameter
Drop-cable toolStripper/slitter matched to cable construction and strength-member layout

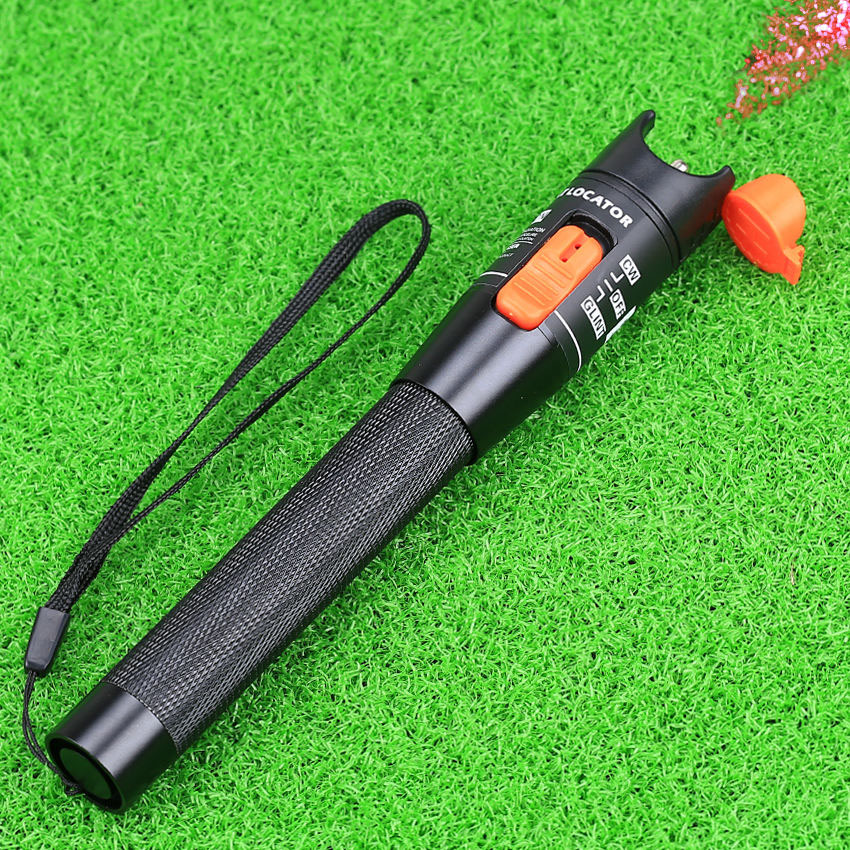

VFLTypically 650 nm; output power, adapter and usable distance exact-model specific

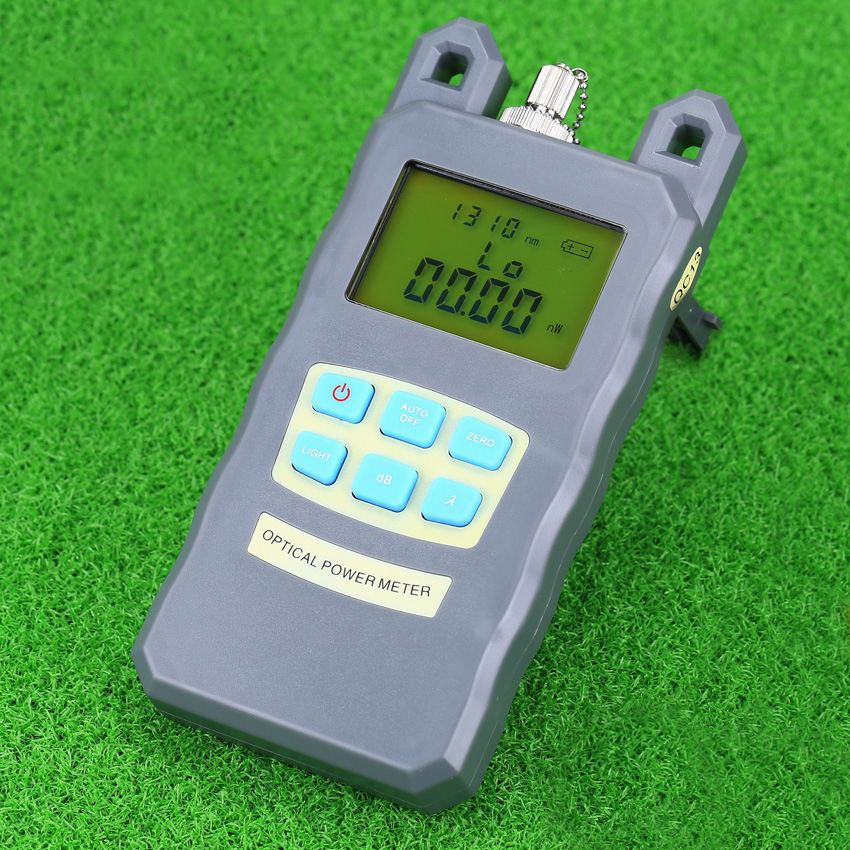

Optical power meterWavelengths, range, accuracy, connector interface and calibration status exact-model specific
CleaningLint-free wipes, alcohol container/pump and connector-cleaner options according to BOM
Connector compatibilityTools for specified SC/LC/FC/ST work; no tool is universally compatible
Operating environmentInstrument and hand-tool limits follow exact-model datasheets
CustomizationTools, instruments, adapters, consumables, foam, case, logo, language and packing

Fibre Preparation, Cleaving and Basic Test Workflow

Use a controlled sequence: identify the cable, remove the jacket without damaging strength members or fibre, strip the specified coating length, clean, cleave, terminate/splice and then test. Keep fibre scraps in a closed sharps container and never touch a cleaned cleaved end.

  • Match each stripper groove to the coating/buffer diameter.
  • Inspect stripped fibre for scoring before cleaving.
  • Clean tools and fibre before every cleave; rotate/replace the blade per manual.
  • Use the VFL only within connector and laser-safety instructions.
  • Use calibrated loss-test equipment when quantitative loss acceptance is required.

Common Procurement and Field Failures

RiskConsequenceControl
Kit selected by piece countMissing critical adapter/tool or unusable duplicatesApprove a process-based BOM.
Cleaver life treated as guaranteedCut quality degrades before claimed countTrack blade position and verify cleaves.
VFL used as loss meterNo quantitative optical acceptanceSpecify a calibrated meter/source or OLTS.
Wrong stripper grooveFibre scoring and later breakageMatch diameter and inspect trial strips.
Dirty tools/reference cordsHigh loss and inconsistent resultsInclude cleaning procedure and supplies.
Case foam not matched to BOMTools move or are omittedApprove foam layout and packed photos.

Pre-shipment Quality and Acceptance Plan

Inspect and function-test the kit as a system, with special attention to the cleaver and electronic instruments.

  • Verify every tool, adapter, consumable and spare against the BOM.
  • Inspect cleaver clamp, blade, carriage and scrap collection; perform representative cleaves where required.
  • Power on VFL/power meter and check display, controls, battery compartment and adapter.
  • Confirm power-meter wavelength/range/calibration documentation when included.
  • Inspect case hinges, locks, handle, foam retention and labels.
  • Record serial/model numbers, accessories and packed photos.

B2B Buyer Guide: Information Required for an Accurate Quote

Provide:

  • Installation process and whether fusion splicing, cold connection or both are required.
  • Cable/fibre sizes and connector/polish types.
  • Cleaver model/performance acceptance and spare blade.
  • VFL power/connector and power-meter wavelength/range/calibration.
  • Cleaning tools, reference cords, adapters and consumables.
  • Case, foam layout, logo, manual language and battery/plug rules.

MOQ, Samples, Lead Time and Packing

Commercial itemStandard B2B arrangement
MOQProject-based; one sample set may be available
SampleConfigured to the approved BOM
Lead timeNormally 5–10 days after tools, instruments and branding are confirmed
PackingMetal hard case with protective inner/export carton
InspectionBOM count, cleaver/instrument function, case and packing
CustomizationTools, instruments, adapters, consumables, foam, logo and language
DocumentsBOM, manuals and instrument datasheets/calibration evidence where ordered

Documentation and Compliance Boundaries

CE, RoHS, FCC, accuracy, cleave angle and blade-life claims must be tied to the exact components supplied. A certificate for one instrument does not certify every hand tool or the assembled kit.

Related Products and Project Interfaces

Compare the portable FTTH cold-splicing tool kit and select individual fiber installation tools by technician workflow.


FAQ
Q：

Why is a metal hard case important for an FTTH fiber optic tool kit?

A：
A metal hard case protects precision tools from impact, dust and transport damage. For B2B buyers, it also makes inventory management easier because technicians can quickly check whether the cleaver, strippers and cleaning tools are complete before leaving for a job site.
Q：

Can the FTTH fiber optic tool kit be customized for project tenders?

A：
Yes. Tool combinations, packing method, label, accessory quantity and kit configuration can be adjusted according to the project requirement. Buyers can send the target cable type, connector type and installation scenario so LinkFiber can recommend a practical tool set.
Q：

What is the usual MOQ, sample policy and lead time for the FTTH tool kit?

A：
MOQ is normally flexible for tool kits. Samples can be supplied according to customer requirements, and normal lead time is usually 5-10 days depending on stock and configuration. Bulk orders can use carton packing or project-specified packaging.
Q：

What should B2B buyers check before purchasing a professional FTTH fiber optic tool kit?

A：
For FTTH deployment, buyers should confirm the kit includes a stable cleaver, fiber stripper, drop cable tools, cleaning accessories, alcohol bottle, scissors and a protective metal case. A complete professional FTTH fiber optic tool kit reduces missing-tool delays during onsite installation and helps technicians keep splicing quality consistent.
Q：

Is this FTTH fiber optic tool kit suitable for field installation teams?

A：
Yes. A professional FTTH fiber optic tool kit is designed for field engineers working on drop cable stripping, fiber preparation, connector installation and basic maintenance. For contractors and ISPs, the key value is portability, organized storage and tool consistency across multiple installation teams.
