Signal Fire AI20 Optical Fiber Fusion Splicer

LinkFiber is the Tier-1 Authorized Distributor and Strategic Partner of Signal Fire.  With a commitment to excellence and customer success, LinkFiber brings Signal Fire's world-class products to telecommunications professionals across six continents.

Why Choose LinkFiber?

✅ Official Tier-1 Distributor – Direct partnership with Signal Fire headquarters in Chengdu
✅ Local Support in Your Region – Multilingual technical support teams
✅ Competitive Pricing – Volume discounts and flexible payment terms
✅ Rapid Delivery – Express shipping options (2-5 business days)
✅ Complete After-Sales Service – Installation support, training, and maintenance
✅ Equipment Warranty Management – Hassle-free claim processing
✅ Bulk Order Solutions – Customized packages for enterprises and contractors

LinkFiber Service Commitment

• 24/7 technical support
• 30-day money-back guarantee on equipment defects
• Free operator training for bulk orders (10+ units)
• Dedicated account managers for corporate clients

Core Innovation Highlights

What Makes AI-20 Different?

The AI-20 isn't just another fusion splicer – it's a complete fiber optic toolkit integrated into a single, portable unit. Unlike traditional solutions requiring separate equipment for splicing, cleaving, power measurement, and fiber diagnostics, the AI-20 combines four essential functions into one intelligent machine.

Full-Link Integration Design means you arrive at a job site with everything needed:

• Precision fusion splicing (6 seconds)
• Electric one-step cleaving (patented delayed-return technology)
• Optical Power Measurement – OPM (-50 to +30dBm)
• Visual Fault Locator – VFL (up to 10km range)
• Built-in 9-in-1 fiber stripper
• Real-time luminous flux assisted alignment

Complete Technical Specifications

Fiber Alignment & Precision

Alignment Method: Core/cladding with real-time luminous flux assisted alignment
Alignment Accuracy: ±0.1 μm (sub-micron precision)
Motor Configuration: 6 precision-controlled servo motors
Fiber Diameter (Cladding): 80–150 μm
Fiber Diameter (Coating): 100–1000 μm

Splicing Performance

Supported Fiber Types

✓ Single-Mode Fiber (SMF/G.652)
✓ Multimode Fiber (MMF/G.651)
✓ Dispersion-Shifted Fiber (DSF/G.653)
✓ G.654 Fiber
✓ Non-Zero Dispersion-Shifted Fiber (NZ-DSF/G.655)
✓ Bend-Insensitive Fiber (BIF/G.657)

Compatible Cable Types: Bare fiber, pigtails, drop cables, patch cords, fusion extensions

Built-In Advanced Functions

OPM (Optical Power Meter)

• Measurement Range: -50 to +30 dBm
• Accuracy: <0.3 dB (-50 to +3 dBm)
• Wavelengths (10 options): 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, 1650nm

VFL (Visual Fault Locator)

• Maximum Range: 10 km
• Power: 15 mW
• Modes: 2Hz flashing & steady-on
• Applications: Fiber tracking, breakpoint detection, light leakage identification

Real-Time Luminous Flux Assisted Alignment

Proprietary Signal Fire technology that intelligently analyzes optical signals to find the lowest-loss alignment point automatically, minimizing fiber fusion loss.

Display & User Interface

Screen: 5-inch high-resolution color touchscreen
Boot Time: 1 second
Languages: 11 (Chinese, English, French, Russian, Italian, Ukrainian, Thai, Portuguese, Spanish, Arabic, Polish)
Magnification: 320x (single-axis) / 200x (dual-axis)

Battery & Power Management

Battery Type: 7800mAh high-capacity lithium
Charging Time: ≤3.5 hours
Charging Method: Dual charging channels (simultaneous or separate)
Runtime: 240+ fiber cores per full charge
Power Input: AC 100–240V, 50/60Hz
Power Output: DC 13.5V ± 0.5V / 4.8A

Environmental Specifications

Physical Dimensions & Weight

Connectivity

Bluetooth: Version 4.2, 2.4GHz band, 60-meter range
Data Storage: 1,000 records on device; unlimited cloud storage
Wireless Updates: Over-the-air firmware updates via Bluetooth
Mobile App: SignalFire2 (iOS & Android)

Advanced Features That Set AI-20 Apart

Feature #1: Full-Link Integration Design

What It Means

All four essential fiber optic tools integrated into a single, compact unit. No need to carry separate equipment or manage multiple devices.

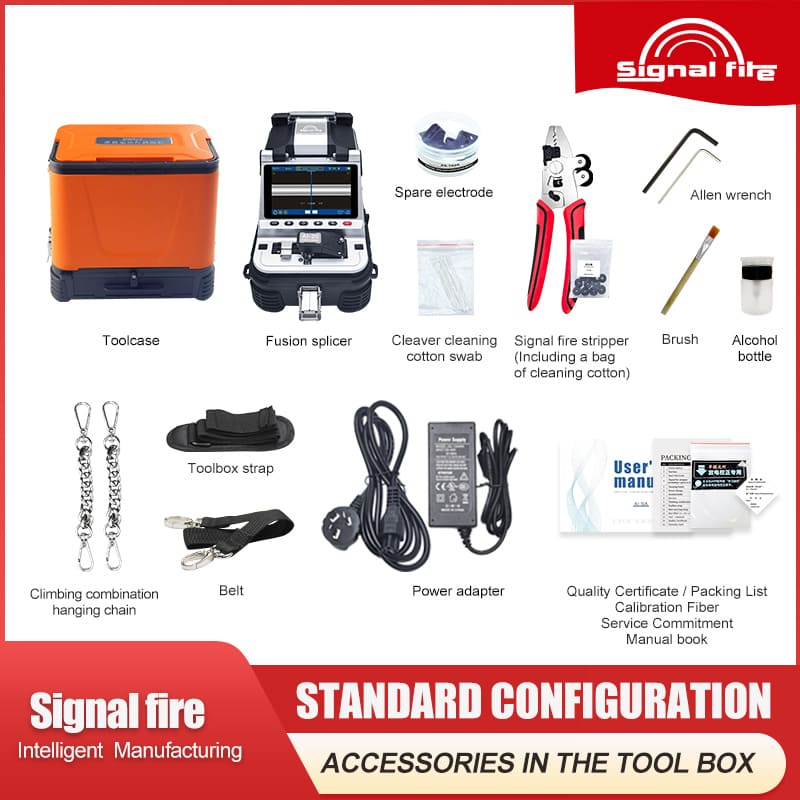

What's Included

🔹 Fusion splicer
🔹 Electric fiber cleaver
🔹 Optical Power Meter (OPM)
🔹 Visual Fault Locator (VFL)
🔹 9-in-1 Signal Fire fiber stripper

Benefits

✅ Reduced equipment weight (4.5 kg total vs. 8–12 kg for separate tools)
✅ Faster job setup and completion
✅ Lower total cost of ownership
✅ Easier transportation to remote sites
✅ Simplified inventory management

Typical Scenario:
A fiber installation contractor previously carried: fusion splicer (2.5 kg), separate OPM meter (1.2 kg), separate VFL (0.8 kg), electric cleaver (1.5 kg) = 6 kg of separate equipment. With AI-20, one compact 4.5 kg case does it all.

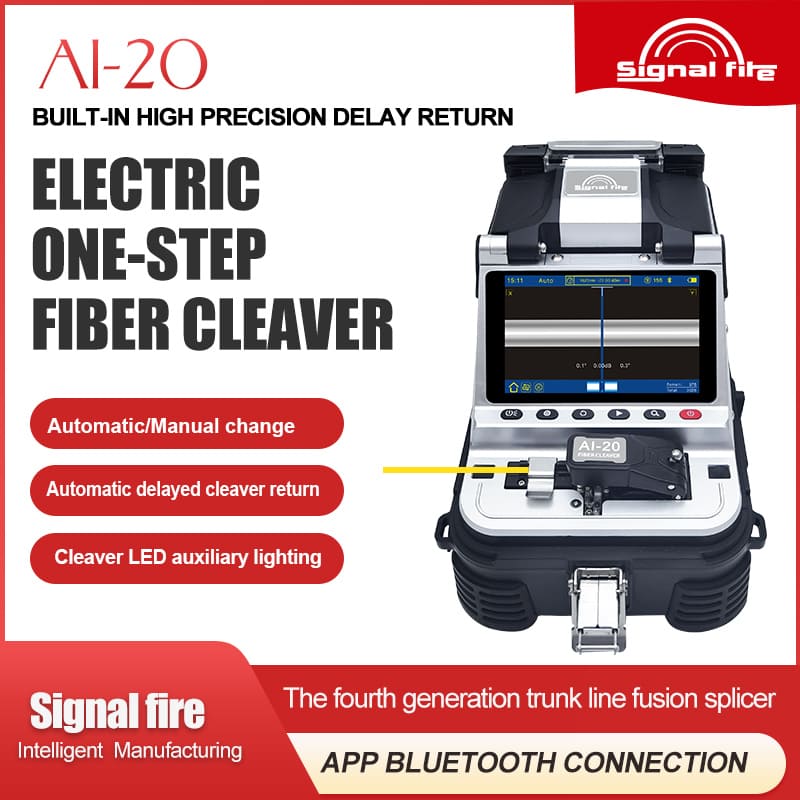

Feature #2: Patented High-Precision Delay Return Electric One-Step Fiber Cleaver

The Technology

Signal Fire's proprietary delayed-return mechanism prevents the traditional problem of mechanical cleavers scratching fiber end faces during return movement. This innovation solved a problem that has plagued fiber technicians for decades.

How It Works

1. Fiber placed and secured in cleaver
2. Blade advances and makes clean cut
3. Intelligent delay (0.2–2.0 seconds, user-configurable)
4. Blade returns only after delay period
5. No scratching of fiber end face

Automatic Blade Management

• Cleaver blades automatically track usage
• After 1,000+ cuts, system alerts operator
• Blades self-identify when dull
• Two consecutive cutting failures trigger blade change alert

Benefits

✅ Eliminates fiber end-face scratching
✅ Reduces splicing loss and rework
✅ Extends blade life
✅ LED auxiliary lighting (app-controlled brightness)
✅ Consistent cutting performance in all conditions

Field Result: Technicians report 30–40% reduction in splicing retries when using AI-20 compared to mechanical cleavers.

Feature #3: Real-Time Luminous Flux Assisted Alignment

What This Technology Does

Continuously monitors optical signals during fiber alignment to identify the lowest-loss alignment point in real-time, then automatically positions fibers for optimal splicing.

How It Improves Your Work

• Reduces Trial & Error: No guessing about fiber positioning
• Minimizes Loss: Finds the true best alignment, not just "good enough"
• Increases Confidence: Visual confirmation of optimal alignment on 5-inch display
• Speeds Productivity: Less rework means more splices per day

Real-World Example:
Two-fiber optical signal analysis shows alignment loss of 1310nm at -15.37dBm. System continuously adjusts fiber position, analyzing loss in real-time. When optimal alignment achieved (loss improves to -14.93dBm), technician executes splice with confidence.

Requirements

Works best with stable optical signal link from front fiber source (typical field conditions).

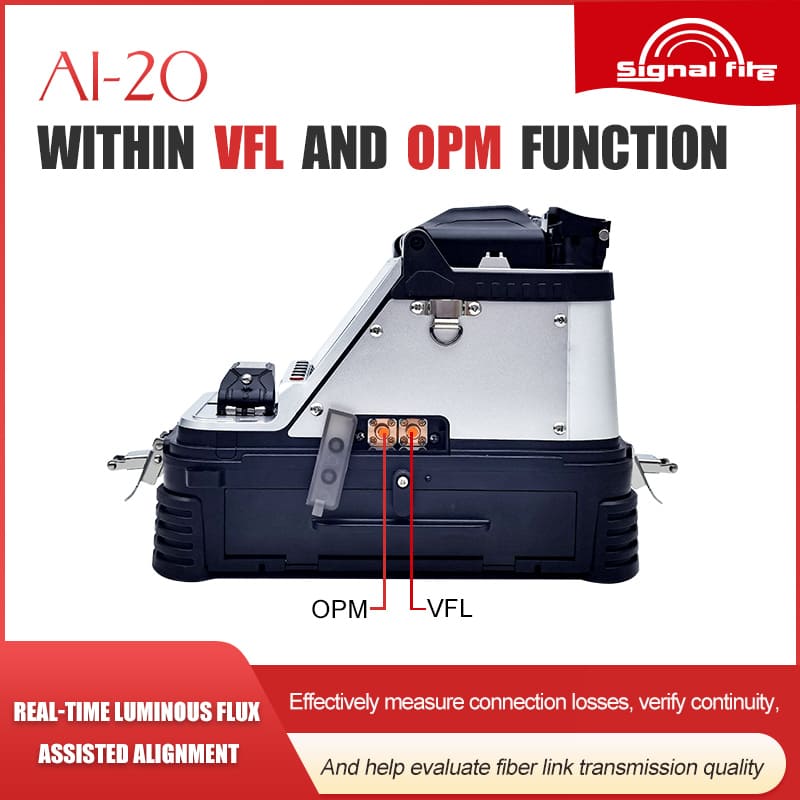

Feature #4: Integrated OPM & VFL Functions

Eliminate Separate Equipment

Previously, technicians needed to carry:

• Separate optical power meter ($800–1200)
• Separate visual fault locator ($300–500)

Now both are built in.

OPM Capabilities (Optical Power Meter)

• 10 switchable wavelengths for comprehensive testing
• Measures from -50 to +30 dBm
• Perfect for pre- and post-splice verification
• Confirms signal strength across entire network

VFL Capabilities (Visual Fault Locator)

• Traces fiber lines up to 10 km
• Identifies breakpoints and damage
• Detects light leakage from connector issues
• Essential for troubleshooting and installation verification

Applications

✓ Test fiber links before splicing
✓ Verify signal strength post-splice
✓ Locate fiber breakpoints
✓ Identify light leakage problems
✓ Confirm installation quality

Feature #5: Compact & Highly Portable Design

Weight & Dimensions

• Total Package: 4.50 kg (9.9 lbs) – lighter than most laptops
• Machine Only: 3.09 kg
• Footprint: Fits in standard equipment bag

Deployment Options

Option 1: Bench + Support Platform (Stationary)
Mount on work surface for consistent lab or office splicing

Option 2: Hanging Chain Combination (Pole Climbing)
Securely attach to utility poles for outdoor installations

Option 3: Hand-Carry Mode (Mobile)
Technician carries in one hand, work proceeds on ground or temporary surface

Option 4: Vehicle-Mounted (Multi-Site Operations)
Transport multiple units in van or truck for crew-based installations

Field Tested Performance

• High-altitude installations (5,000m+)
• Extreme weather (rain, dust, snow)
• Temperature extremes (-15°C to +50°C)
• Wind conditions (up to 15 m/s)

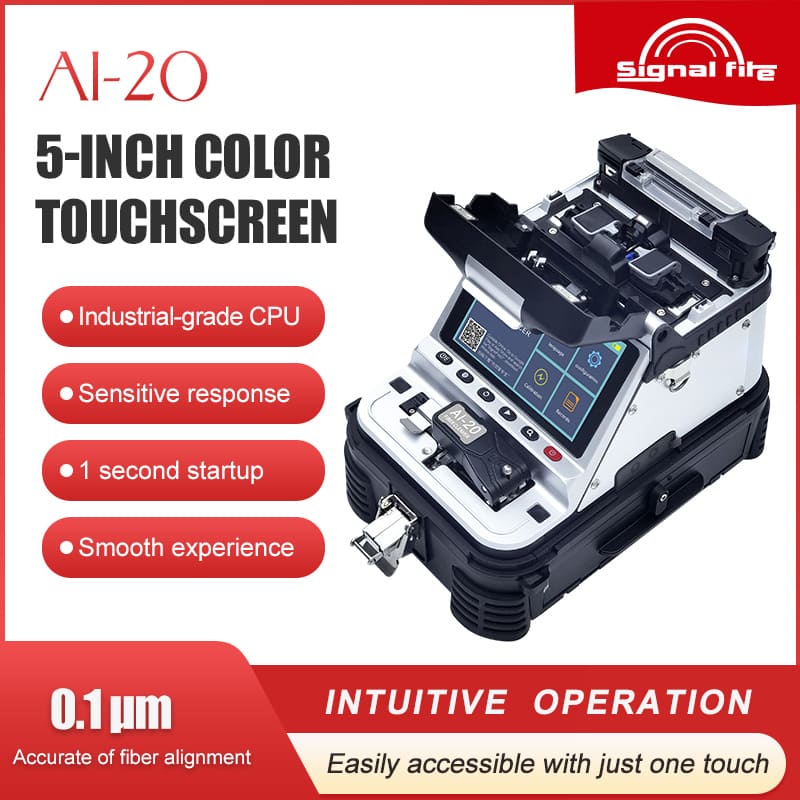

Feature #6: Advanced 5-Inch Color Touchscreen Interface

User Experience

• Intuitive touch-based operation (no complex menu diving)
• Real-time splicing visualization on high-resolution display
• Live fiber core alignment display
• Fusion process animation showing progress
• Real-time loss monitoring during splice

Accessibility

• Glove-friendly interface (works with work gloves)
• Brightness auto-adjusts to ambient light
• High-contrast colors for outdoor visibility
• Touch-responsive even in cold conditions

11-Language Support

Chinese · English · French · Russian · Italian · Ukrainian · Thai · Portuguese · Spanish · Arabic · Polish

Switch languages instantly – perfect for international teams or equipment shared across regions.

Feature #7: Industrial-Grade CPU & Performance

Processing Power

• Industrial-temperature processor rated for -15°C to +70°C
• Advanced algorithms optimized for fiber characteristics
• Real-time image processing at 320x magnification
• Simultaneous monitoring of multiple data streams

Performance Metrics

• 1-Second Startup: Enter working mode immediately
• Responsive Interface: No lag, smooth screen interaction
• Continuous Operation: Runs reliably through 240+ splices per charge
• Robust Design: Tested in extreme field environments

Why This Matters

Field technicians don't have time for slow equipment. The AI-20's industrial-grade processor ensures responsive operation throughout the workday, even after hundreds of splicing cycles.

Feature #8: Complete 9-in-1 Signal Fire Fiber Stripper

Included Tools

What This Eliminates

No need to purchase separate stripping tools – this complete set handles every common cable type:

• 5G FTTH deployment cables
• Traditional FTTH drop cables
• Multi-layer armored cables
• Bare fiber with protective sheaths

Feature #9: Extended Battery Life for Full-Day Field Operations

Capacity Details

• Battery: 7800mAh high-capacity lithium
• Splicing Capacity: 240+ cores per full charge
• Typical Field Use: 8–10 hours continuous operation
• Charge Time: ≤3.5 hours (dual charging channel)

Dual Charging Strategy

Channel 1: Charge machine while operating
Channel 2: Charge spare battery separately

Result: Zero downtime for full-day and multi-day projects

Winter Preheating Function

Automatic 6-second preheat cycle activates upon successful splice completion, ensuring optimal performance in cold environments without operator intervention.

Real-World Scenario

Field crew starts work at 8 AM with full charge. By 3 PM, after splicing 180 cores, battery still has 25% capacity remaining for evening wrap-up work. One-hour charge cycle at lunch means full capacity for afternoon operations.

Feature #10: Smart Bluetooth Connectivity & App Control

SignalFire2 Mobile App Features

1. Splicing Record Management

• View complete history of every splice performed
• Filter by date, location, operator, fiber type
• Export data for reports and audits
• Access records from any device

2. Equipment Parameter Control

• Change language instantly
• Adjust heating time (5–30 seconds)
• Select fiber alignment mode (automatic vs. manual)
• Configure cleaver delay (0.2–2.0 seconds)
• Set LED brightness for cleaver lighting

3. Equipment Management & Monitoring

• Track total usage time across fleet
• Monitor total number of splices performed
• Schedule preventive maintenance alerts
• Compare performance across multiple units

4. Firmware Updates

• Download latest software via Bluetooth
• Install updates without visiting service center
• Automatic compatibility checking
• Rollback capability if needed

5. Remote Fleet Management (Enterprise)

• Managers monitor all company equipment in real-time
• Performance analytics and productivity reports
• Multi-user access with role-based permissions
• Usage trends and predictive maintenance

Benefits

✅ No equipment downtime for software updates
✅ Operators can customize settings on the fly
✅ Managers gain visibility into field operations
✅ Historical data supports quality audits
✅ Predictive maintenance reduces breakdowns
