Signal Fire AI5 PRO Mini Handheld Fiber Optic Splicer – Six Motor with 0.5μm Alignment

Q: What is the lead time after placing an order? What shipping methods are supported?

In-stock orders are typically shipped within 3~5 business days after payment. Larger custom orders (e.g., OEM packaging) have a lead time of 15~20 business days. We support DHL, FedEx, UPS express, as well as sea freight, air freight, full container or LCL shipments. We also accept customer-specified forwarders for pick-up. Real-time tracking numbers will be provided.

Q: How does the AI5PRO compare with previous models or other brands like Inno, Fujikura, and Sumitomo?

The AI5PRO features a six-motor system with 0.5μm high-precision alignment, achieving splice loss comparable to high-end Japanese models but at a more competitive price. Its 3-in-1 holder requires no tools for changing and works with bare fiber, pigtails, drop cables, etc. The built-in 5200mAh battery supports 160 splicing & heating cycles – better than most peer products.

Q: Are there tiered pricing for bulk purchases?

For distributors, engineering companies, and group purchases, we offer competitive tiered pricing. The larger the order quantity, the better the unit price.Please contact our sales team for details.

Q: Are you an official authorized distributor of the Signal Fire brand? Can you provide authorization proof?

Yes, we are an official authorized distributor of Signal Fire with a valid brand authorization certificate. Customers may request a scanned copy of the authorization document from our sales team. We guarantee that all AI5PRO fiber optic splicers are genuine products with full warranty and after-sales support.

Six Motors Performance
Core Alignment Technology
50% Efficiency Increase
Fast 3.0h Charging
Versatile Fiber Support (SM/MM/DS/NZDS)
High-Resolution 5" LCD
Night Construction Lighting
Smart APP & Cloud Storage

Share on

Product Description

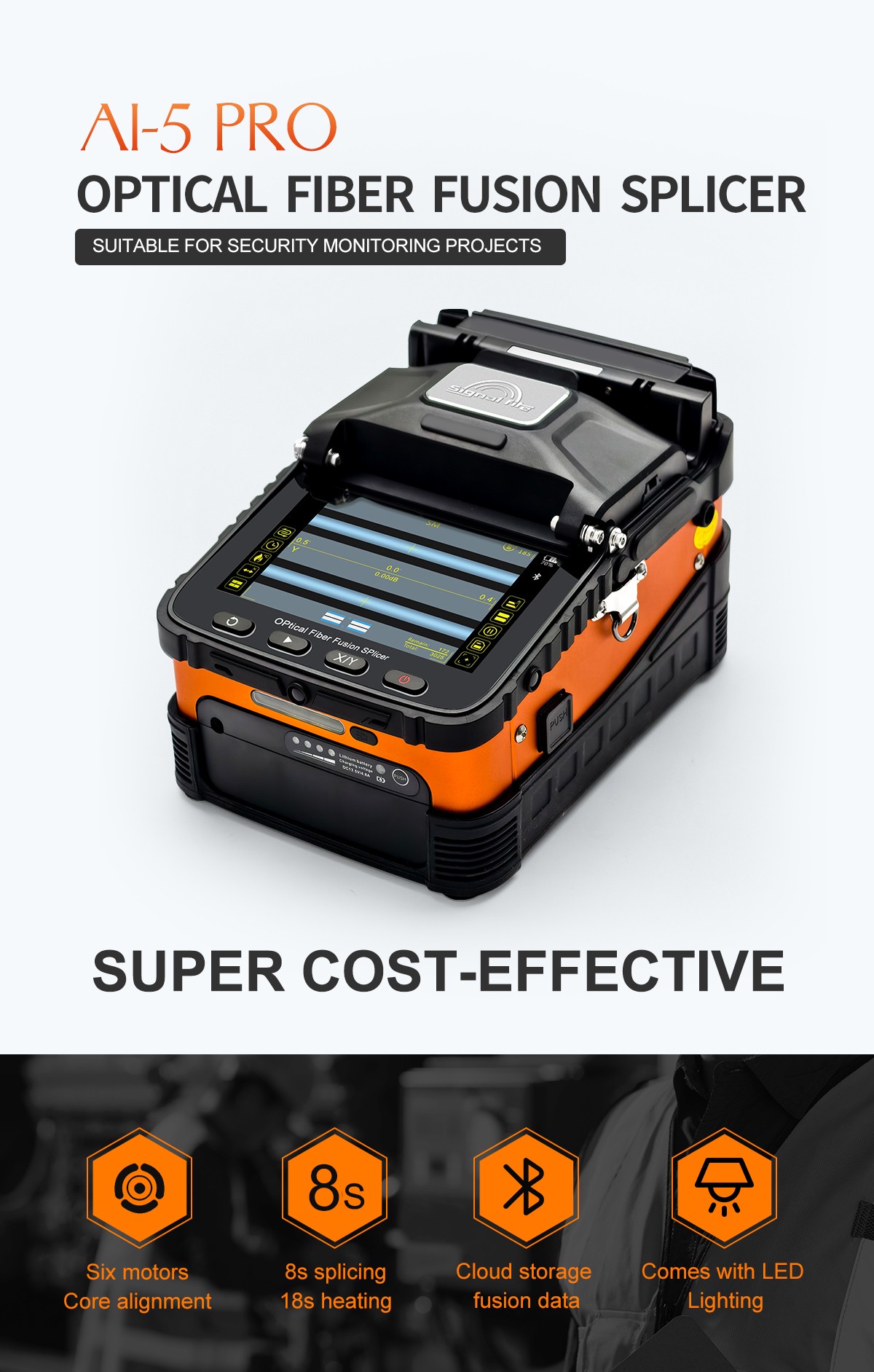

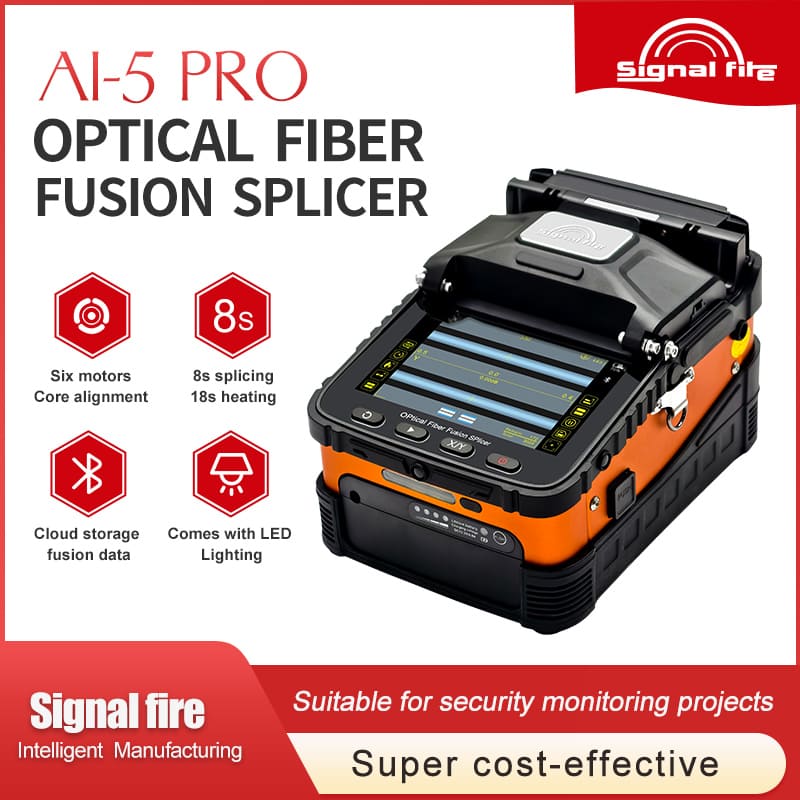

AI-5 PRO Optical Fiber Fusion Splicer

Suitable for Security Monitoring Projects — Super Cost-Effective

Six Motors Core Alignment: High-precision fiber alignment up to 0.5um
Ultra-Fast Operation: 8s lightning-fast splicing & 18s highly efficient eco-heating
Smart Cloud Storage: Synchronize and upload fusion data to cloud storage seamlessly

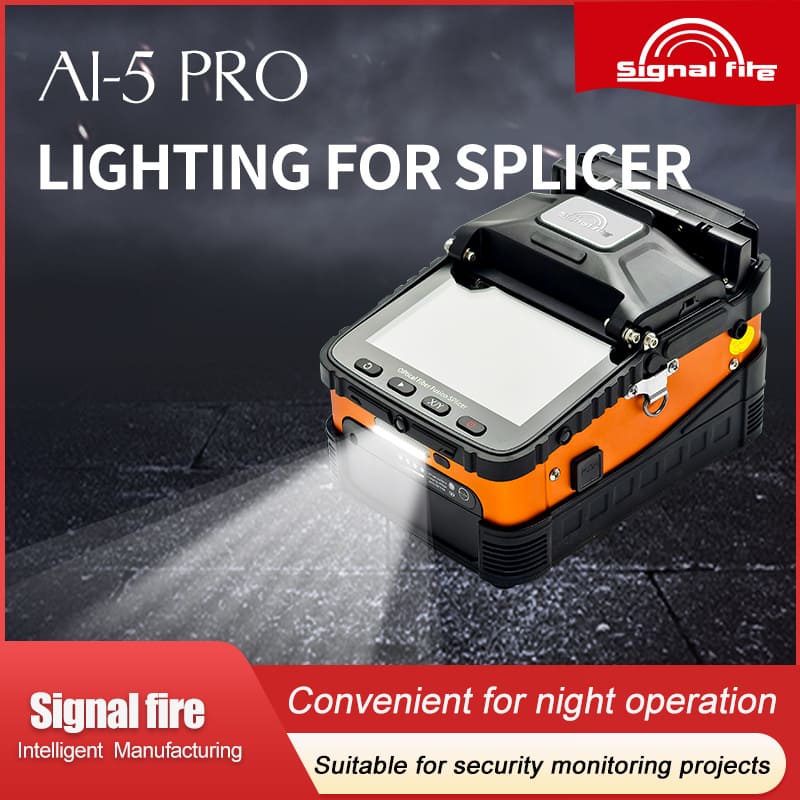

Built-in LED Lighting: Bright independent auxiliary illumination, designed easily for night or dark environment operations

Key Features

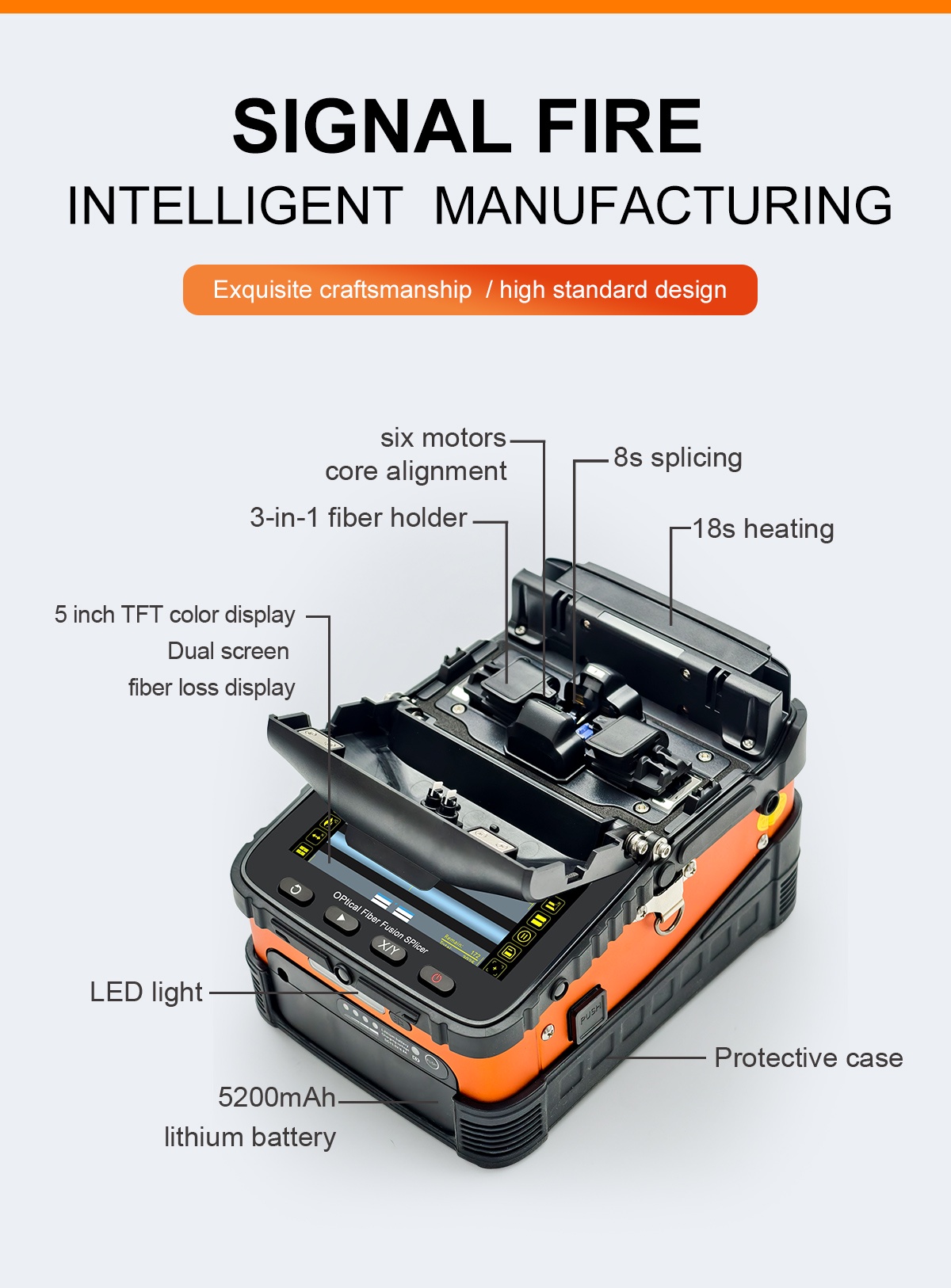

1. Premium Hardware & Structural Design

Exquisite Craftsmanship & High Standard Design
Robust Metal Body & Beautiful Details: Industrial-grade durability featuring shock-absorbing protective rubber cases on all corners
Premium Interactive Display: ai5pro 5-inch TFT high-resolution color display featuring dual-screen presentation options with clear real-time fiber loss display
Comprehensive Interactive Keypad: Streamlined layout including quick reset, automated fusion, X/Y axis manual switching, and responsive power controls

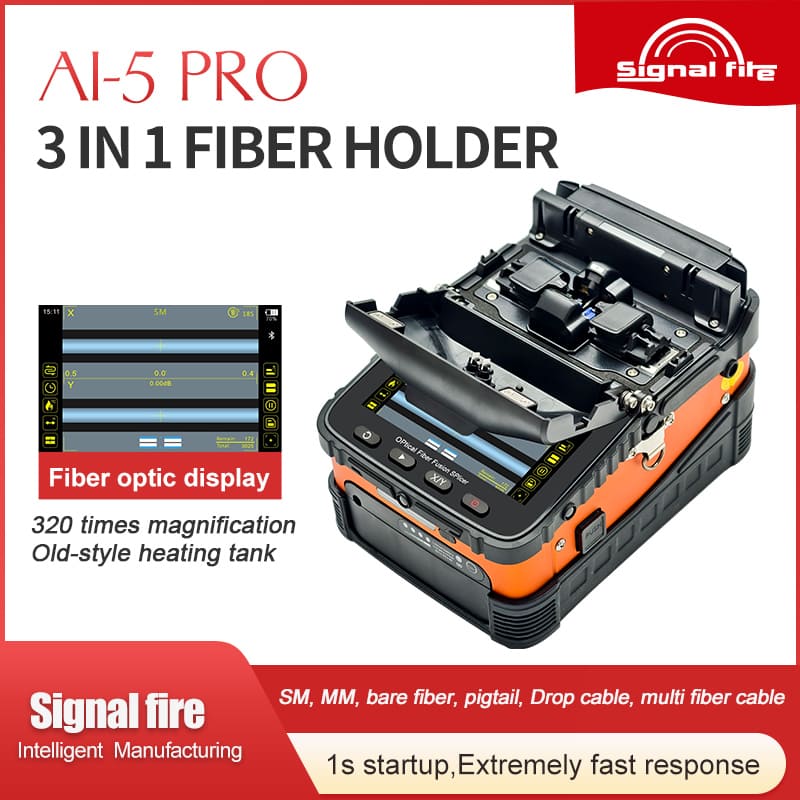

2. All-in-One /3-in-1 Versatile Fiber Holder

All-in-One Multi-functional ClampsFully compatible with single-mode (SM) and multi-mode (MM) fibers, accommodating a massive array of telecommunication cables:

Jumper Fiber / Pigtail
Drop Cable (FTTH)
Bare Fiber
Multi-fiber Cable

3. Global Market Compatibility

11 Languages Switch FreelyMultilingual settings designed to cover international markets worldwide:

Chinese / English / Spanish / French / Italian/ Russian / Arabic / Portuguese / Polish / Thai / Ukrainian

4. Removable Modular Battery System

5200mAh lithium battery (removable)
Charging time ≤3.0 hours
In full state: 160 cores can be continuously fused and heated
Press to pop up the battery; charging channel; battery can be removed and charged separately
Charging port: Input voltage 13.5±0.5V, Input current 4.8A
Power indicator light; Charge indicator light (turns off when fully charged)
Press to check power level

5.Technical Specification

Focus mode	ai5pro Six motors (accurate of fiber alignment: 0.5μm)
Fiber alignment	Core/cladding
Splicing time	8S
Heating time	18S
Heating mode	Automatic heating (Preheating)
Applicable Fibers	Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber.
Splice Loss	0.02dB (SM)、0.01dB (MM)、0.04dB (DS/NZDS)
Control technology	Real-time control and calibration of fusion ARC
Return loss	Better than 60DB
Fiber diameter	Cladding Diameter: 80-150μm Coating Diameter: 100-1000μm
Fiber Leave Length	Coating less than 250μm: 8-16mm Coating less than 250-1000μm: 16mm
Built-in lighting	easy for night operation
Tension Test	Standard 2N
Fiber holders	3 in 1 fiber holder, SM, MM, bare fiber, pigtail, Drop cable, multi fiber cable
Magnification	320x (X or Y axis single display), 160x (X and Y axis dual display)
Screen	5 inch TFT color display
Splicing Mode	Normal / high precision splicing
Splicing record storage	Synchronize to the phone, the server to cloud storage unlimited
Built-in battery	5200mAh high-capacity lithium battery, charging time ≤ 3.0 hours, continuous splicing and heating about 160 times
Power supply	Input AC100-240V 50/60HZ, output DC13.5V/4.8A, the current power mode can be identified, real-time detection of battery power
Operating Conditions	Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ~ 5000m Resist max. wind speed: ≤ 15m/s
Shrinkable tube	60mm、40mm

6. Dimensions & Weight

Item	Measurement
Machine dimensions (approx.)	122mm × 190mm / 225mm × 198mm / 350mm × 210mm × 360mm (based on diagram)
Machine weight (with battery)	1.91kg
Machine weight (without battery)	1.55kg
Toolbox weight	3.50kg
Total weight (including machine and accessories)	4.20kg

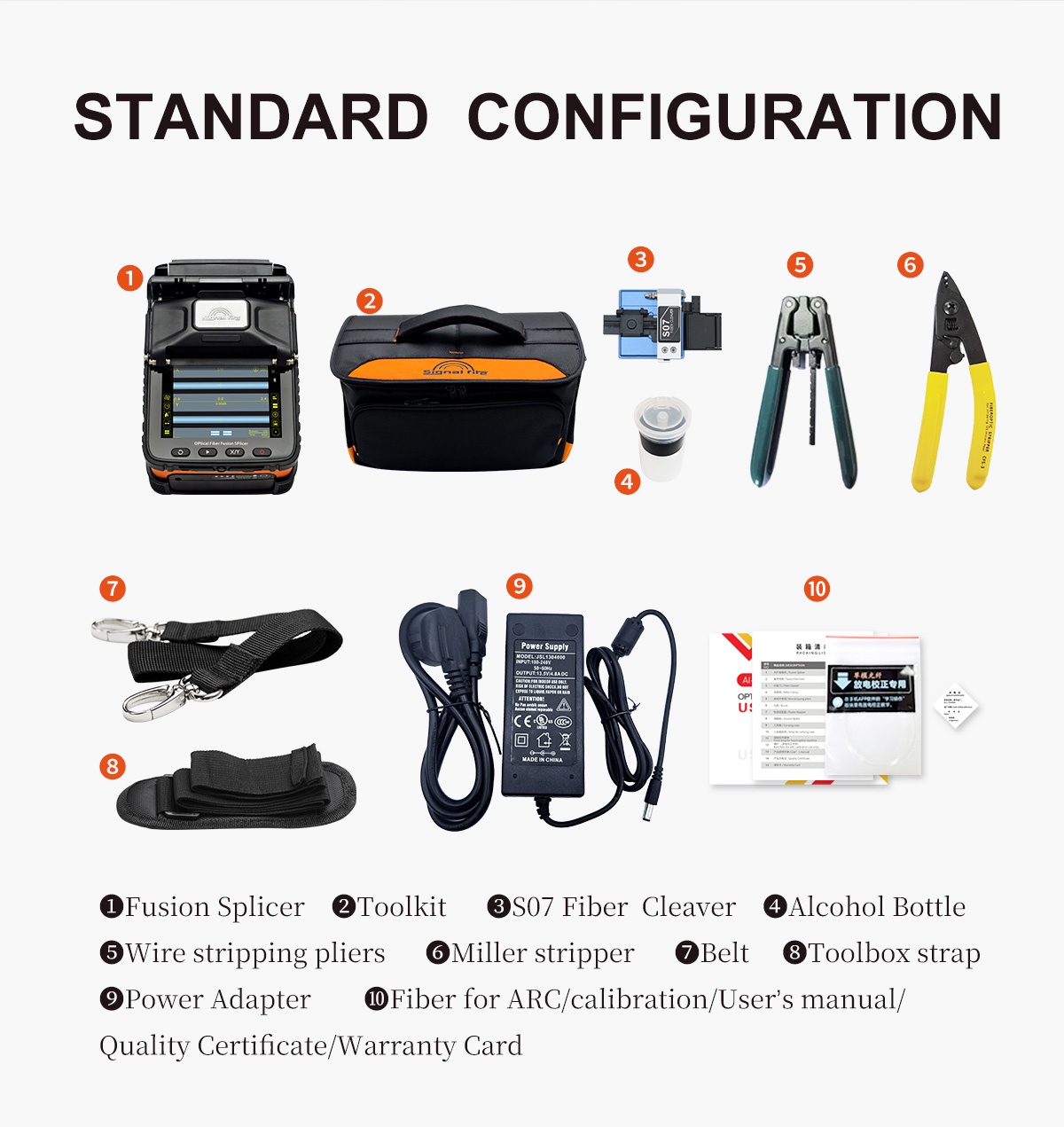

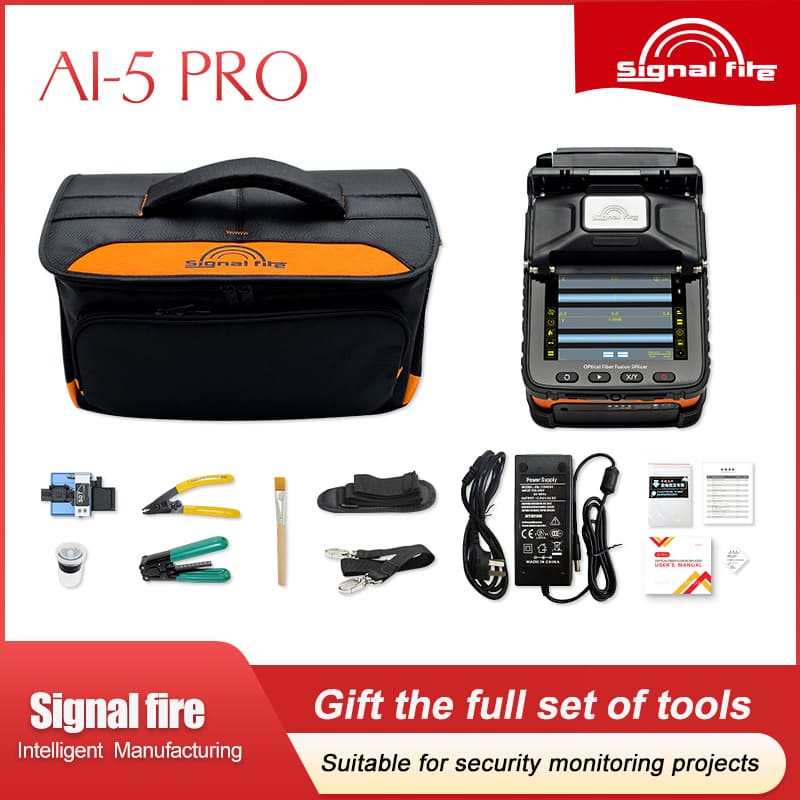

7. Standard Configuration

Fusion splicer
Toolkit
S07 Fiber Cleaver
Alcohol Bottle
Wire stripping pliers
Miller stripper
Belt
Toolbox strap
Power Adapter
Fiber for ARC/calibration / User’s manual / Quality Certificate / Warranty Card

8. Service Commitment

Three years warranty – the following circumstances are not within the scope of this provision:

Except for the cleaver, miller clamp, stripping pliers, fiber holders and other tools whose life depends on the frequency of use and the use of the environment. Also electrodes are consumable material which are not in the warranty.
Battery and power adapter are warranted for one year. They are covered by free warranty if damaged or cannot be charged within one year.

FAQ

Q：

What is the lead time after placing an order? What shipping methods are supported?

A：

In-stock orders are typically shipped within 3~5 business days after payment. Larger custom orders (e.g., OEM packaging) have a lead time of 15~20 business days. We support DHL, FedEx, UPS express, as well as sea freight, air freight, full container or LCL shipments. We also accept customer-specified forwarders for pick-up. Real-time tracking numbers will be provided.

Q：

How does the AI5PRO compare with previous models or other brands like Inno, Fujikura, and Sumitomo?

A：

The AI5PRO features a six-motor system with 0.5μm high-precision alignment, achieving splice loss comparable to high-end Japanese models but at a more competitive price. Its 3-in-1 holder requires no tools for changing and works with bare fiber, pigtails, drop cables, etc. The built-in 5200mAh battery supports 160 splicing & heating cycles – better than most peer products.

Q：

Are there tiered pricing for bulk purchases?

A：

For distributors, engineering companies, and group purchases, we offer competitive tiered pricing. The larger the order quantity, the better the unit price.Please contact our sales team for details.

Q：

Are you an official authorized distributor of the Signal Fire brand? Can you provide authorization proof?

A：

Yes, we are an official authorized distributor of Signal Fire with a valid brand authorization certificate. Customers may request a scanned copy of the authorization document from our sales team. We guarantee that all AI5PRO fiber optic splicers are genuine products with full warranty and after-sales support.
