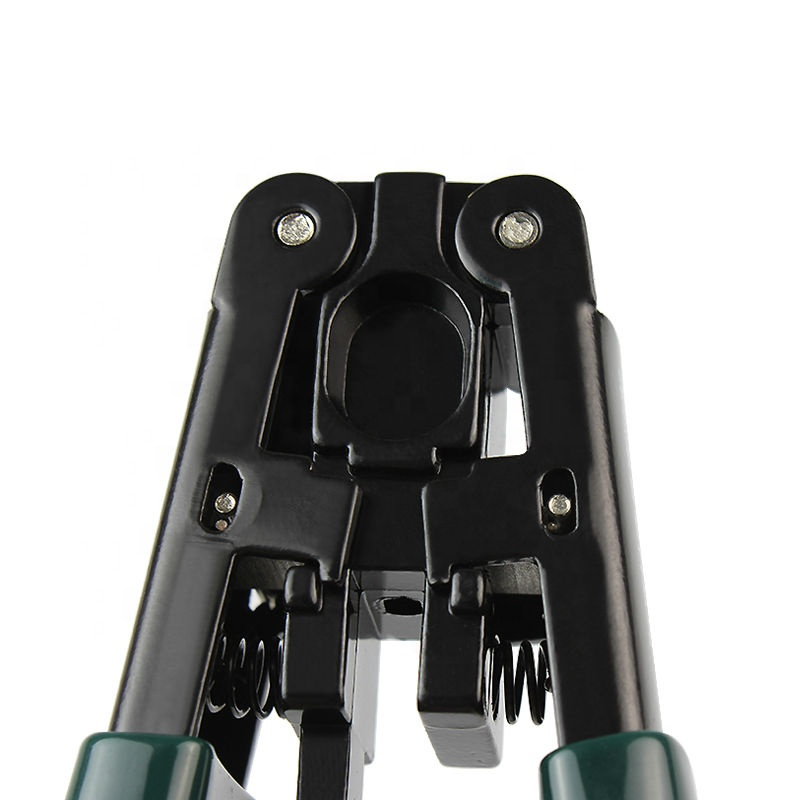

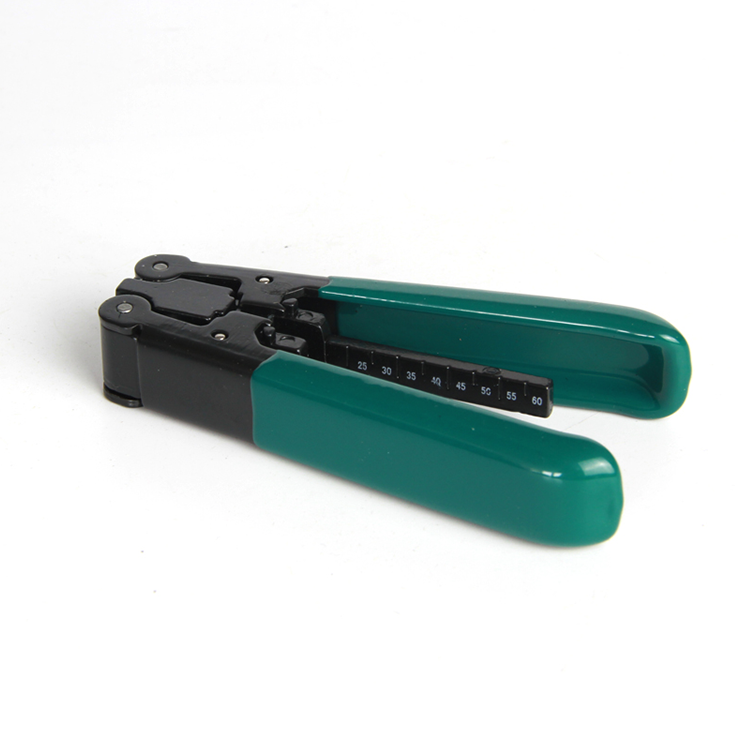

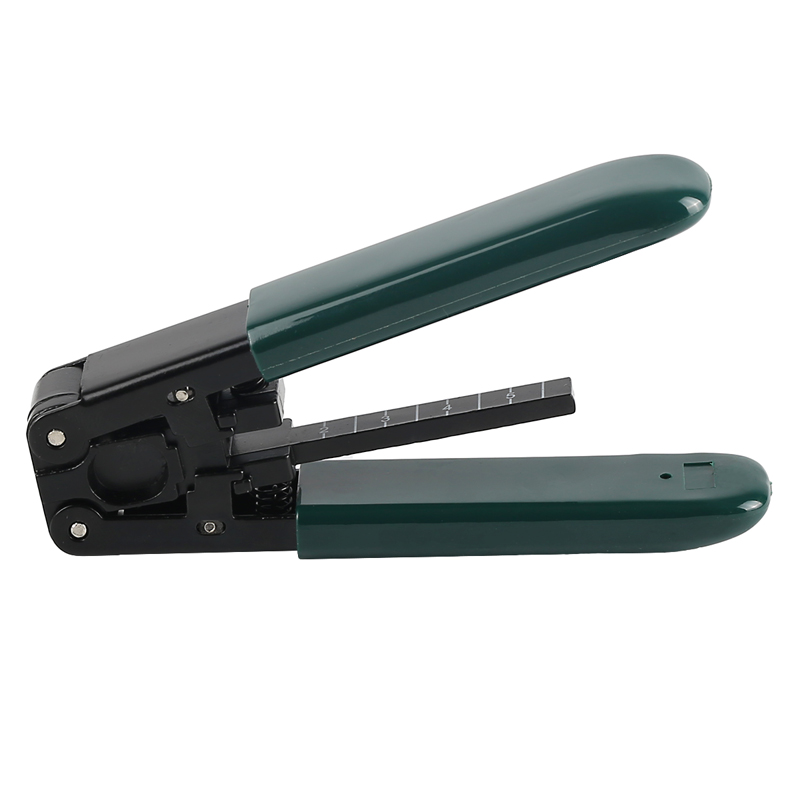

FTTH Drop Cable Stripper for Controlled Jacket and Coating Removal
FTTH drop cable stripper plier is a layer-preparation tool for 2.0–3.0 mm indoor drop cable, 900 µm buffer and 250 µm coating workflows when the selected two-hole or three-hole geometry matches the cable. Its purpose is to open the specified jacket, tube, buffer or coating without damaging the next layer; correct results depend on matching the blade geometry to the real cable construction.
This model uses factory-set multi-hole stripping. Two-hole and three-hole versions are different tools. The notch sequence, blade gap and supported coating layers must be confirmed on the approved sample; do not assume one visually similar plier strips every drop-cable construction.
Best Fit and Tool Selection
Preparation step | Control point | Reason |
Identify cable layers | Confirm jacket, armour, strength member, buffer/tube and coating dimensions | Prevents using a coating stripper on a cable layer or cutting hidden fibres. |
Set or select blade/notch | Use a sacrificial sample and the model-specific channel | Cable diameter alone does not define safe cutting depth. |
Stabilize cable | Keep the cable straight and free of twist or axial load | Ovality and side load change blade penetration. |
Strip/slit | Use one controlled motion in the intended direction | Repeated sawing can score tubes, fibre or conductors. |
Inspect | Check every exposed layer before continuing | White stress marks, scoring or flattened tubes are rejection signals. |
Clean and store | Remove jacket debris, lock/cover the blade and use the case | Protects operators, blade edge and other precision tools. |
Cable Construction and Layer Compatibility
A safe selection requires more than outside diameter. Buyers should provide a cable cross-section or sample showing jacket material and thickness, armour or strength member, ripcord, tube size, buffer/coating diameter and any copper conductors. Drop cable, round duct cable, loose tube and 250 µm coating require different cutting geometries.
Technical Specifications
Parameter | Specification / procurement note |
Product Model | 2-Hole / 3-Hole Green Drop Cable Stripper |
Tool Type | Professional Drop Cable Stripper / Fiber Optic Stripping Pliers |
Stripping Function (2-Hole) | 1st hole: 2.0-3.0mm drop cable outer jacket;
2nd hole: 0.9mm pigtail buffer / 250μm fiber coating |
Stripping Function (3-Hole) | 1st hole: 2.0-3.0mm drop cable outer jacket; 2nd hole: 0.9mm pigtail buffer;
3rd hole: 250μm fiber coating → 125μm bare fiber |
Compatible Fiber & Cable | 2.0-3.0mm drop cable, 0.9mm pigtail, 250μm coated fiber,
125μm bare fiber, single-mode & multi-mode fiber Verify against the actual cable cross-section and jacket/tube wall thickness before volume use. |
Blade Material | High-carbon steel, hardened & tempered, precision-ground, anti-rust & wear-resistant |
Adjustment | Factory preset, no manual adjustment required, easy to use for novices |
Safety Design | Built-in safety lock, keeps tool closed when not in use, prevents accidental injury and easy storage |
Handle | Ergonomic green handle, wrapped with non-slip rubber, comfortable grip, reduces hand fatigue |
Overall Length | 160-170mm (6.3-6.7in), compact size for easy carrying |
Net Weight | Approx. 110-120g (3.9-4.2oz), lightweight for long-time field operation |
Operating Temperature | -40°C to +80°C, wide temperature adaptation, suitable for harsh outdoor environments |
Certifications | CE/RoHS documentation availability is model-specific and must be confirmed for the exact supplied variant. |
Warranty Period | 1 year (tool body); blades (consumables) excluded Final terms and consumable exclusions follow the signed quotation. |

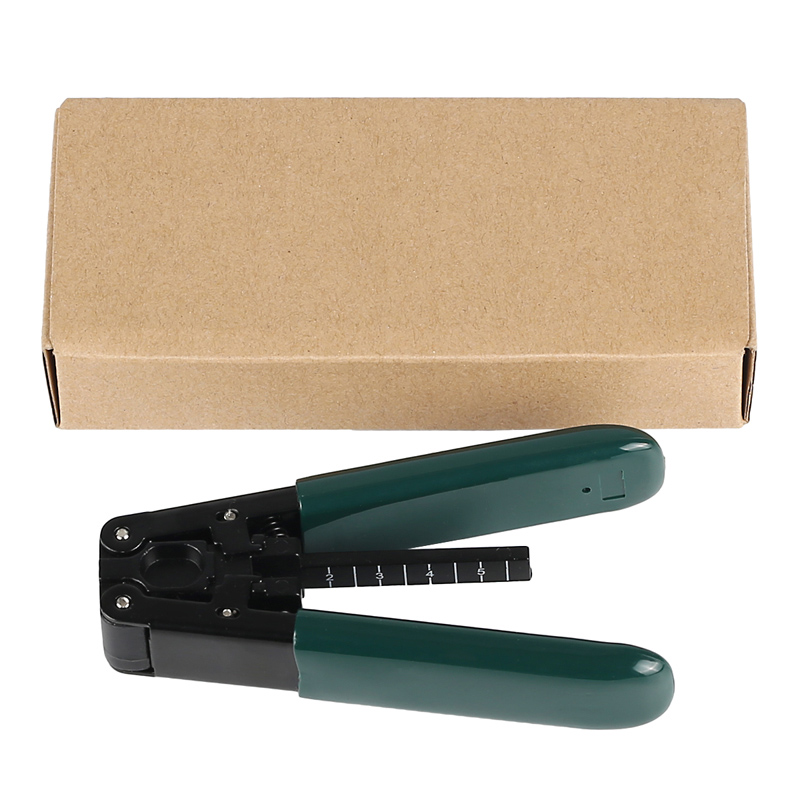

Standard Package | 1 × Green Drop Cable Stripper, 1 × User Manual, 1 × Plastic Storage Box Packing and spare-blade content are confirmed on the purchase order. |
How to Set Cutting Depth or Select the Correct Notch
For an adjustable tool, begin shallower than the measured wall thickness and increase in small steps on a sacrificial length until the jacket separates without marking the next layer. For a factory-set multi-hole stripper, use only the notch specified for that layer and pull in the designed direction. A factory preset reduces adjustment but does not eliminate cable-compatibility testing.
Application Boundaries
A jacket slitter is not a fibre cleaver, and a 250 µm coating stripper is not an armour cutter. Do not allow the blade to contact glass, metallic strength members or live conductors unless the model is specifically designed and approved for that layer. Replace any fibre showing scoring, whitening, bending damage or coating tears.
Common Stripping Failures and Prevention
Failure | Likely cause | Corrective action |
Fibre or tube damage | Blade too deep, wrong notch, cable ovality or hidden element | Stop; adjust on a sacrificial length and map the cable cross-section before continuing. |
Jacket not fully opened | Blade too shallow, worn edge or hard jacket | Increase depth gradually or replace the approved blade; do not force the tool. |
Spiral/uneven cut | Cable twist, poor alignment or unstable pull direction | Straighten and support the cable; maintain axial tool travel. |
Coating residue | Wrong notch, contaminated blade or aged coating | Clean the blade channel and verify coating diameter and temperature condition. |
Bare glass scratches | Tool contacted glass or stripping motion was uncontrolled | Reject the prepared fibre, re-strip and inspect the correct precision notch. |
Short blade life | Dirty cable, armour contact or incorrect application | Use the tool only on specified layers and keep a blade replacement log. |
Pre-shipment Quality and Acceptance Plan
LinkFiber can qualify the exact tool and blade against a buyer-supplied cable sample. A practical inspection records cable construction, temperature, notch/depth setting, strip length, required force, layer damage, blade condition, safety-lock function and package contents across a representative sample of units.
- Approve the exact tool version and blade code.
- Test every required cable layer on representative production cable.
- Set acceptance criteria for clean opening and zero visible damage to the next layer.
- Verify spare blades, adjustment tool, guard/lock and storage case.
- Record lot, operator, cable sample and inspection result.
- Use gloves and eye protection; dispose of glass and blade waste safely.
B2B Buyer Guide: Information Required for an Accurate Quote
Provide cable type, cross-section, outside diameter, jacket/tube material and wall thickness, fibre or tube count, target layer, strip/slit direction, daily workload, quantity, destination and private-label needs. For field kits, list the cleaver, stripper, cleaning materials and spare blades required per technician.
MOQ, Samples, Lead Time and Packing
Commercial item | Standard B2B arrangement |
MOQ | Project-based quantity; trial and customized quantities can be discussed |
Samples | Available on request for cable-layer compatibility testing |
Lead time | Normally 5–10 days after model and accessory confirmation |
Packing | Safety lock or blade guard, spare blade where specified, manual, storage case and export carton |
Customization | Logo, label, colour, blade kit, manual language, inspection report and tool-set packing |
Documents | Exact-model datasheet, packing list and lot inspection records by order; compliance evidence must match the supplied variant |
Related Fiber Installation Tools
Compare the complete Cable Stripper range and combine it with Fiber Cleavers or other Fiber Optic Installation Tools. LinkFiber can build a cable-specific tool set under one approved packing list.
