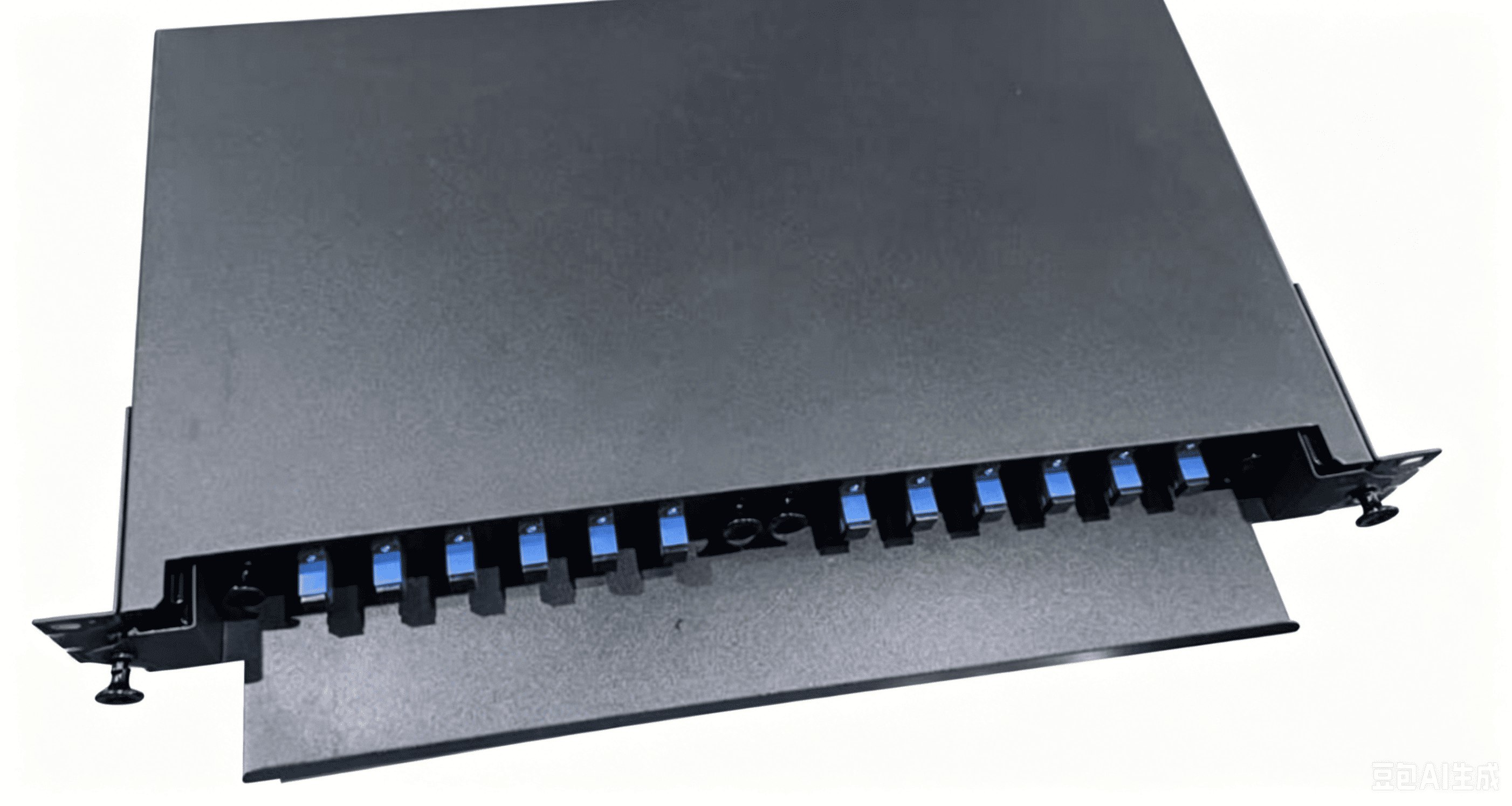

LF080 OTB Sliding Fiber Optic Terminal Box Patch Panel

Available Specifications:

Capacity: 4/8/12/24/48/96/144 Cores

Customization: OEM/ODM colors, branding/logos, and packaging

Product Description

The FTB Series Fiber Optic Terminal Box is a premium industrial-grade solution for fiber termination, splicing, storage, and distribution. Designed for FTTH, FTTO, data centers, and telecom networks, it provides a highly secure and organized environment for critical optical connections.

Key Features

Heavy-Duty 1.2mm Galvanized Cold-Rolled Steel: superior structural durability and physical protection, anti‑aging and anti‑corrosion, ensuring long-term reliability and secure housing for your fiber links in demanding deployment scenarios.
All‑in‑one design – Termination, splicing, storage and distribution in a single compact unit.
IP65 rated – Waterproof, dustproof, and moisture‑resistant for indoor/outdoor use.
Wide compatibility – Supports 4 to 144 cores, SM/MM fibers, SC/LC/FC adapters (UPC/APC), and various drop cables.
Flexible Installation - Supports Fiber Termination Box Wall Mount applications or standard 19‑inch Rack Mount Patch Panel configurations.
Tool‑free access – Snap‑on cover and removable splice tray for quick installation and maintenance.
Fiber protection – Built‑in storage slots and cable anchors ensure bending radius ≥30mm, preventing micro‑bending loss.
Space‑saving – Compact dimensions fit easily into tight spaces.

Detailed Technical Specifications

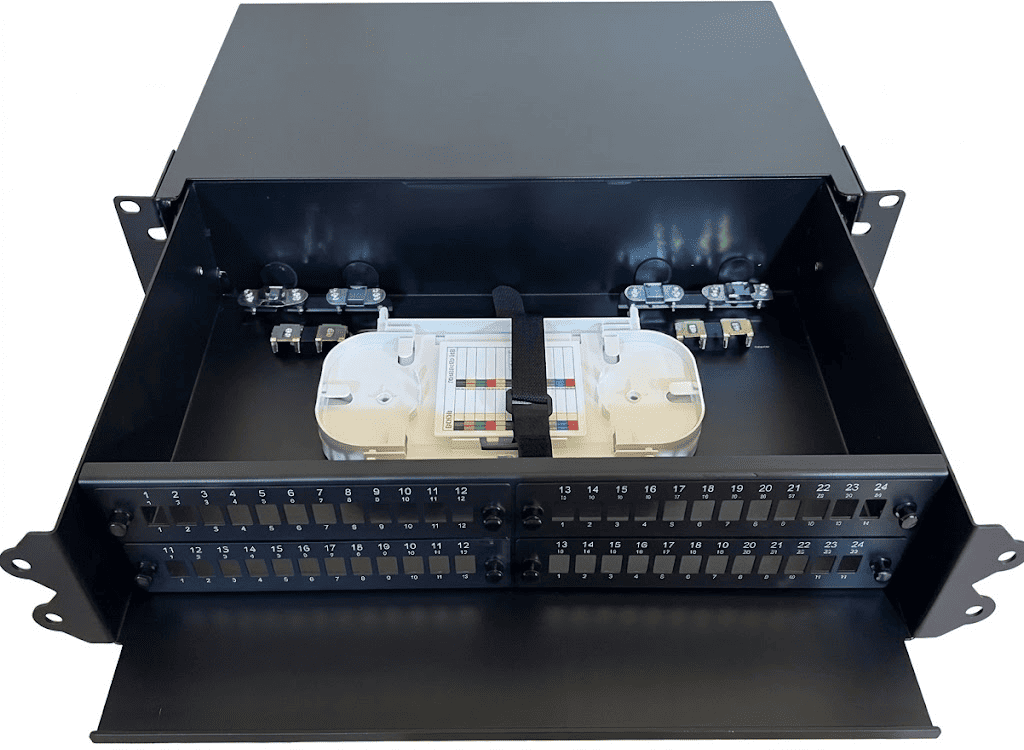

Product Model	FTB Series (FTB-4/FTB-8/FTB-12/FTB-24/FTB-96/144)
Product Type	Professional Fiber Optic Terminal Box / Fiber Patch Panel
Core Capacity	Optional: 4/8/12/24/96/144 Cores (Single-Mode/Multi-Mode)
Compatible Adapter Type	SC, LC, FC (UPC/APC), Interchangeable
Applicable Fiber Type	SM/ MM Fiber; 250μm/900μm Tight-Buffered Fiber; 3.1×2.0mm Drop Cable
Fiber Bending Radius	≥30mm (Static); ≥40mm (Dynamic)
Protection Level	IP65 (Waterproof, Dustproof, Anti-Moisture)
Body Material	1.0-1.2mm Galvanized cold-rolled steel; ABS/PC Engineering Plastic, Anti-Aging, Anti-Corrosion
Fastener Material	Stainless Steel, Anti-Rust, Corrosion-Resistant
Splice Tray	Integrated Removable Splice Tray, Heat-Shrinkable Sleeve Compatible
Installation Method	Wall-Mounted, Rack-Mounted (19-inch Standard Rack Optional)

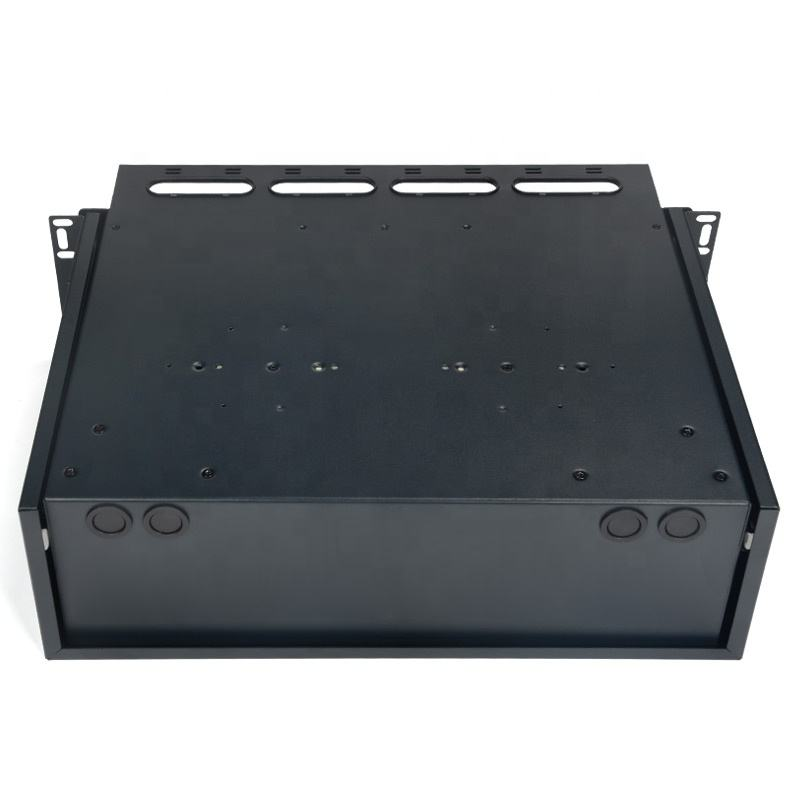

Cable Inlet/Outlet	2-4 Inlet/Outlet Ports, Adjustable Sealing Ring for φ8-20mm Cable
Operating Temperature	-40°C to +60°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5%~95% (No Condensation)
Color	White (Standard), Customizable According to Requirements
Certifications	CE, RoHS, IP65 Certification
Warranty Period	1 Years (Device Body); Consumables Excluded
Standard Package	1×Fiber Optic Terminal Box, N×Removable Splice Tray, 1×Sealing Ring Set, 1×Stainless Steel Fastener Set, 1×Mounting Bracket, 1×Cleaning Kit, 1×User Manual, 1×Warranty Card

Product Dimensions & Weight

Core Capacity	Dimensions (mm)	Approx. Net Weight

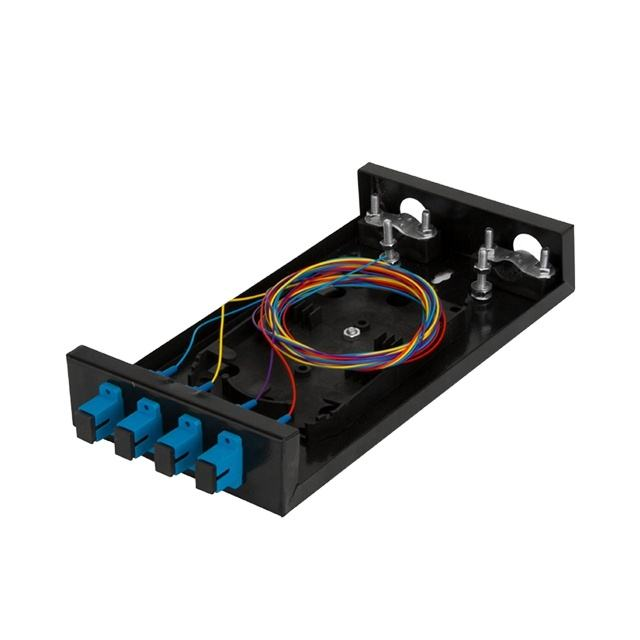

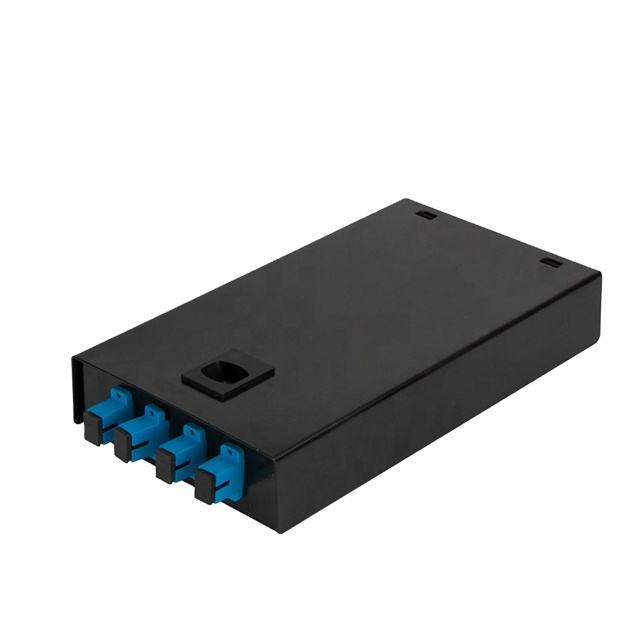

4 / 8 core	180× 150× 60	1.2kg ~ 1.5kg

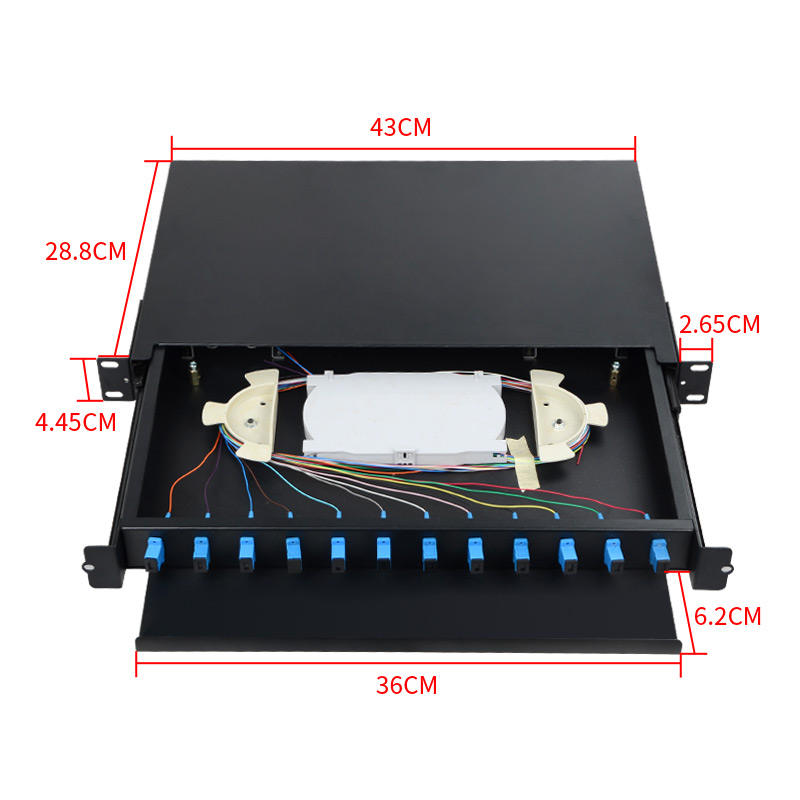

12/24 Core	430 × 300 × 44	2.1kg ~ 2.2kg

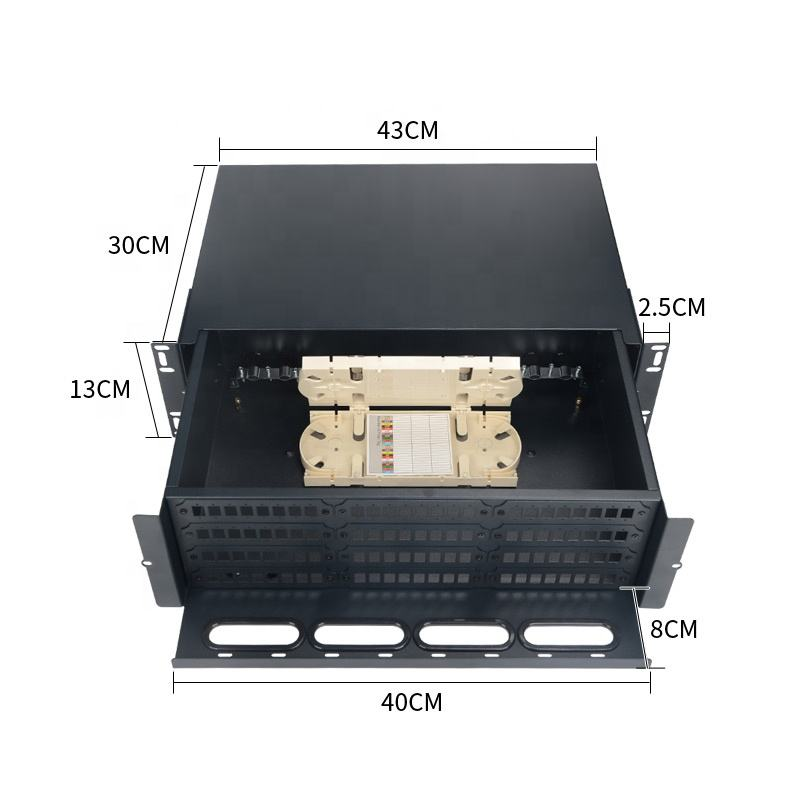

48 Core	430× 300× 86	4.8kg ~ 5kg

Typical Applications

FTTH / FTTO User Terminals& Indoor Fiber Optic Box deployments
Data Centers & Telecom Central Offices using Rack Mount Patch Panels.
Residential & Office Building Structured Cabling
Video Surveillance & Security System

Standard Package Includes

1 × Fiber Optic Terminal Box

N × Removable Splice Tray(12core) & Mounting Bracket

1 × Sealing Ring & Stainless Steel Fastener Set

1 × Cleaning Kit & User Manual

Warranty: 1-Year Device Body Warranty

FAQ

Q：

Does this terminal box support different types of fiber optic adapters?

A：

Yes, our Fiber Optic Terminal Box features an interchangeable design compatible with SC, LC, and FC adapters (UPC/APC) to meet various network requirements.

Q：

How does the design protect the fiber from signal loss?

A：

The box includes built-in fiber storage slots and cable fixing devices that strictly maintain a static bending radius of ≥30mm.This scientific layout prevents micro-bending loss and ensures long-term signal stability.

Q：

Can I install this terminal box in a standard server rack?

A：

Yes, the FTB Series supports dual installation methods: wall-mounted(as a Fiber Termination Box Wall Mount) or 19-inch rack-mounted.This flexibility makes it suitable for both residential FTTH setups and professional data center environments.

Q：

What materials are used to ensure the box's durability?

A：

The body is constructed from high-strength ABS/PC engineering plastic, which is anti-aging and impact-resistant.All fasteners are made of stainless steel to provide anti-rust and corrosion-resistant performance.

Q：

Is a professional toolset required for maintenance?

A：

No, the box utilizes a snap-on cover design and a removable splice tray for easy access.This allows for quick installation and routine maintenance without the need for specialized professional tools.

Q：

Is the FTB Series certified?

A：

Yes. The FTB Series has obtained CE, RoHS, and IP65 certifications, meeting international standards for safety, environmental compliance, and ingress protection.

Q：

Can I customize Fiber Optic Terminal Boxes for large-scale tenders?

A：

Yes. As a professional manufacturer, we offer customizable core capacities (4/8/12/24/96) and color options to meet specific requirements for international government tenders and large-scale telecom projects.

Q：

What is the benefit of the ABS/PC material used in your Fiber Termination Box?

A：

Our high-strength ABS/PC engineering plastic is specifically treated with anti-aging and anti-corrosion additives. This ensures the box remains impact-resistant and maintains its IP65 protection level even in harsh, semi-protected outdoor environments.
