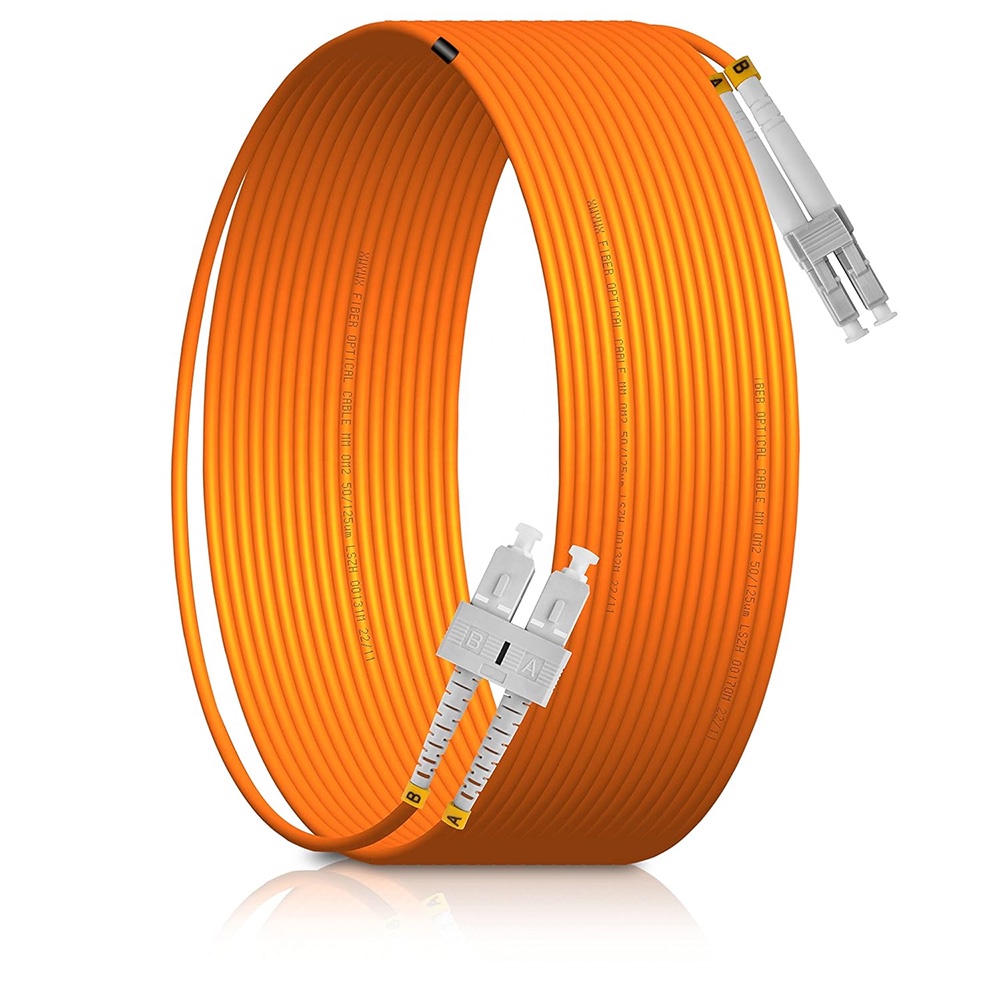

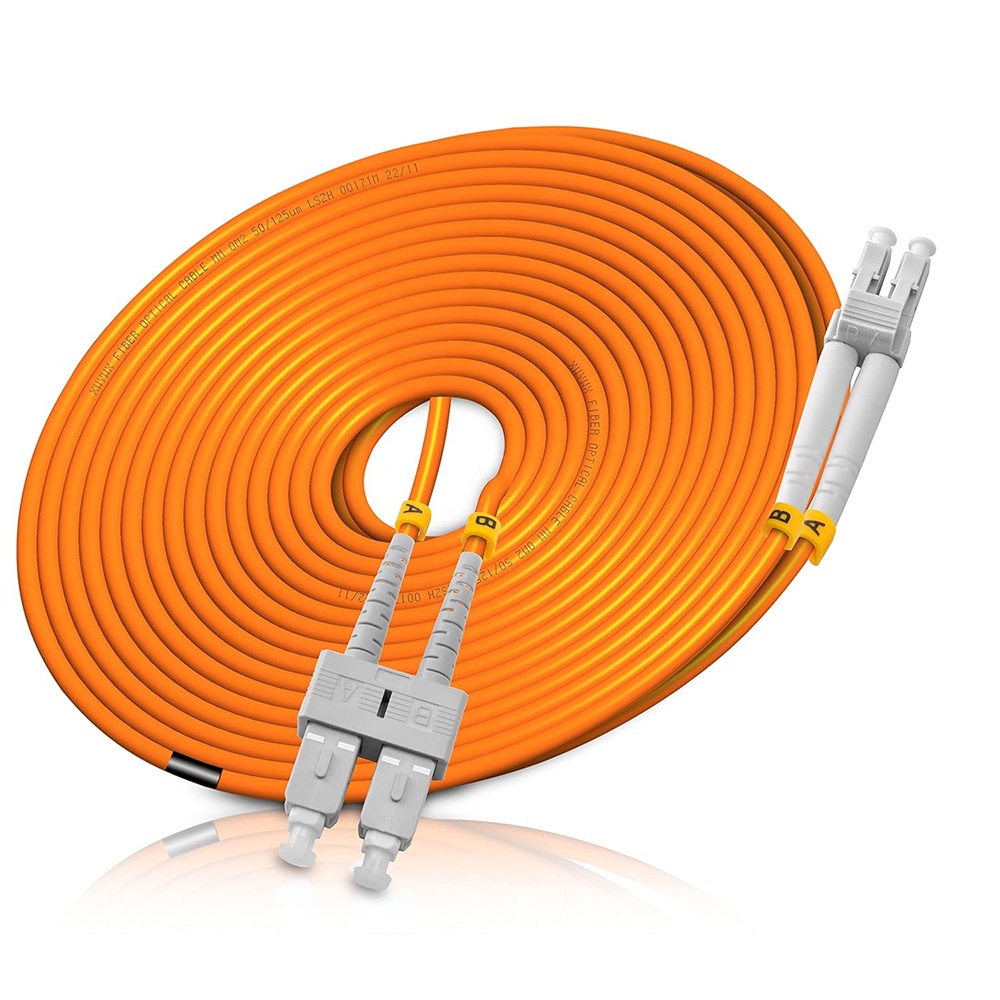

LF009 Multimode Fiber Patch Cords OM3 SC LC 50/125μm Low Insertion

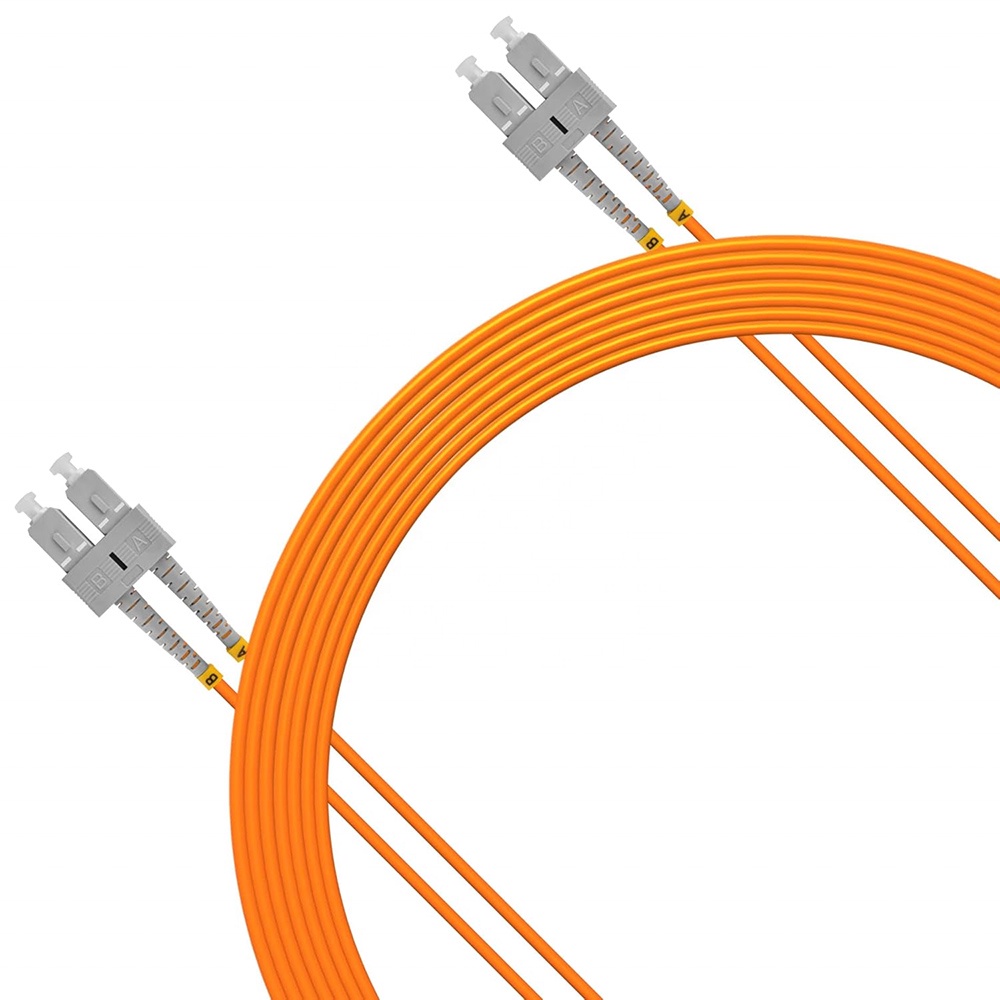

LF009 SC-SC MM

LF011 LC-LC MM

Custom length and packaging available upon request.

Share on

Product Description

Product Introduction

As a professional manufacturer of fiber optic components, we provide high-performance SC-SC/LC-LC Multimode Duplex Fiber Optic Patch Cord. This patch cord adopts OM3 multimode fiber, integrating the stability and easy operation of SC/LC push-pull connectors, perfectly solving the high-speed bidirectional transmission needs of indoor fiber networks such as data centers and enterprise offices.

Technical Specifications

Product Name	SC-SC Multimode Duplex Fiber Optic Patch Cord / LC-LC Jumper
Core Configuration	2 Cores (Duplex, Tx/Rx Bidirectional)
Fiber Mode & Size	Multimode (MM), 50/125μm
Fiber Grade	OM3 (10G, Laser Optimized)
Connector Type	SC/LC, UPC/APC (Same Interface)
Connector Ferrule	2.5mm Ceramic Zirconia
Polishing Type	UPC (≥50dB) / APC (≥60dB) (Optional)
Insertion Loss (IL)	Typical: ≤0.2dB, Max: ≤0.3dB per core
Return Loss (RL)	UPC: ≥50dB; APC: ≥60dB per core
Cable Diameter	2.0mm / 3.0mm (Optional)
Sheath Material	LSZH (Halogen-Free, Flame-Retardant) / PVC
Sheath Color	Orange (Standard OM3) / Customizable
Standard Length	1m, 2m, 3m, 5m, 10m (Custom Length Acceptable)
Transmission Speed	10Gbps (Max Distance: 300m)
Operating Temp	-40℃ ~ +85℃
Mating Cycles	≥ 1000 Times
Certifications	IEC 60794, TIA/EIA-492AAAC, RoHS, CE

Application Scenarios

Data center server to ToR switch (10G/25G)
Enterprise LAN backbone (≤300 m)
Storage area networks (8G/16G Fibre Channel)
High‑density ODF patching
Video surveillance and building automation

FAQ

Q：

What is the core difference between single‑mode and multimode fiber patch cords?

A：

Single‑mode (e.g., LF002‑LF008, LF010): Core size 9/125μm, G.652D or G.657A2 fiber, operating at 1310/1490/1550nm, designed for long‑distance, high‑bandwidth transmission.
Multimode (e.g., LF009, LF011): Core size 50/125μm (OM3), operating at 850nm, designed for short distances (≤300m at 10G), typically used in data centers and enterprise LANs.

Q：

What is the difference between 50/125µm and 62.5/125µm multimode fiber? Which one should I choose?

A：

50/125µm (OM3/OM4) is the modern standard with higher bandwidth – supports 10G up to 300m or more. 62.5/125µm (OM1) is legacy, only 1G up to 275m. Always choose 50/125µm for new installations to support future 10G/25G/40G upgrades.

Q：

Can I connect a multimode patch cord to single‑mode equipment? If not, what happens?

A：

NEVER mix multimode patch cords with single‑mode equipment. Consequences:

Huge insertion loss ≥10dB due to core mismatch (50µm vs 9µm)

Severe modal dispersion distorting the signal

A 850nm multimode transceiver launched into single‑mode fiber will have almost no output; a single‑mode transceiver into multimode fiber will also fail.
