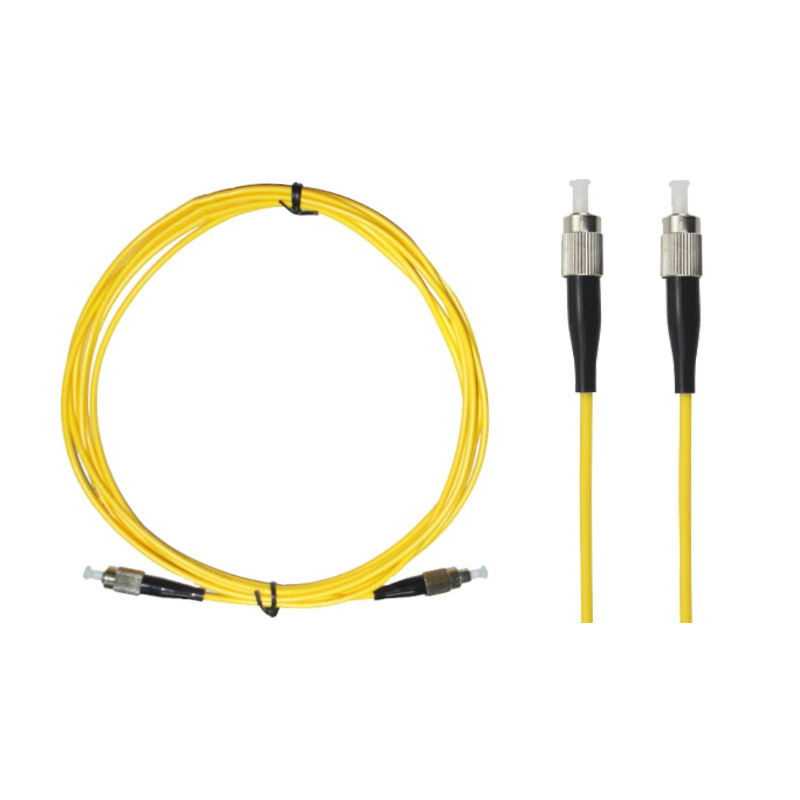

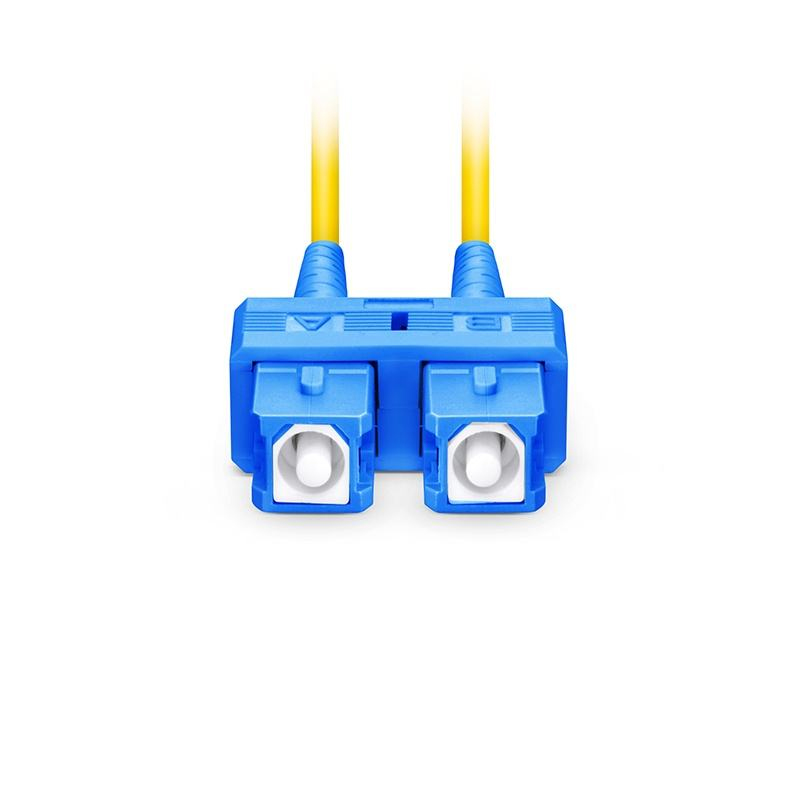

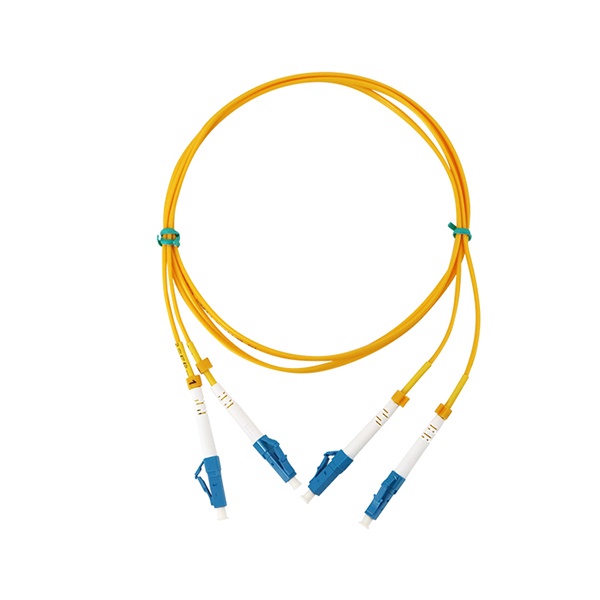

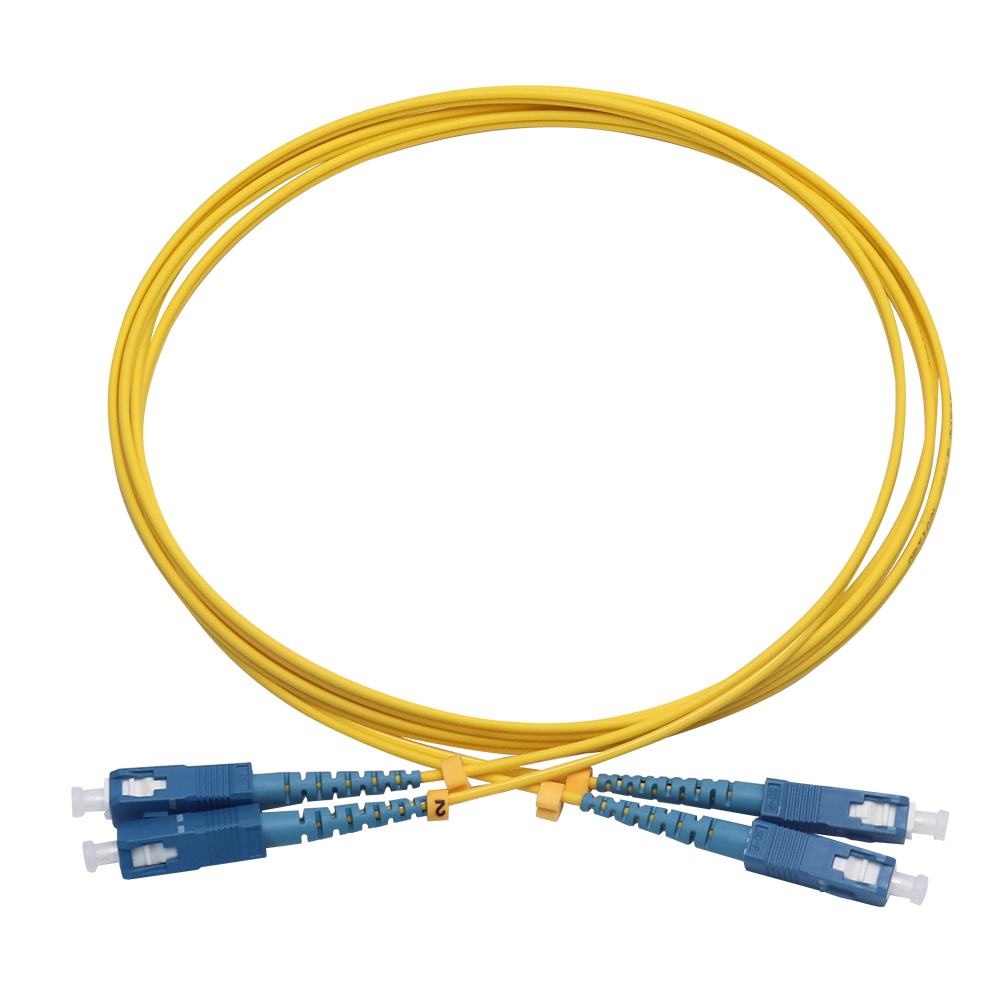

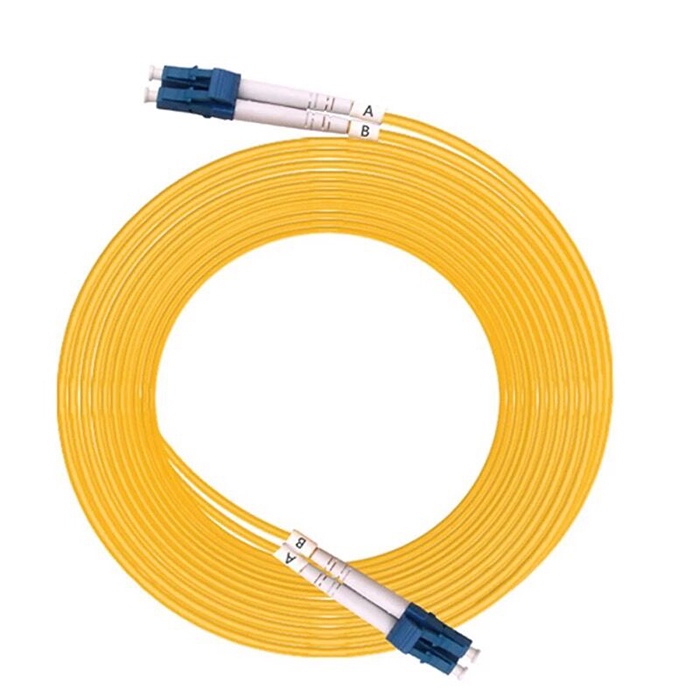

LF002 Single-mode Fiber Optic Patch Cord Simplex Duplex SC/FC/LC G657A2 G652D 2.0mm 3.0mm LSZH PVC

Product Description

This series of single‑mode fiber patch cords uses ITU‑T G.652D or bend‑insensitive G.657A2 fiber (9/125 µm). Connector options include SC, FC, LC, and hybrid SC‑LC. Both simplex (1‑fiber) and duplex (2‑fiber) versions are available. All cords are factory terminated with precision zirconia ceramic ferrules, UPC or APC polishing, and are 100% optically tested. Jacket material LSZH or PVC, diameter 2.0 mm or 3.0 mm, operating temperature –40 °C to +85 °C.

Key Advantages

Connector durability

      SC: push‑pull latching, ≥1000 mating cycles, robust for frequent patching.

      FC: threaded stainless steel body, vibration resistant, best for high‑vibration environments.

      LC: snap‑in latch with 1.25 mm ferrule, compact but equally durable (≥1000 cycles), ideal for high‑density panels.

Simplex vs. duplex topology

      Duplex (two fibers) : dedicated Tx and Rx paths; used with standard SFP transceivers for full‑duplex communication.

      Simplex (single fiber) : used with BiDi (Bidirectional) transceivers where one fiber carries both upstream and downstream wavelengths              (e.g., 1310 nm / 1550 nm), saving fiber count.

Ultra‑low insertion loss (≤0.3 dB) and high return loss (UPC ≥50 dB, APC ≥60 dB).

G.657A2 bend‑insensitive fiber (static bend radius ≥10 mm) for tight installations.

RoHS, CE, IEC 60794, ITU‑T compliant.

Common Specifications

Applications

• FTTH / FTTB / FTTO

• ODF to ONT/ONU interconnection

• Data center TOR/EOR switching

• SFP/SFP+ transceivers (duplex or BiDi)

• Enterprise LAN, telecom central offices, security monitoring
