Product Overview

The Guangyan G10 OPM is a professional-grade precision optical power meter specially developed for fiber optic communication testing, FTTH/FTTx installations, fiber splicing, and on-site network maintenance. As a dedicated testing tool under the Guangyan brand, it adopts a high-sensitivity InGaAs detector to accurately measure optical signal power, helping technicians quickly detect signal attenuation, judge fiber link quality, and troubleshoot network faults efficiently. The meter features a compact and mini design, smaller than a TV remote control, making it extremely portable for field operations. It is equipped with a rechargeable Li-ion battery, eliminating the trouble of frequent battery replacement, and supports USB charging for convenient use anytime and anywhere. The clear LCD backlight display with adjustable brightness ensures easy reading in both bright outdoor and dim indoor environments, while the user-friendly interface supports one-key operation, wavelength cycle switching, and manual calibration. With universal compatibility for SC, FC, ST connectors, it meets diverse testing needs of different fiber optic projects. The high-strength ABS body ensures durability and anti-drop performance, suitable for harsh field working conditions. It is widely trusted by telecom engineers, fiber optic installers, and network maintenance personnel, serving as an essential testing tool for fiber optic network construction and daily maintenance.

Detailed Technical Specifications

Key Features & Advantages

• Brand-Specific Customization: Exclusive Guangyan G10 model, tailored for fiber optic testing scenarios, with stable performance and high compatibility, meeting professional testing requirements.

• High Precision Measurement: Adopts high-sensitivity InGaAs detector, measurement accuracy up to ±0.05 dB, resolution 0.01 dB, ensuring accurate and reliable optical signal testing results.

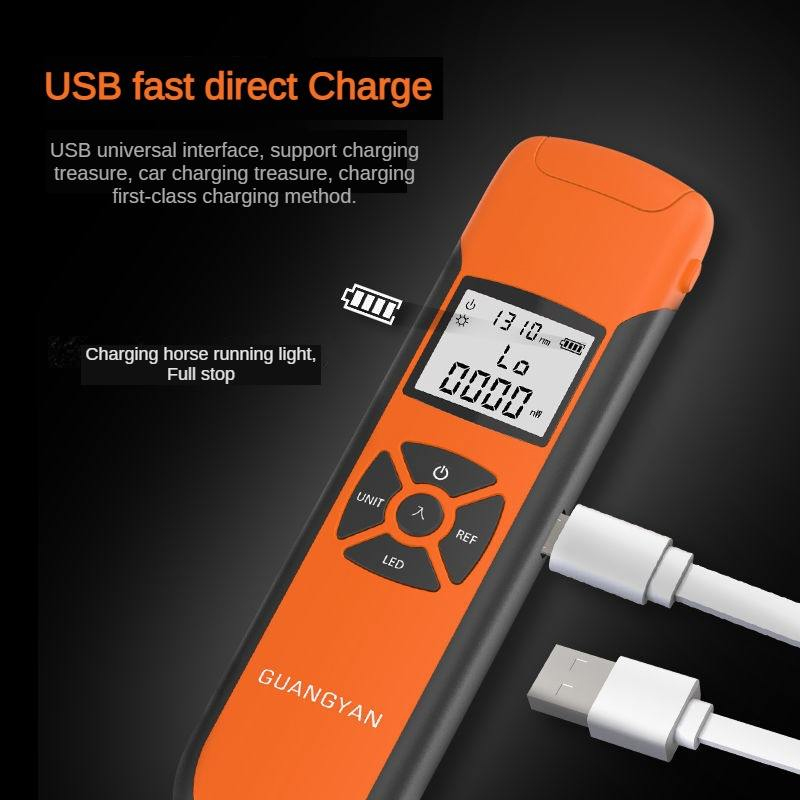

• Rechargeable Design: Built-in 3.7V 400mAh Li-ion battery, supports USB charging, eliminates frequent battery replacement, continuous use for ≥80 hours, suitable for long-term on-site work.

• Wide Wavelength Coverage: 800~1700nm wavelength range, supports 7 common wavelengths cyclic switching, automatically saves the last tested wavelength when shutting down, convenient for repeated testing.

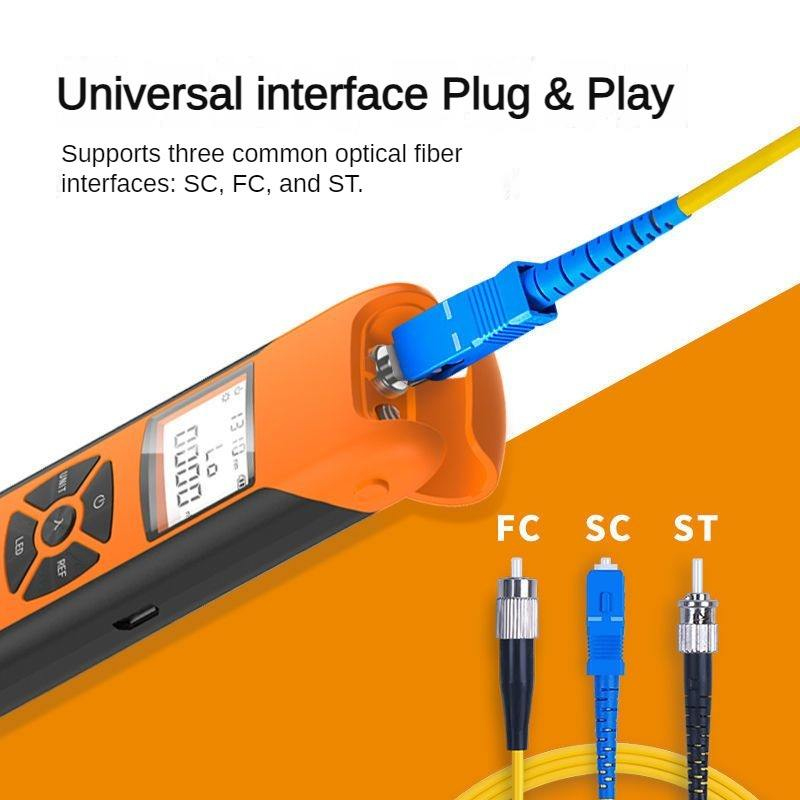

• Universal Compatibility: Equipped with 2.5mm universal interface and interchangeable SC/FC/ST adapters, compatible with most standard fiber optic connectors, no additional accessories needed.

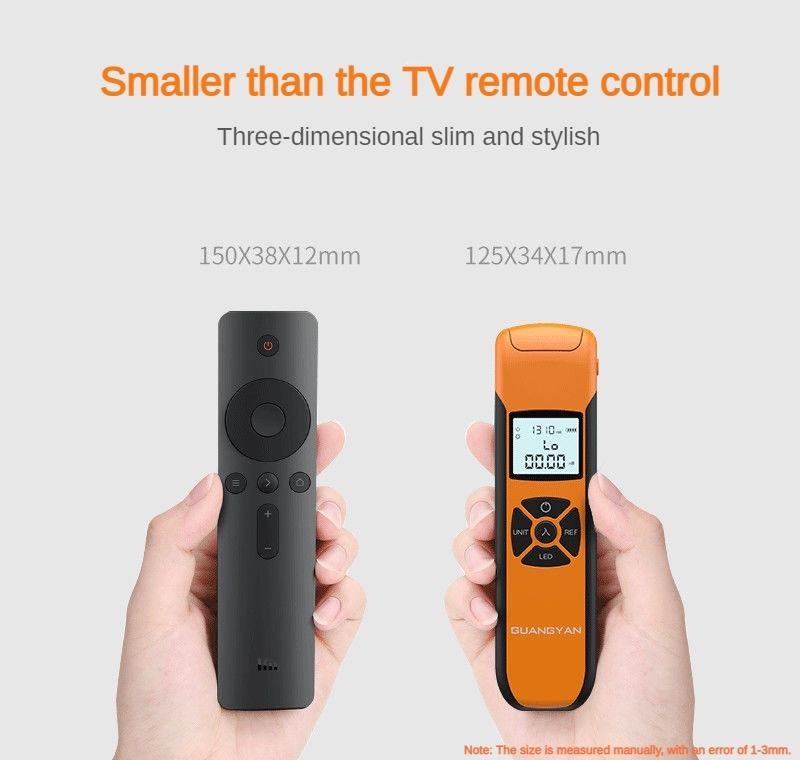

• Mini Portable & Durable: Slim and compact design (34×17×125mm), lightweight, easy to carry in tool bags; high-strength ABS body, anti-drop and wear-resistant, adapting to harsh field environments.

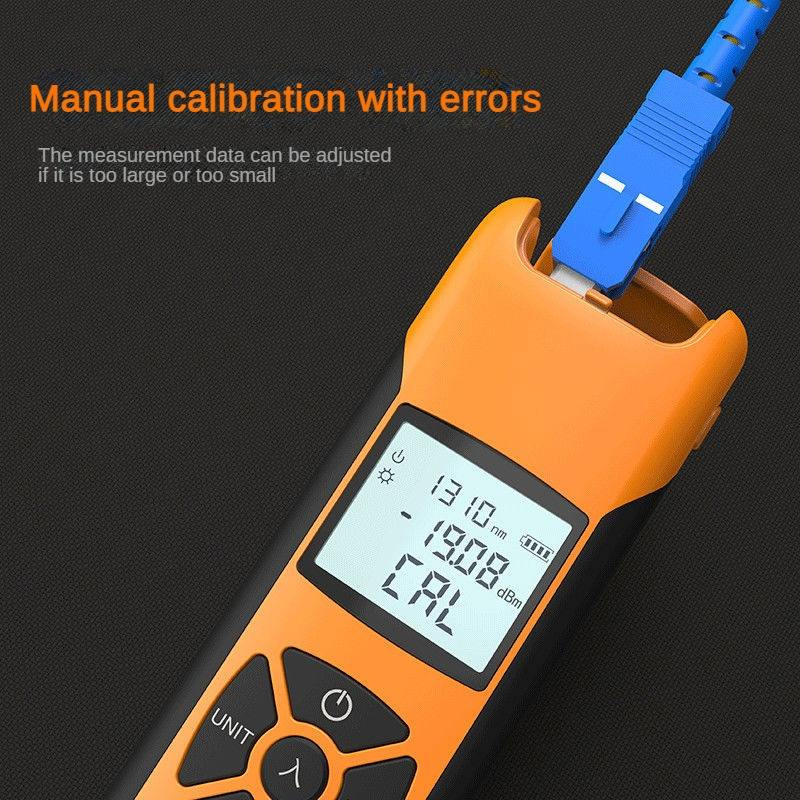

• User-Friendly Operation: LCD backlight display with adjustable brightness, 10-minute auto shutdown to save power; supports manual calibration and 40 groups cyclic data storage, easy to use for both novices and professionals.

• Practical Additional Functions: Built-in LED lighting function, convenient for operation in dark environments; supports linear (nW) and non-linear (dB) indicators, meeting diverse testing needs.

Application Scenarios

The Guangyan G10 OPM is widely applied in FTTH/FTTx/FTTB network installation, fiber splicing, network maintenance, optical signal testing, and fiber optic communication projects. It is used to accurately measure optical signal power, detect signal attenuation, judge fiber link quality, and troubleshoot network faults efficiently. Suitable for residential community FTTH installation, industrial park network construction, data center equipment maintenance, and emergency fiber repair. Its mini portable design makes it ideal for field operations, including aerial, underground, and indoor testing scenarios. It is widely used by telecom operators, fiber optic installers, network maintenance teams, and testing personnel, as an essential dedicated testing tool for fiber optic communication projects, ensuring the stability and reliability of fiber optic networks.
