Tumtec V9+ Six-Motor Core Alignment Fusion Splicer

Tumtec V9+ Six-Motor Core Alignment Fusion Splicer

Direct answer: The Tumtec V9+ is a six-motor, single-fiber core alignment fusion splicer for fiber installation, maintenance and repair. Tumtec lists a 6-second quick splice, 5-inch color display with 500X fiber view, and a removable 5200mAh battery rated for about 250 typical splice-and-heat cycles.

V9+ for field service and project supply

The V9+ pairs automatic splicing functions with a larger display and removable battery. It can be evaluated for contractor fleets, telecom maintenance and fiber infrastructure projects where the specified fiber types, cable dimensions and environmental limits match the worksite. Buyers should compare the actual field conditions with the ratings below rather than relying on model names alone.

Key features

• Six-motor alignment system with DACA and automatic fiber-type recognition, as described by Tumtec.

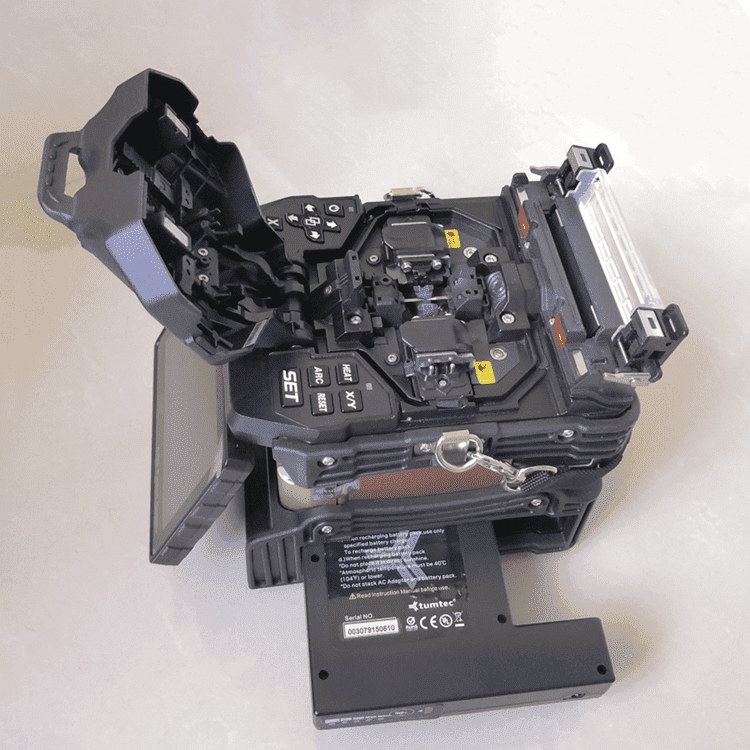

• Automatic splice mode, V-slot structure and detachable fixture for field handling.

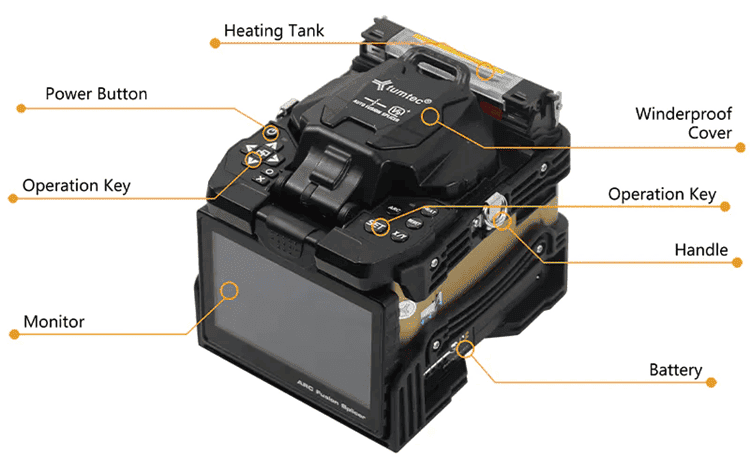

• 5-inch color high-resolution touchscreen with 500X fiber view and 90-degree bi-directional display.

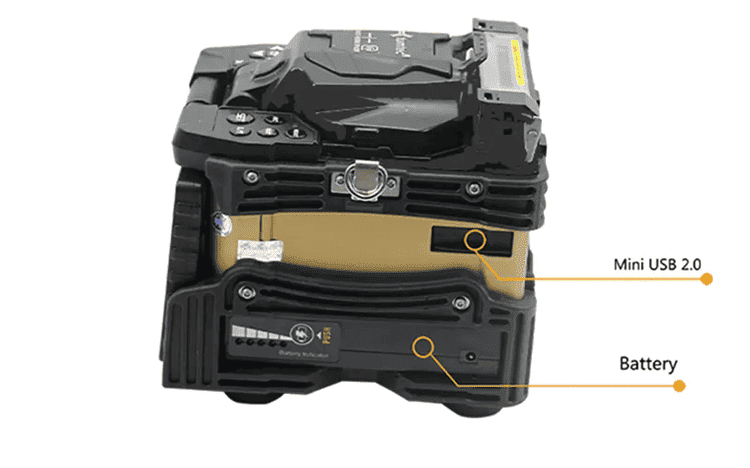

• Removable 5200mAh battery rated for approximately 250 typical splice-and-heat cycles.
• Three white LEDs and automatic arc calibration based on air pressure and temperature.

Technical specifications

B2B buyer checklist

• Verify whether the job uses SM, MM, DS, NZDS or G.657 fiber and check coating/cable diameter before ordering.
• Match the protection sleeves and heating program to the field team's standard materials.

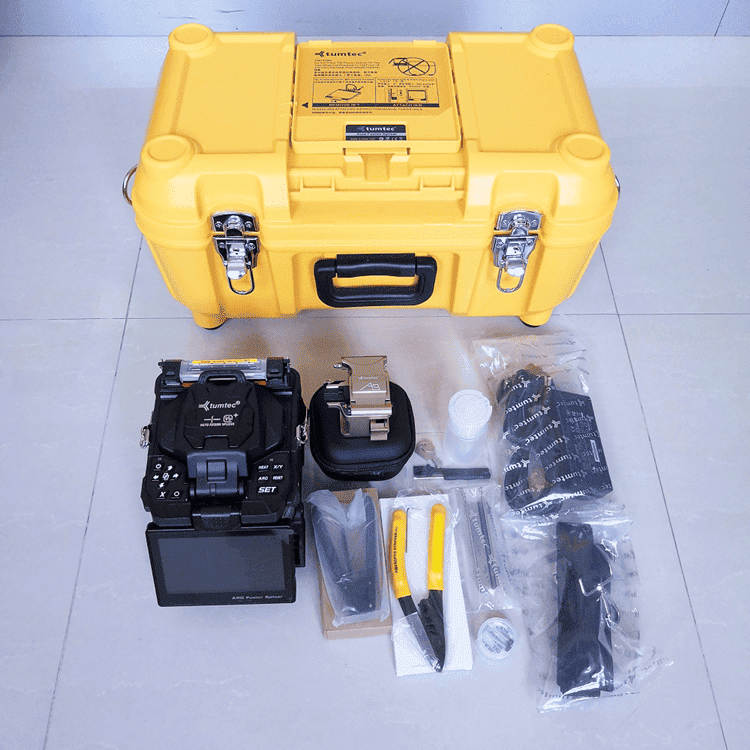

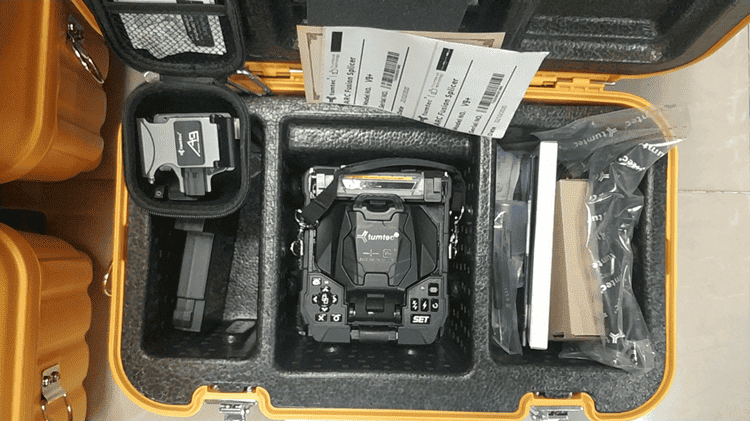

• Request a written list of the supplied cleaver, holders, electrodes, battery, charger and carrying case for the selected package.
• For distributor supply, confirm warranty, consumables, training and after-sales arrangements for the destination market.

Specifications are transcribed from Tumtec's V9+ product information. Confirm current revision, accessories and warranty in the quotation.
