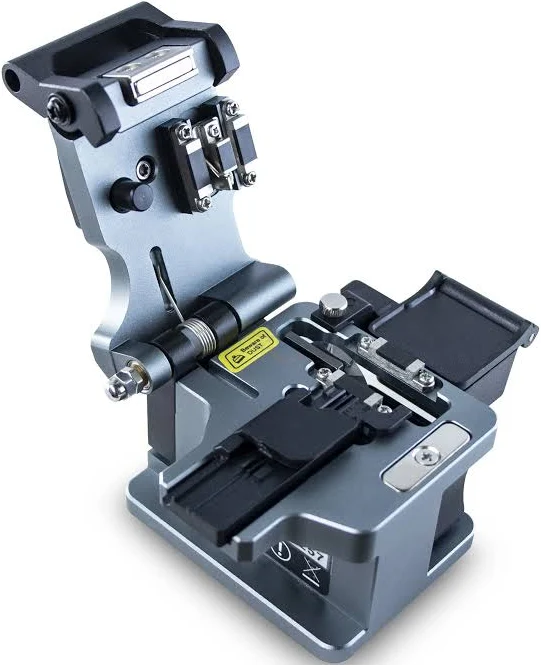

Tumtec A9+ Precision Fiber Cleaver

Tumtec A9+ Precision Optical Fiber Cleaver

The Tumtec A9+ is a compact fiber cleaver for preparing single-core optical fiber before fusion splicing. The supplied A9+ datasheet specifies 125 µm bare fiber, a 7–16 mm cleave length, approximately 328 g weight and 64 × 81 × 60 mm dimensions.

Why cleaver selection matters

In a field splicing kit, the cleaver is a critical preparation tool: a repeatable cleave helps technicians prepare fiber ends consistently before fusion. Distributors should verify that the customer's fiber-holder arrangement, cleave length and maintenance routine match the selected cleaver and the splicer's workflow.

Key features

• Specified for single-core optical fiber preparation with 125 µm bare fiber.
• 7–16 mm cleave-length range for compatible fiber and holder setups.
• Compact aluminum-alloy body with anodized finish, according to the supplied datasheet.
• Automatic return mechanism, as described in the source material.
• Optional single-core fiber holder, mechanical automatic scrap collector and regular scrap collector are listed in the supplied datasheet; confirm selected configuration.

Technical specifications

Distributor order checks

• Confirm the cleaver is intended for the customer's fiber type and holder arrangement, including the stated 0.25 mm or 0.9 mm single-core construction.
• Confirm the required 7–16 mm cleave length is suitable for the splice tray, holder and protection sleeve workflow.
• Specify whether the order needs the optional holder, blade, or scrap collector; do not assume optional accessories are included in the base package.
• Request the latest package list, warranty terms and maintenance guidance for the destination market.

Source values in this draft follow the customer-provided Tumtec A9+ datasheet. Confirm the product revision and selected accessories before ordering.
