Product Overview

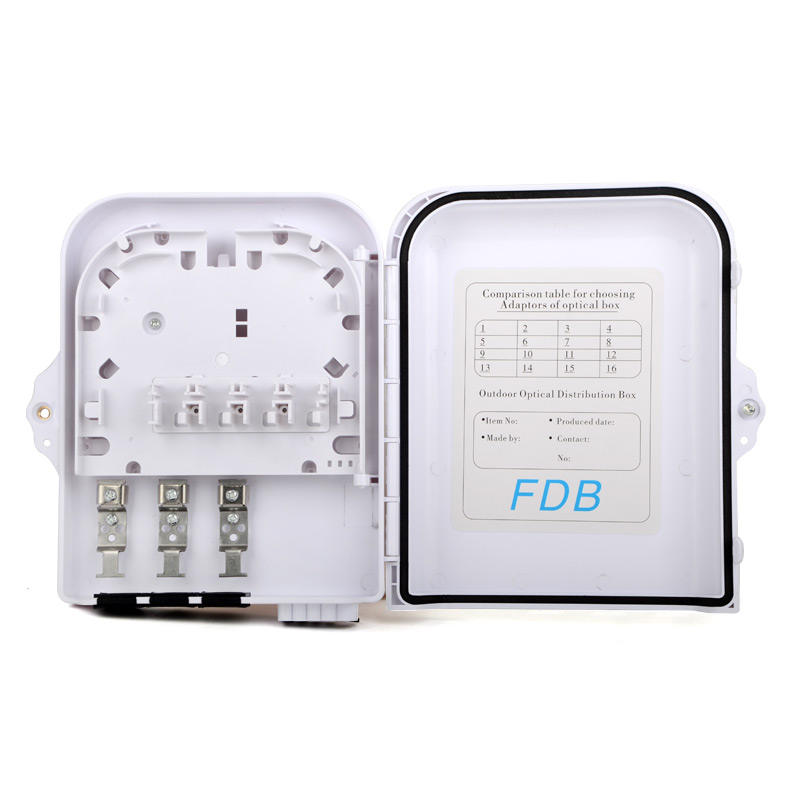

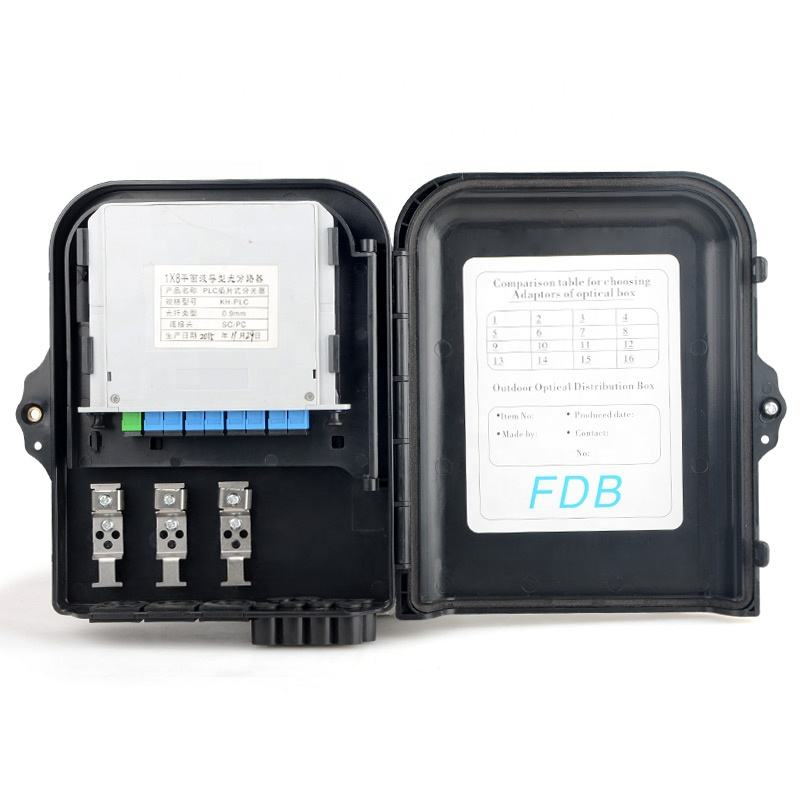

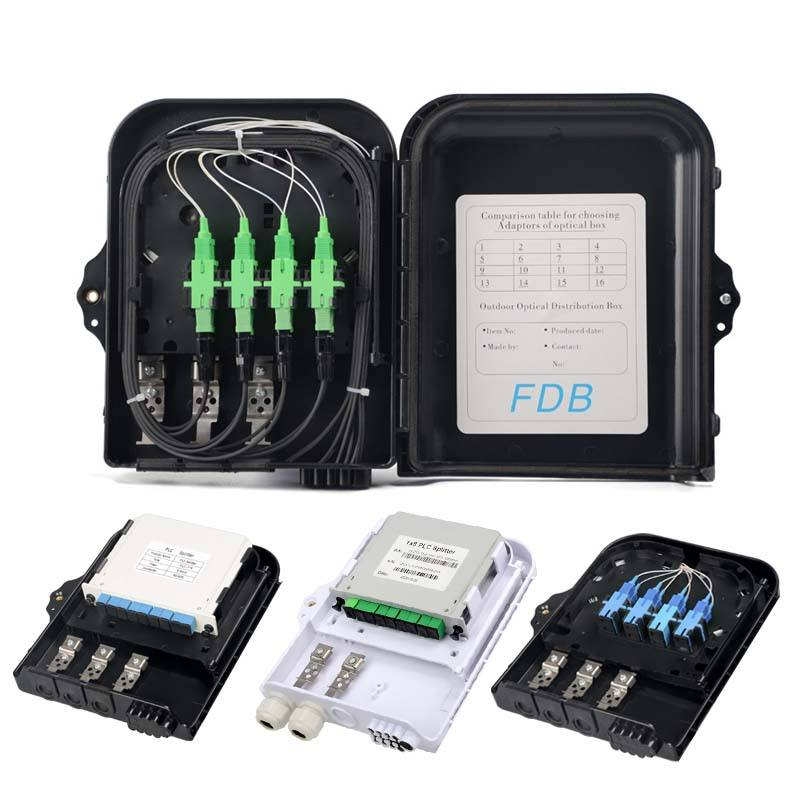

The Fiber Optic Distribution Box is a professional fiber optic splitting, termination and distribution device, specially designed for FTTH (Fiber to the Home) access networks, residential communities, office buildings, industrial parks and other fiber optic distribution scenarios. It integrates fiber splitting, termination, storage and distribution functions, providing a safe, efficient and neat solution for fiber optic signal distribution. The distribution box adopts high-strength ABS/PC engineering plastic, added with anti-aging and anti-corrosion additives, which has excellent impact resistance, compression resistance and weather resistance, and achieves IP65 protection level, effectively preventing dust, moisture, light rain and corrosive substances from entering, ensuring the long-term stable operation of internal optical fibers and components. It supports 8/16/24/32 core optional capacity, compatible with single-mode and multi-mode fibers, and matches SC, LC (UPC/APC) common optical adapters and fiber splitters (1×8, 1×16, 1×24, 1×32 optional), realizing flexible fiber splitting and distribution. The internal structure is scientific and reasonable, equipped with fiber storage slots, splice trays, splitter installation positions and cable fixing devices, strictly controlling the fiber bending radius ≥30mm (static) and ≥40mm (dynamic) to avoid micro-bending loss. The distribution box supports two installation methods: wall-mounted and pole-mounted, which can be flexibly selected according to on-site scenarios; the snap-on cover design with a lock ensures safety and is easy to install and maintain without professional tools. It is compact in layout, small in size, and can be perfectly integrated with various indoor and outdoor environments such as residential corridors, equipment rooms and outdoor poles. Widely used in FTTH access projects, residential community fiber distribution, office building comprehensive wiring and industrial park fiber networks, it is an essential supporting device for fiber optic access networks, providing reliable protection for fiber splitting and signal distribution.

Detailed Technical Specifications

Key Features & Advantages

• Integrated Splitting & Distribution: Integrates fiber splitting, termination, storage and distribution functions in one, matching corresponding splitters (1×8/1×16/1×24/1×32) for each core capacity, providing a one-stop solution for FTTH fiber distribution.

• IP65 Protection Level: Adopts high-quality sealing components and tight structure design, achieving IP65 waterproof, dustproof and anti-corrosion performance, suitable for indoor and outdoor semi-protected environments such as residential corridors and outdoor poles.

• Multi-Core Optional & Wide Compatibility: Optional 8/16/24/32 core capacity, compatible with single-mode/multi-mode fibers and various drop cables; supports SC/LC adapters, meeting different FTTH and community distribution needs.

• Durable & Reliable: Made of ABS/PC engineering plastic with anti-aging additives, stainless steel fasteners, anti-corrosion, anti-rust and impact-resistant, ensuring long-term stable use in harsh environments.

• Flexible Installation: Supports wall-mounted and pole-mounted installation (adapting to φ50-120mm poles), flexible and versatile, adapting to residential communities, office buildings and outdoor scenarios.

• Safe & Easy Maintenance: Snap-on cover with lock design, ensuring equipment safety; removable splice tray, convenient for fiber splicing, maintenance and later expansion.

• Fiber Protection: Built-in fiber storage slots and cable fixing devices, strictly controlling fiber bending radius ≥30mm, avoiding micro-bending loss and protecting fiber integrity.

• Compact & Practical: Compact layout, small size, easy to install in narrow spaces, perfectly integrating with residential and office environments, without affecting the overall decoration.

Application Scenarios

The Fiber Optic Distribution Box is widely applied in FTTH (Fiber to the Home) access networks and various fiber optic distribution scenarios, including residential communities, office buildings, industrial parks, commercial plazas, schools and hospitals. It is mainly used for fiber optic splitting, termination, storage and distribution, realizing the distribution of main fiber signals to multiple user terminals. It is suitable for FTTH access projects, residential community fiber distribution, office building comprehensive wiring, industrial park fiber network construction and commercial area fiber access. It is widely used by telecom operators, fiber engineering teams, property management companies and network operators, serving as an essential supporting device for FTTH access networks to ensure stable and efficient signal distribution to each user terminal.
