A customer in Brazil called us last week:

“My link keeps flapping every 5 minutes. The cables are brand new – what’s wrong?”

We asked: “What transceiver and what patch cord are you using?”

Silence. Then: “Uh… single-mode SFP… but the patch cord is orange.”

That’s it.

If you’ve ever been tempted to ‘‘why did the network do down after I replaced a patch cord?” – this post is for you.

The Golden Rule (never break this)

Single-mode transceiver → Single-mode patch cord
Multi-mode transceiver → Multi-mode patch cord

No exceptions. No “temporary” mixes.

What happens when you mix them?

Case 1: Single-mode transceiver + Multi-mode fiber (e.g., yellow module + orange/aqua cable)

A single-mode laser (1310nm/1550nm) emits a 9μm beam.

Multi-mode fiber has a 50μm core – 5–6x wider.

The beam cannot focus → massive coupling loss >10dB.

Symptoms: intermittent packet loss, port flapping, link up/down every few minutes.

Case 2: Multi-mode transceiver + Single-mode fiber (e.g., 850nm module + yellow cable)

Multi-mode transmitters (VCSEL/LED) use a wide 850nm beam.

Single-mode fiber core is only 9μm – the light can barely enter.

Result: Total signal blockage. Link stays permanently DOWN.

Hardware risk (for long-haul systems)

Mismatched interfaces cause high back-reflection (poor return loss). Over time, this can overheat the laser diode and shorten transceiver lifespan.

3-minute field check (engineer-approved)

Before plugging anything in, run this checklist:

1. Look at the cable color

2. Check the transceiver label

Single-mode: marked SM, LX, EX, ZX,or 1310nm/1550nm

Multi-mode: marked MM, SX, or 850nm

3. Connector end-face (UPC vs APC)

UPC (blue) – standard for most data links

APC (green) – for CATV / FTTx only

Do not mix blue with green – you’ll get high loss.

Acceptance test (for new installations)

Optical power meter – measured Rx power should be within module sensitivity range.
Deviation >3dB from theoretical budget → check for  mismatch or dirty end-face.

Switch port status – must show up with zero CRC errors.

No alarms–your switch should not report LASER_MOD_ERR or transceiver type mismatch.

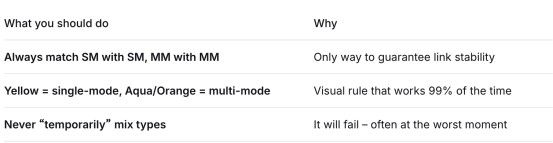

The bottom line

Want a one-page printable cheat sheet for your field engineers?
[Download our Fiber Matching Quick Reference (PDF)] ← (insert your actual download link)

Have a tricky fiber issue? Contact our support team – we’ve seen (and fixed) almost every wrong combination possible.
