1. What Is ARC?

ARC = Arc Discharge.
A fusion splicer uses a high-temperature ARC (several thousand °C) generated between two electrodes to melt and fuse the glass cores of two optical fibers.

ARC calibration is the process of precisely adjusting the discharge intensity and discharge duration.

2. Three Core Benefits of ARC Calibration

2.1 Compensates for Electrode Wear – Maintains Splicing Consistency

Electrodes are consumable parts. Each discharge erodes the tip and builds up carbon deposits, making the arc weaker and more diffuse.

l Without calibration → higher splice loss, weak fusion strength, even fiber breakage

l Regular calibration → the splicer automatically restores standard discharge parameters, ensuring long-term splicing quality

2.2 Adapts to Different Fibers & Environments – Avoids Splicing Failures

Different fiber types (single-mode / multi-mode, G.652 / G.657A2) have slightly different glass compositions. Environmental conditions also significantly affect the ARC:

l Altitude > 2000m (highland) → thinner air weakens the ARC

l High temperature & high humidity → the ARC may become abnormally strong

l After calibration, the splicer automatically matches the optimal discharge parameters for the current fiber and site conditions, preventing “over-fusion” or “under-fusion”.

2.3 Corrects Long-Term Parameter Drift

As the splicer ages, electrode position and discharge circuitry may drift slightly, causing splice loss to increase gradually.
ARC calibration resets the discharge parameters to the factory baseline, ensuring longterm accuracy.

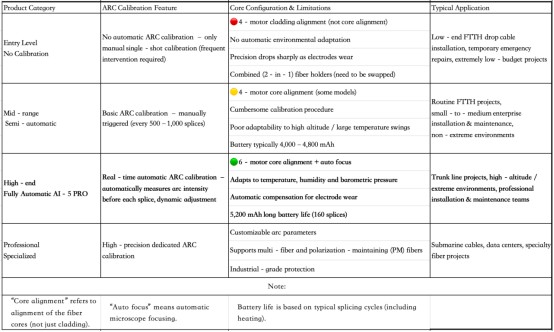

3.Objective Feature Comparison

Note: ARC calibration support varies significantly across different splicer models.

Common limitations of splicers without automatic ARC calibration:

Manual calibration relies on operator experience – prone to field errors

No automatic compensation for electrode wear – loss may increase from 0.02dB to over 0.1dB

Significantly higher failure rates at high altitude (>2000m), low temperature (< -10°C), and high humidity

Features of high-end splicers

(represented by LinkFiber AI-5 Pro):

✅ Fully automatic ARC calibration – automatically checks arc intensity before splicing, adapts to temperature, humidity and barometric pressure – no manual intervention required

✅ 6 motors + auto focus – typical splice loss ≤0.01dB

✅ 5200mAh battery – up to 160 splices on a full charge, 3-hour fast charging

✅ 3-year warranty – most splicers in the same price range offer only 1–2 years

4. Field Application Tips (Avoid These Pitfalls)

(1) Never skip calibration
Long-term neglect of calibration leads to excessive splice loss. The cost of later troubleshooting and rework far outweighs the few minutes spent on calibration.

(2) Prefer automatic calibration mode
For daily operations, automatic calibration is sufficient for the vast majority of scenarios. Manual calibration should only be used by trained engineers for special process conditions.

(3) Make ARC calibration part of your field SOP
For medium-sized installation teams, establishing a rule – “calibrate after electrode change, after environment change, or after a certain number of splices” – effectively reduces rework rates and quality complaints.

5. Fusion splicer purchasing guide

If you are evaluating fusion splicer models or looking to improve field splicing quality, first confirm whether the equipment supports fully automatic ARC calibration.

This feature directly determines：

Electrode life utilization

Environmental adaptability

Long-term operation and maintenance costs

CTA： Get Free Technical Resource

FAQ:

Q1: Why does splicing loss increase significantly when working at high altitudes?

A: This is primarily due to changes in air density affecting the arc discharge strength. At altitudes above 2000m, the thin air weakens the electric arc. Conversely, high temperature or high humidity environments can abnormally enhance the arc. ARC calibration allows the machine to automatically match the best discharge parameters for the current atmospheric pressure, temperature, and humidity, preventing "over-melting" or "under-melting".

Q2: Why is my splicing quality unstable even though the electrodes haven't reached their life limit?

A: Electrodes are consumable parts. Every discharge causes tip erosion and carbon buildup, which eventually leads to a weakened or scattered arc. If you do not calibrate, the splicing loss will rise, and the tensile strength will decrease, leading to potential fiber breakage. Regular ARC calibration compensates for this natural wear and restores the discharge parameters to factory standards for long-term consistency.

Q3: Under what specific circumstances is ARC calibration mandatory in the field?

A: To ensure project quality, you must perform a calibration in the following scenarios:

1) Before the first use of a new machine

2) Immediately after replacing the electrodes

3) After completing 500–1000 splices as part of routine maintenance.

4) When the working environment changes significantly (e.g., moving from plains to plateaus or from indoors to a cold outdoor site).

5) If you notice abnormally high loss or frequent fiber breakage during testing.

6) When restarting the equipment after it has been idle for an extended period.

Q4: What is the difference between manual ARC calibration and the "Real-time Auto" feature?

A: The core difference lies in efficiency and field accuracy:

Manual/Basic Models: These require the operator to trigger the process and rely heavily on experience; errors are more common in complex environments.

High-end models like LinkFiber AI-5 Pro: These feature Real-time Automatic ARC Calibration. The machine automatically detects the arc strength and adjusts for temperature, humidity, and air pressure before each splice without manual intervention. Combined with a 6-motor core-alignment system, this ensures a typical loss of ≤0.01dB.

Q5: What are the risks of skipping ARC calibration to save time on a project?

A: Skipping calibration leads to unpredictable splicing quality and increased long-term costs. Without electrode wear compensation, loss can rise from a standard 0.02dB to over 0.1dB. The time and labor costs for future troubleshooting and rework are far higher than the few minutes required for a calibration. Integrating ARC calibration into your team's Standard Operating Procedure (SOP) is the most effective way to reduce rework rates and customer complaints.

Q6: How should I troubleshoot if the ARC calibration fails or the results are inconsistent?

A: If you encounter a failure warning or fluctuating results during the calibration process, please refer to the following troubleshooting guide:
