LF-098-Ethernet LAN Network Maintenance Tool Kit RJ45 Crimping Tool Cable Tester Wire Stripper

Share on

Product Description

Ethernet LAN Network Maintenance Tool Kit for RJ45 Field Installation

This network maintenance tool kit supports routine copper-cabling preparation, RJ45/RJ11 plug termination, continuity checks and equipment access. It is intended for installation and repair work; the included basic LED tester identifies common wiring faults but does not certify Cat5e/Cat6 channel bandwidth, PoE performance or standards compliance.

For B2B purchasing, approve the connector type, cable conductor construction, crimper die, tester functions, tool quantities and replacement consumables. A kit with many pieces is not automatically suitable for pass-through RJ45 plugs, shielded plugs, large cable OD or formal link certification.

Configuration and Project Selection

Project inputOptions to confirmEngineering impact
Cable categoryCat5e/Cat6 and project-specified telephone/network cableConfirm conductor gauge, solid/stranded construction, shielding and OD.
Plug typeRJ45 8P8C / RJ11; standard or pass-throughCrimper die and trimming function must match the plug.
Testing needContinuity/miswire check or certified performance testBasic LED tester is not a cable certifier.
Work scopeTermination, repair, device opening and cable organisationDetermines hand tools and consumable quantities.
Site power/PoEPoE present or absentFollow safe test procedures; a continuity tester may not assess PoE.
PackingPortable bag and replenishment planList consumables and replacement blades/plugs separately.

Technical Specifications

ParameterSpecification / procurement note

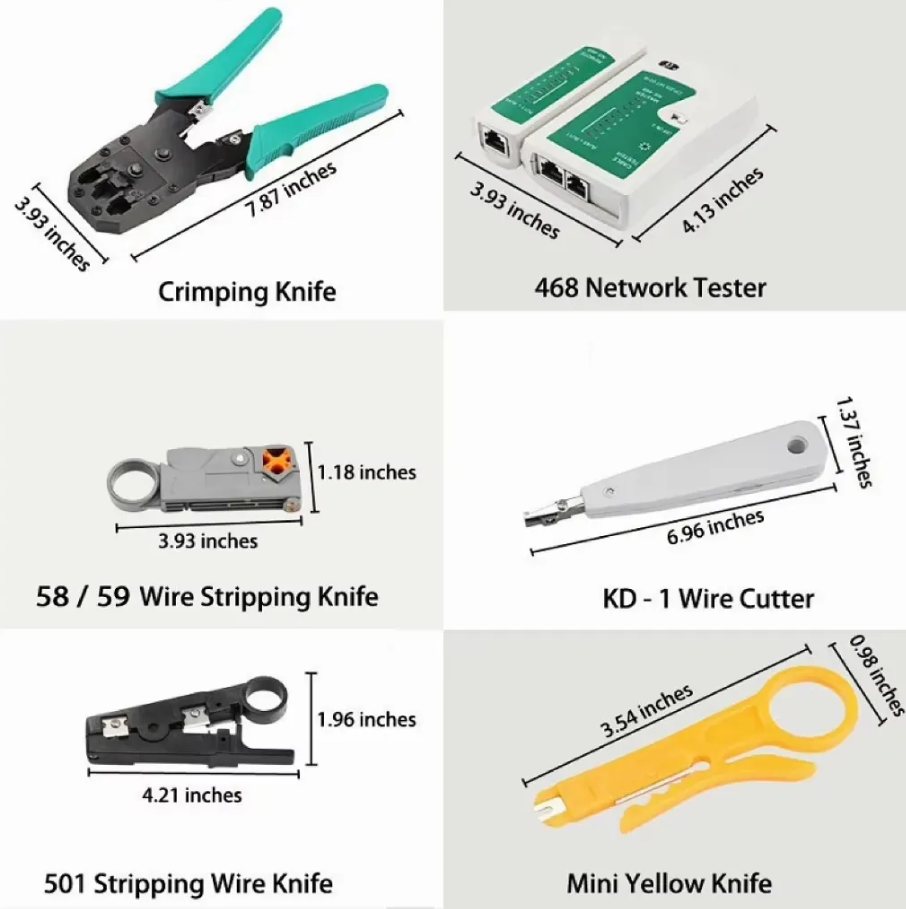

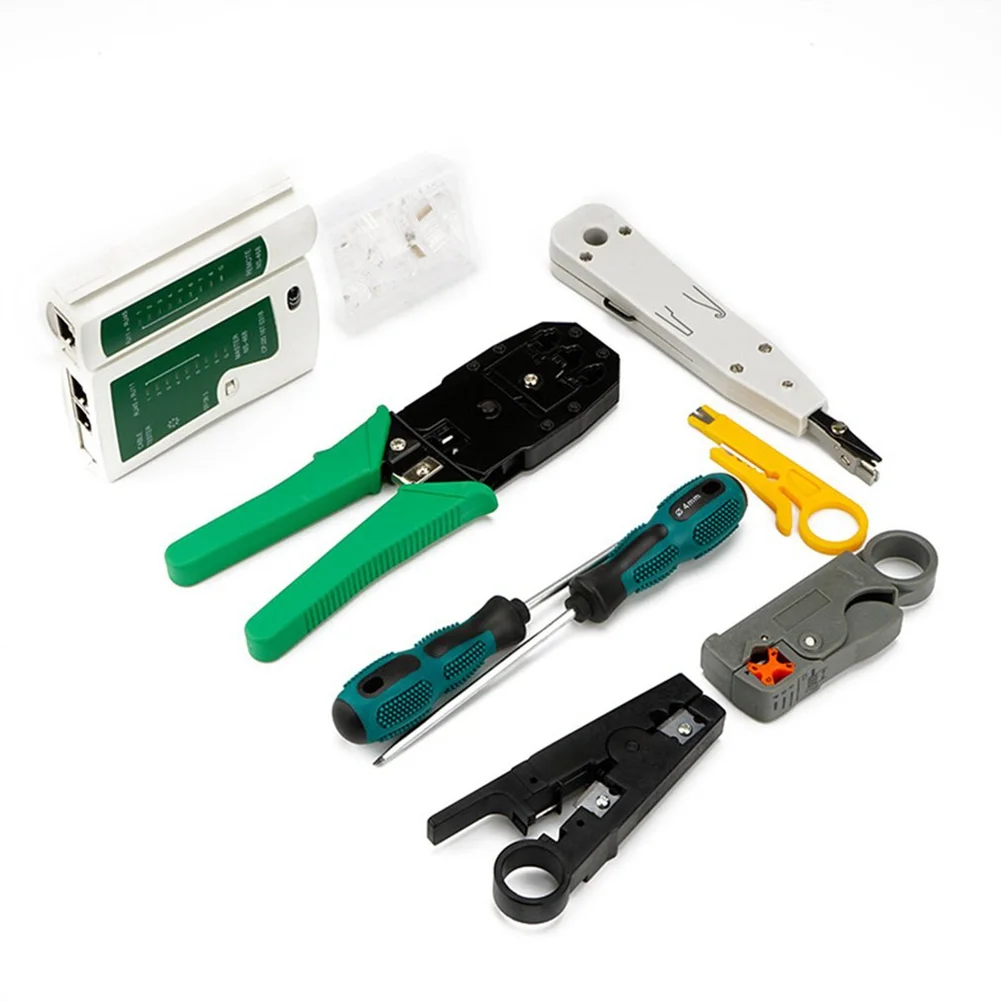

Kit typeEthernet LAN and telephone network maintenance tool kit

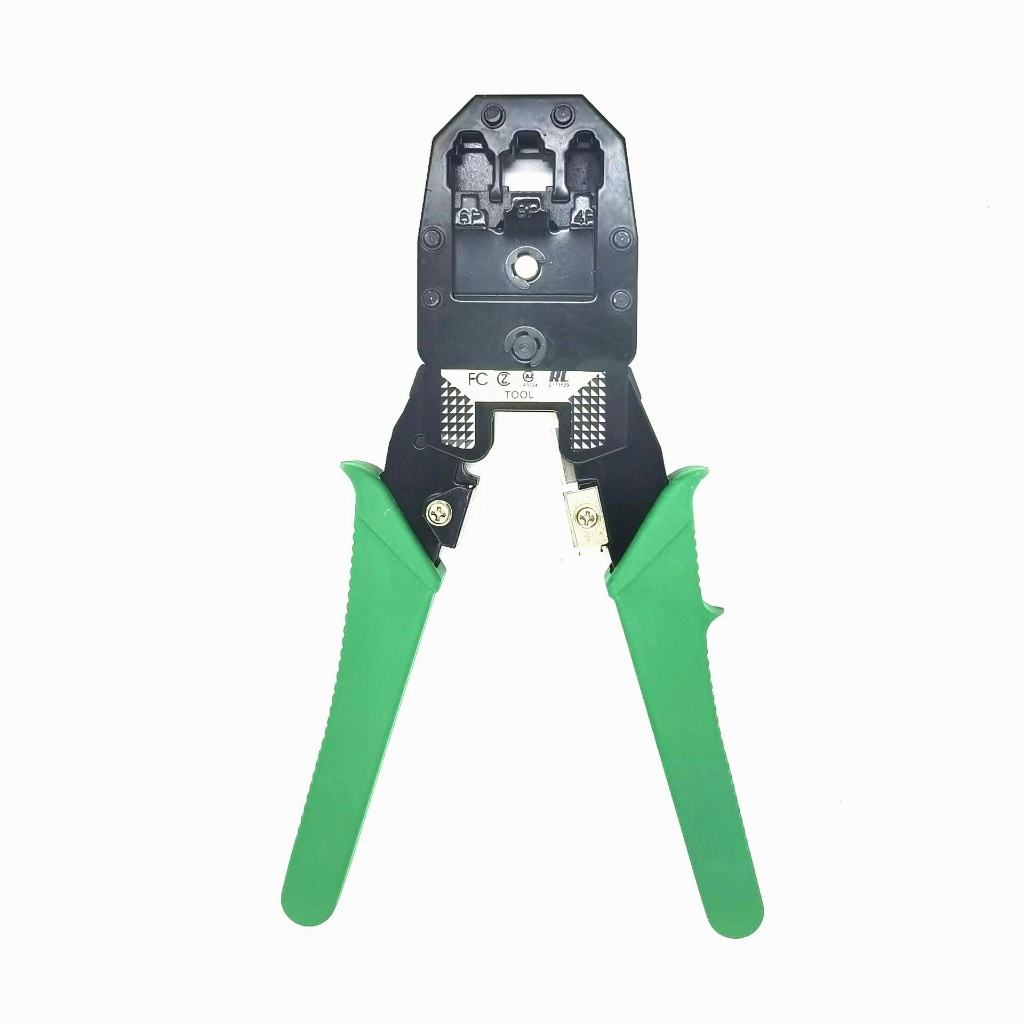

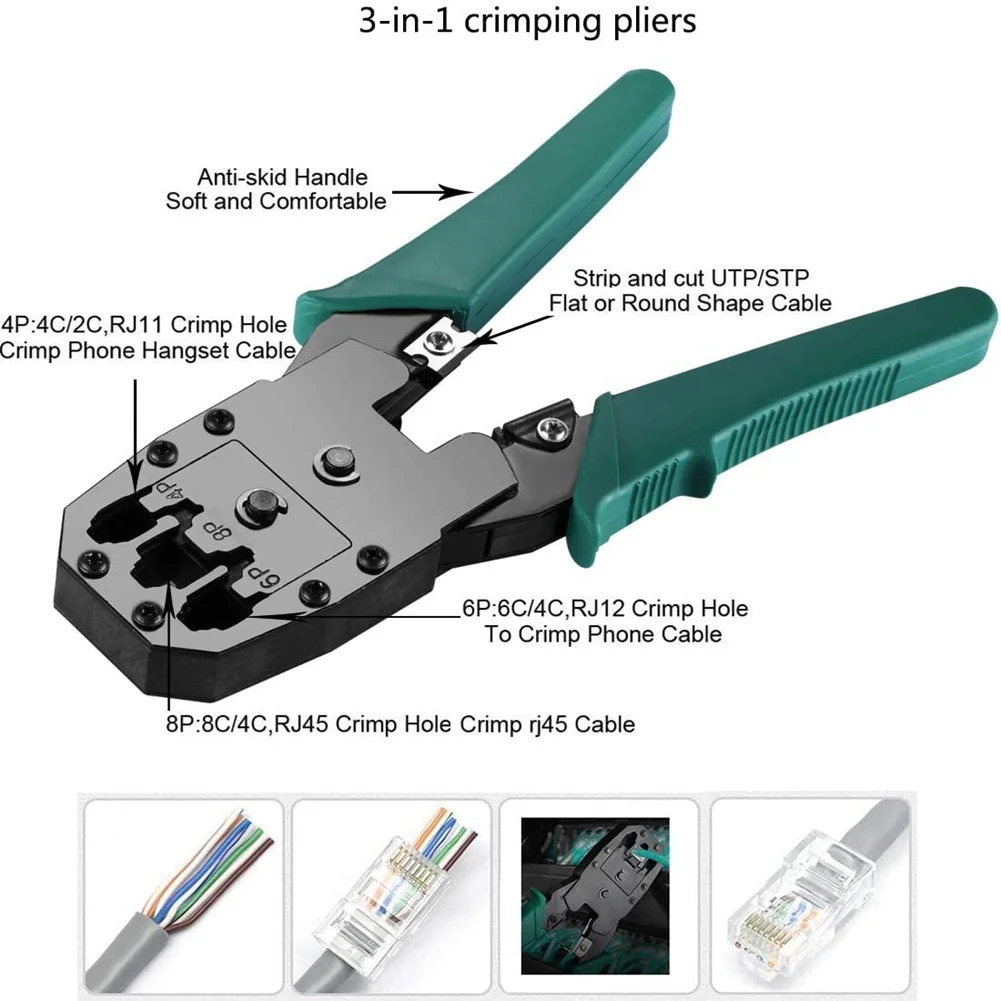

Crimping toolMulti-function RJ45/RJ11 crimper with cutting/stripping; die and pass-through compatibility model-specific

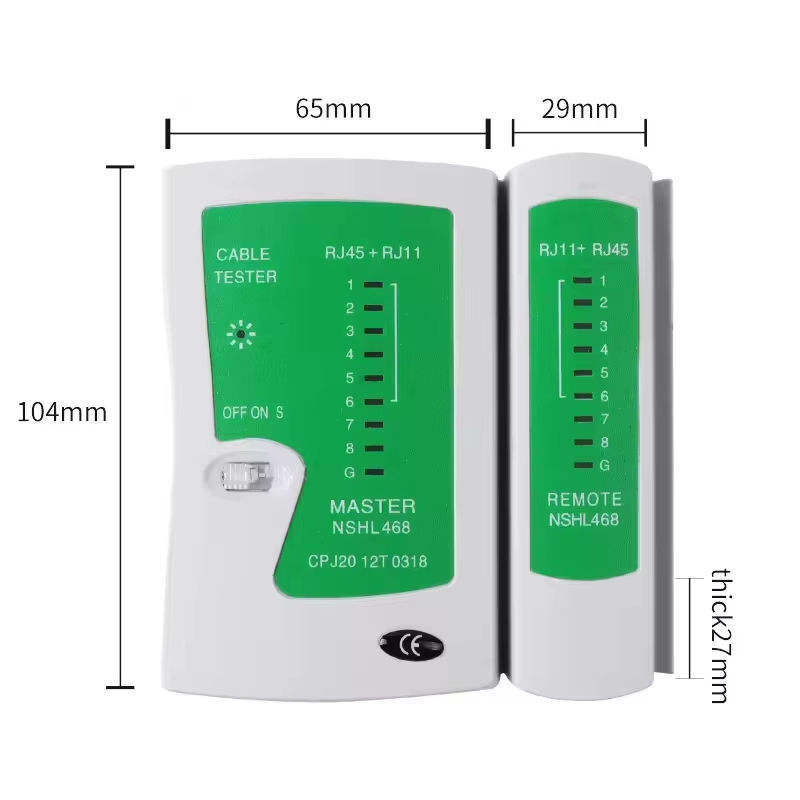

Cable testerLED wire-map tester for straight/crossover mapping and common open, short or miswire faults
Tester limitationNot a Cat5e/Cat6 performance certifier, TDR or comprehensive PoE analyser unless separately specified
Wire stripperAdjustable jacket stripper for approved cable OD; trial setting required to avoid conductor damage

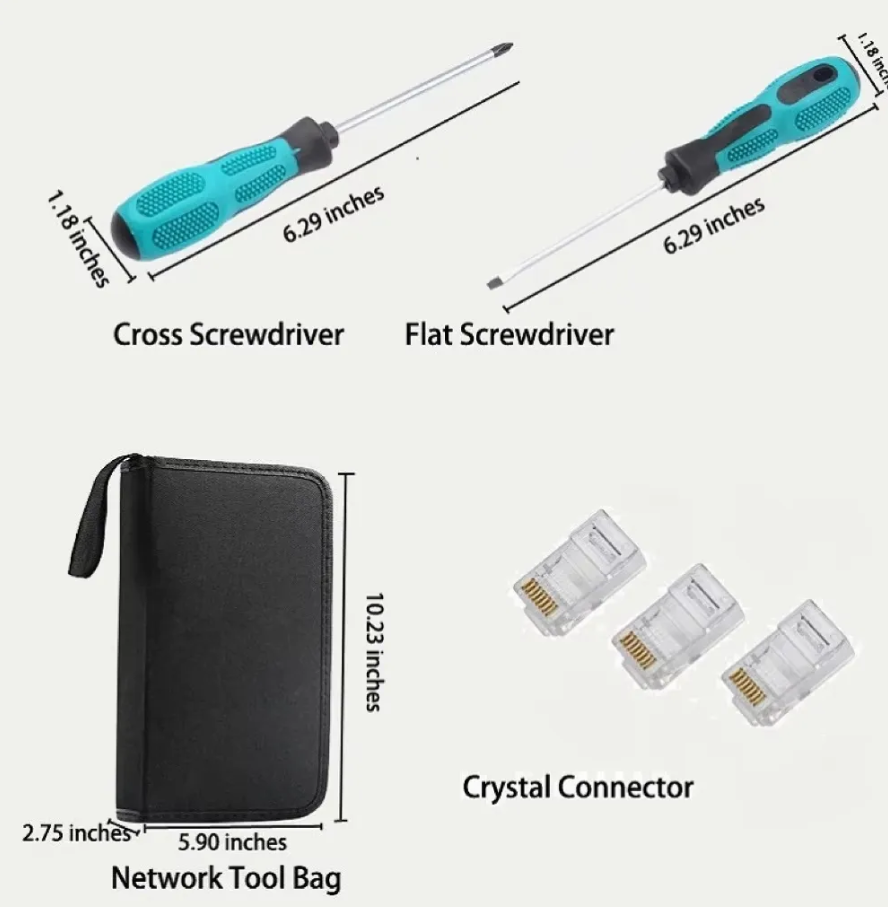

Precision screwdriversPhillips PH0/PH1/PH2 and slotted 3/4/5 mm reference configuration
Long-nose pliersApproximately 6-inch general gripping/bending tool
Wire cutterGeneral copper/aluminium/network-cable cutting; approved range model-specific
Connector consumablesReference: 10 RJ45 and 5 RJ11 plugs; verify shielding, pass-through and conductor compatibility
Cable tiesReference: 50 pieces, approximately 8-inch
Tool bagMulti-compartment Oxford-cloth bag; water resistance and colour model-specific
CustomizationTool list, quantities, plug type, tester, logo, bag, labels and packaging

RJ45 Termination and Fault-Checking Workflow

Before crimping, confirm the wiring scheme at both ends, strip only the necessary jacket length and inspect for nicked conductors. Maintain pair twist close to the plug, seat every conductor fully, crimp with the correct die and perform a wire-map test at both ends.

  • Use T568A or T568B consistently unless crossover is intentionally required.
  • Confirm standard/pass-through plug and solid/stranded conductor compatibility.
  • Do not over-adjust the stripper blade; inspect conductor insulation after a trial strip.
  • Disconnect sensitive equipment and follow PoE/electrical safety requirements.
  • Use a qualified certifier when insertion loss, return loss, NEXT or channel certification is required.

Common Procurement and Field Failures

RiskConsequenceControl
Wrong plug/crimper combinationIncomplete crimp or damaged plugApprove plug drawing, conductor type and die.
Excess stripping depthConductor insulation is nickedTrial-strip representative cable.
Pair untwist too longPoor high-frequency performanceMaintain twist and follow connector instructions.
Basic tester treated as certifierNon-compliant link may be acceptedDefine continuity versus certification.
Testing live/PoE circuit incorrectlyTool damage or safety riskIsolate circuits and use suitable equipment.
Consumables not specifiedReplacement plugs do not match cableList plug type, shielding and quantity.

Pre-shipment Quality and Acceptance Plan

Kit acceptance should verify every listed component and perform functional checks with representative cable and plugs.

  • Count tools, connectors, ties and accessories against the packing list.
  • Inspect crimper alignment, ratchet/release, cutter and stripper blades.
  • Make and test a sample RJ45 lead with representative cable/plug where supplied.
  • Check tester main/remote sequence and battery compartment; batteries may be shipment-restricted.
  • Inspect screwdriver tips, plier jaws, bag seams/zips and labels.
  • Record OEM logo, manuals and carton quantities.

B2B Buyer Guide: Information Required for an Accurate Quote

To quote the correct kit, confirm:

  • Cable type, conductor gauge, shielding and OD.
  • RJ45/RJ11 plug type, standard/pass-through design and quantities.
  • Tester functions: wire map, PoE, length/TDR or certified performance.
  • Required hand tools, replacement blades and consumables.
  • Language, logo, manual, bag colour and packaging.
  • Trial sample and acceptance procedure.

MOQ, Samples, Lead Time and Packing

Commercial itemStandard B2B arrangement
MOQProject-based; one sample set may be available
SampleConfigured to cable, plug and tester requirements
Lead timeNormally 5–10 days after kit contents and branding are confirmed
PackingPortable bag plus protective inner/export carton
InspectionComponent count, sample termination, tester function, bag and labels
CustomizationTool list, plugs, tester, logo, manual, bag and packaging
DocumentsPacking list, instructions and inspection record; certificates apply only to covered models

Documentation and Compliance Boundaries

A basic network cable tester verifies conductor mapping only. Claims such as Cat6 certification, PoE measurement, cable length, CE/RoHS or insulated electrical safety must match the exact tester and tool models supplied.

Related Products and Project Interfaces

For optical work, choose a dedicated fiber optic tool kit; copper crimpers and LAN testers do not replace fibre cleavers, strippers, cleaners or optical instruments.


FAQ
Q：

What are the MOQ, sample, lead time and packing options for wholesale LAN tool kits?

A：
MOQ is project-based, and one sample set may be available for configuration approval. Normal lead time is 5-10 days after kit contents and branding are confirmed; confirm the shipment date for the exact quantity and customization. Packing is a portable tool bag with protective inner and export cartons. Before ordering, confirm tester battery requirements and whether batteries are included, carton quantity, gross weight, instructions and any model-specific compliance documents.
Q：

Can distributors customize the Ethernet tool kit and order replacement consumables?

A：
The tool list, quantities, plug type, tester, logo, manual, bag and packaging can be specified for the order. List replacement plugs, blades and other consumables by compatible model rather than by appearance alone. Ask for replacement availability and prices before committing to a retail kit. Keep the approved bill of materials and sample reference with repeat purchase orders, and require approval for substitutions.
Q：

How can overseas buyers inspect an RJ45 network tool kit before shipment?

A：
Request a dated video or live inspection of randomly selected finished kits against the approved packing list. Ask the supplier to demonstrate crimping with your specified cable and plug, show the main and remote tester sequence, and check known open or miswire samples. Also inspect stripper depth adjustment, cutter blades, tool markings and bag zips. This verifies basic function and packing, not Cat6 certification or long-term durability; approve a physical sample for bulk procurement.
Q：

How can distributors reduce faulty RJ45 terminations and customer returns?

A：
Specify matching plugs, cable and crimper dies, then approve a sample cable assembly. Confirm T568A or T568B wiring, maintain pair twist close to the connector and check that stripping has not nicked conductor insulation. Seat conductors fully and verify strain relief grips as intended by the plug design. Run a wire-map test after crimping; use additional performance testing where required. Include clear plug compatibility and wiring instructions with repeat orders.
Q：

Can the LAN maintenance tool kit test live Ethernet ports or PoE cables?

A：
Do not connect the basic continuity tester to an energized Ethernet, telephone or PoE circuit unless its manufacturer explicitly permits that use. Disconnect the cable from powered equipment before routine wire-map checks. PoE detection, classification and load testing require a suitably rated tester with those stated functions. If your customers service PoE cameras or access points, specify the required PoE test capability separately in the quotation.
Q：

Can the included network cable tester certify Cat6 performance or detect split pairs?

A：
No. The included basic LED tester checks conductor mapping and common open, short or miswire faults; a passing sequence is not Cat5e/Cat6 performance certification. Do not assume split-pair detection unless the exact tester specification confirms it. A cable can have pin-to-pin continuity yet still perform poorly. Use an appropriate cable certifier when your customer requires standards-based measurements such as insertion loss, return loss and crosstalk.
Q：

Is the RJ45 crimping tool kit compatible with Cat5e, Cat6 and pass-through connectors?

A：
Compatibility depends on the cable, plug and crimper combination, not the Cat5e or Cat6 label alone. Confirm conductor gauge, solid or stranded construction, insulation diameter, cable outside diameter and shielding. Standard and pass-through RJ45 plugs require suitable dies; pass-through designs also need the correct trimming function. Approve a sample termination using the cable and plugs your customers will use before placing a bulk order.
Q：

What is included in an Ethernet LAN network maintenance tool kit for wholesale orders?

A：
The reference Ethernet LAN tool kit includes an RJ45/RJ11 crimper, basic LED cable tester, jacket stripper, screwdrivers, long-nose pliers, wire cutter, connectors, cable ties and a tool bag. Reference consumables are 10 RJ45 plugs, 5 RJ11 plugs and 50 cable ties; the approved packing list controls the actual supply. Distributors should compare exact tool models and quantities, not advertised piece count alone.
