Product Overview

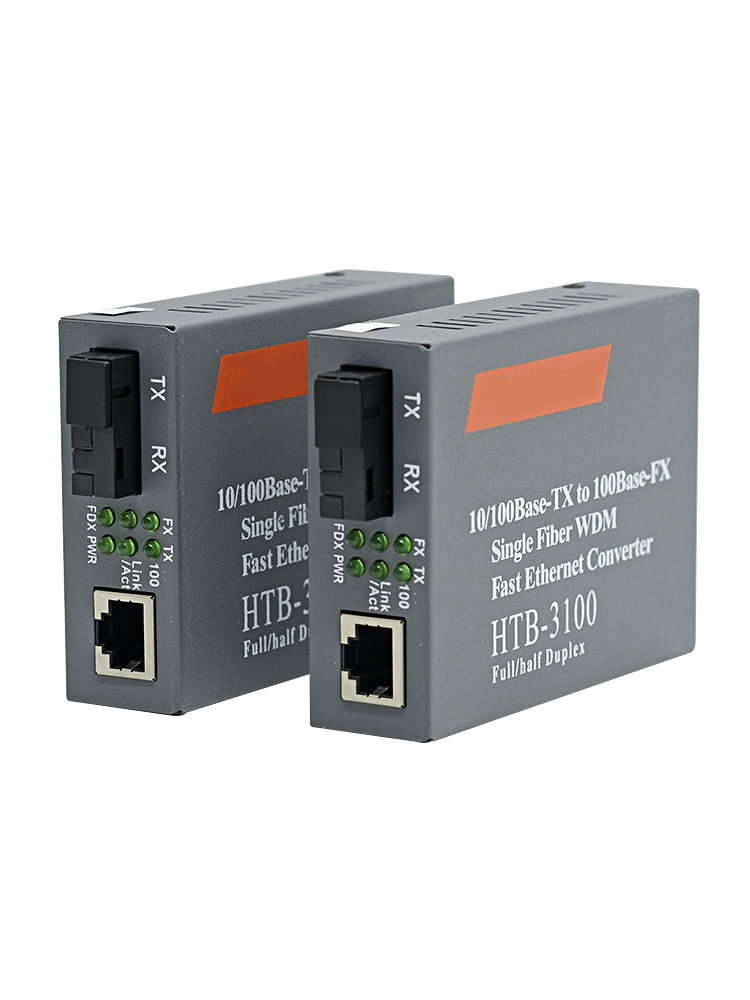

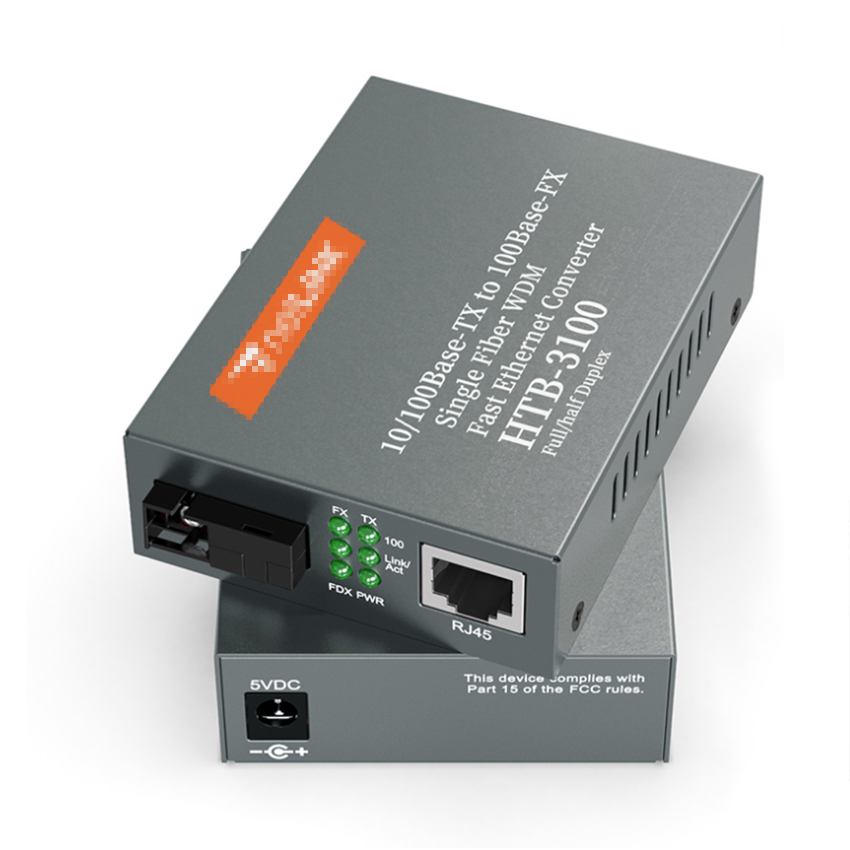

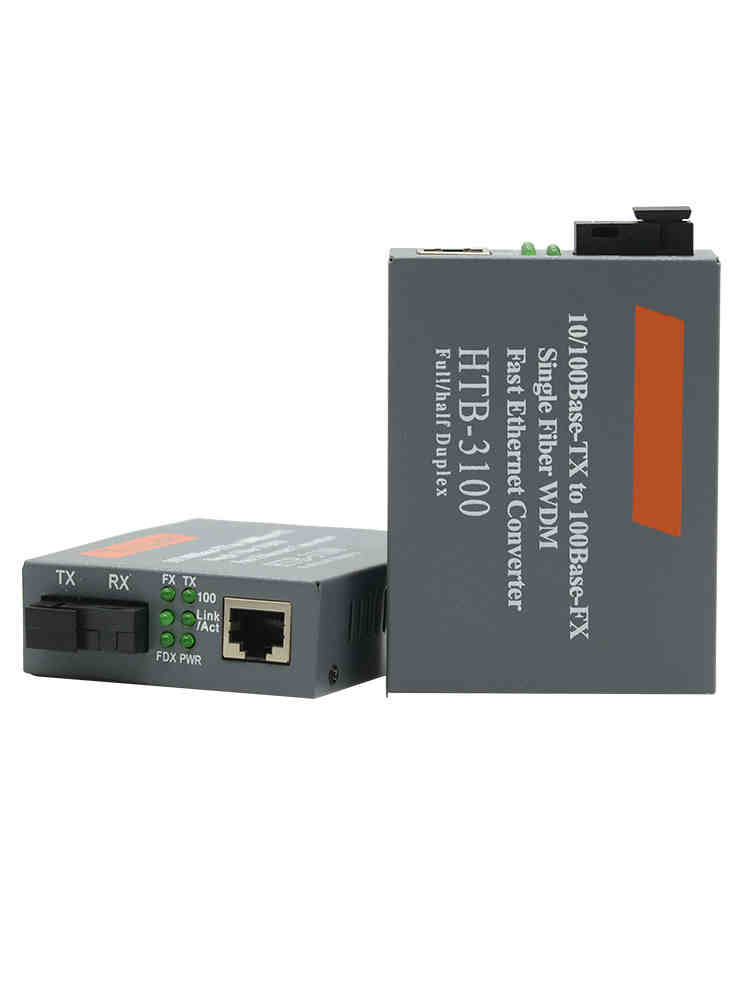

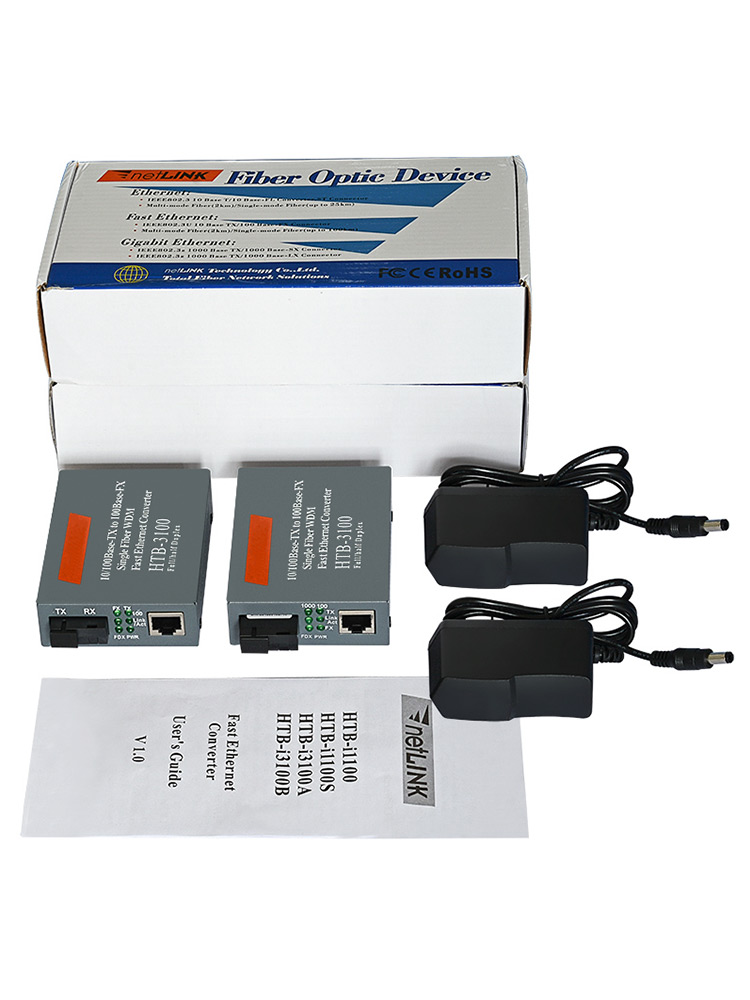

HTB3100 fiber optic transceiver is a high-performance commercial-grade 10/100M single-mode single-fiber media converter, specifically designed for extending Ethernet transmission distance and realizing seamless conversion between optical and electrical signals. Adopting stable and mature chip technology and high-quality optical modules with backlight, it features ultra-low transmission latency, wire-speed forwarding capability, and industrial-grade anti-static interference performance. It can extend the network transmission distance from the 100-meter limit of copper cables to 25-120km, making it an ideal connection device for broadband access, network video surveillance, telecom access networks, and enterprise network deployment. The transceiver supports flexible power supply options and centralized management, perfectly adapting to various indoor and outdoor application environments.

Key Features

• Stable Core Performance: Adopts mature and reliable chip solution, ensuring stable operation for a long time with MTBF (Mean Time Between Failures) over 3 years and error rate less than 1E-8, providing high-reliability signal transmission.

• 10/100M Adaptive Transmission: The electrical port supports 10/100M auto-negotiation, full/half-duplex mode, and MDI/MDI-X auto-crossover, compatible with various Ethernet devices such as switches, network cameras, servers, and workstations, no need for manual configuration.

• Single-Mode Single-Fiber Design: Uses WDM (Wavelength Division Multiplexing) technology, completing bidirectional signal transmission with a single optical fiber, which doubles the fiber data transmission capacity compared to dual-fiber transceivers and reduces fiber usage cost.

• Long Transmission Distance: Supports transmission distances of 25km, 40km, 60km, 80km, 100km, and 120km (optional), with optical wavelength options of 1310/1550nm and 1490/1550nm, meeting different long-distance transmission needs.

• Flexible Power Supply Options: Supports external DC power supply as standard, and can be customized with built-in AC 110V-220V power supply or 48V, 24V, 12V power supply according to grid conditions. External power models can be configured in 14-slot centralized power supply chassis, and card-type models can be configured in 16-slot chassis for centralized management.

• Comprehensive Protection & Weather Resistance: Equipped with internal lightning protection circuit, which greatly reduces damage caused by lightning induction. It can realize cold start at -25℃ and long-term operation at 70℃, with operating temperature range of 0~50℃ and storage temperature range of -20~70℃, adapting to various harsh environments.

• Intuitive Working Status Monitoring: Equipped with 6 groups of LED indicator lights, clearly displaying power, optical port 100M status, optical port link/activity, electrical port 100M status, electrical port full-duplex status, and electrical port link/activity, facilitating users to quickly check network status and troubleshoot.

• Easy Installation & Compatibility: Compact size (external power: 26x70x93mm; internal power: 30x110x140mm), light weight, easy to install and deploy. Optical port supports SC, FC, ST interfaces (customizable), compatible with mainstream single-mode optical fibers (8.3/125, 8.7/125, 9/125, 10/125μm).

Technical Specifications

Application Scenarios

HTB3100 fiber optic transceiver is widely applied in various Ethernet extension and optical-electrical conversion scenarios, including:

• Broadband access network deployment and extension projects

• Network video surveillance systems, connecting network cameras and monitoring centers over long distances

• Telecom access networks and enterprise network backbone extension

• Connection between switches, servers, workstations in large-scale enterprises and industrial parks

• Long-distance network transmission in urban and rural communication network construction

• Power, railway, and municipal engineering communication systems

• FTTx (Fiber to the Home/Building) project supporting and signal conversion
