Product Overview

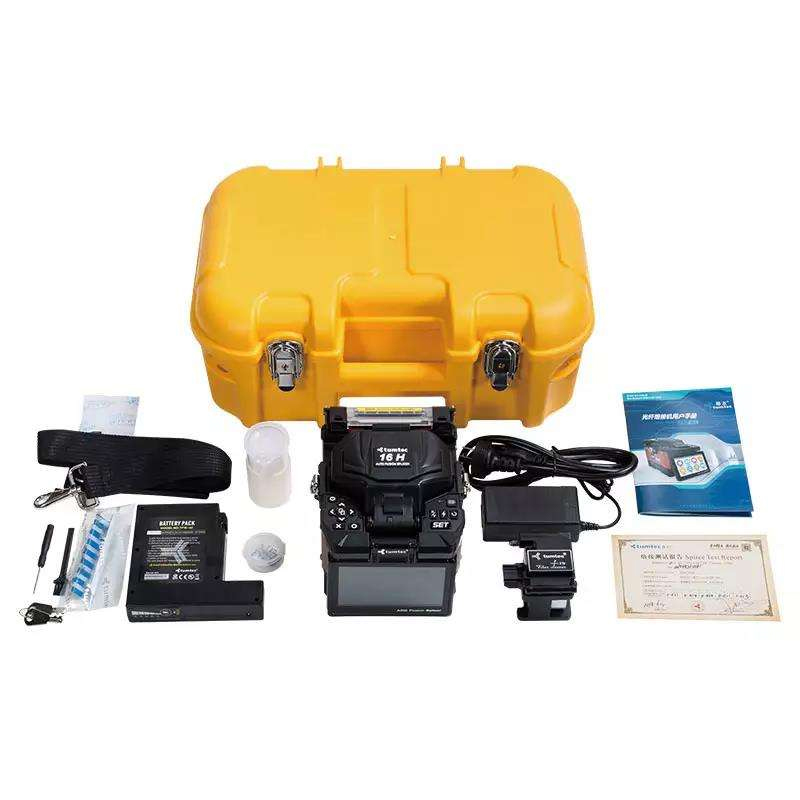

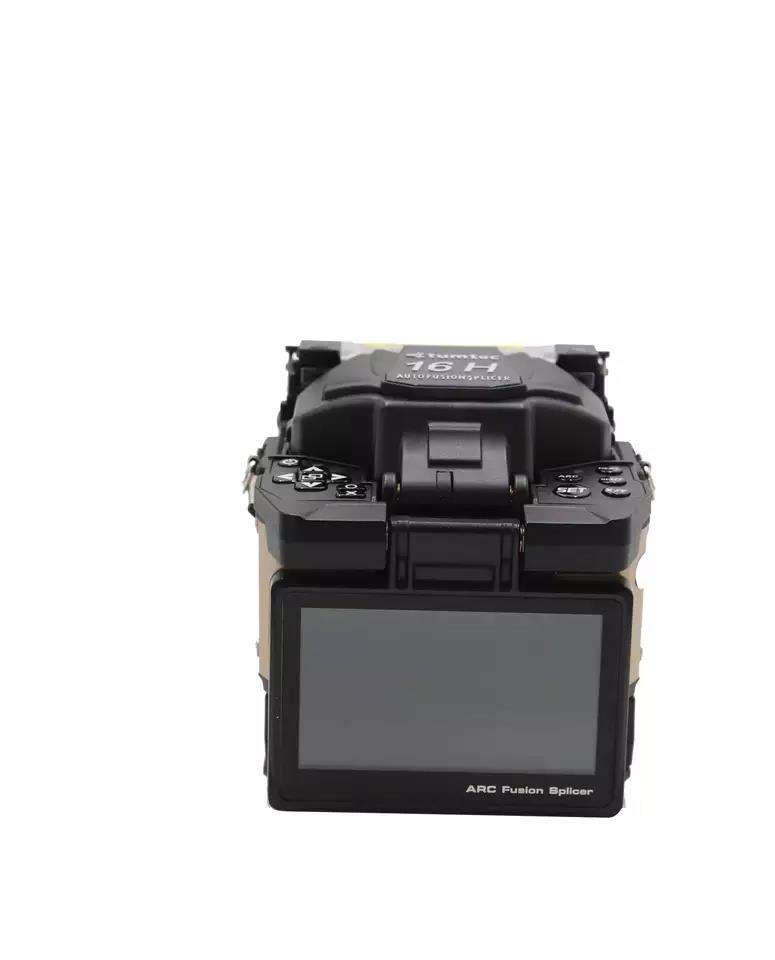

The Tumtec 16H Fiber Fusion Splicer is a professional optical fiber fusion splicing equipment, specially designed by Tumtec for FTTH (Fiber to the Home), FTTx projects, fibernet construction, and fiber optic maintenance. Adopting 4-motor cladding alignment technology with precise V-groove positioning, it ensures stable and low-loss splicing performance, suitable for both single-mode and multi-mode fibers in daily field operations. Equipped with a 4.3-inch high-definition capacitive touch screen with up to 380x magnification, the fiber alignment and splicing process are clearly visible, and the operation interface is user-friendly, making it easy for both professional technicians and novice operators to use. The splicer features a rugged, shock-resistant body with a rubber bumper, providing excellent dustproof and waterproof performance, enabling it to work stably in harsh outdoor construction environments with strong wind and extreme temperature. With a detachable 4800mAh lithium battery, it supports more than 200 continuous splicing and heating cycles, meeting the needs of long-time field work. It is equipped with 3 high-power white LEDs and illuminated keypads, facilitating night construction, and comes with a portable carry case for easy transport and storage, making it an essential practical tool for telecom operators, construction teams and maintenance personnel engaged in FTTH-related projects.

Detailed Technical Specifications

Key Selling Points

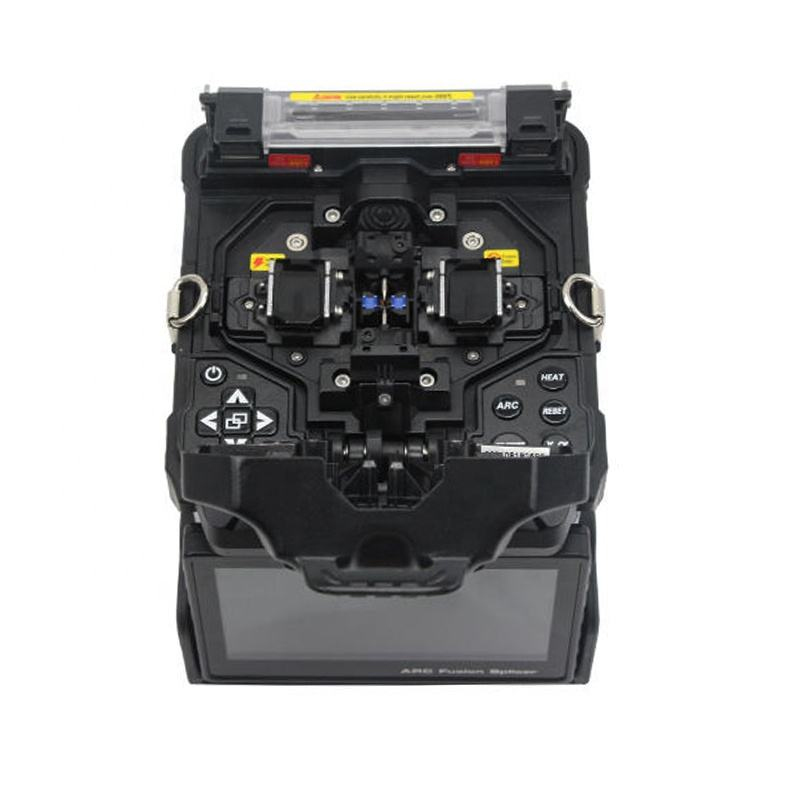

• 4-Motor Cladding Alignment: Adopts 4-motor driving and precise V-groove positioning, with automatic arc calibration by air pressure and temperature, ensuring stable splicing performance and ultra-low loss (≤0.02dB for SMF).

• High-Speed Operation: 6s fast splicing (SM fast mode) and 15s fixed heating time, greatly reducing on-site construction time, improving work efficiency for fast-paced FTTH projects.

• Durable & Rugged Design: Equipped with rubber bumper, featuring excellent shockproof, dustproof and waterproof performance, able to withstand harsh outdoor construction environments and daily collisions.

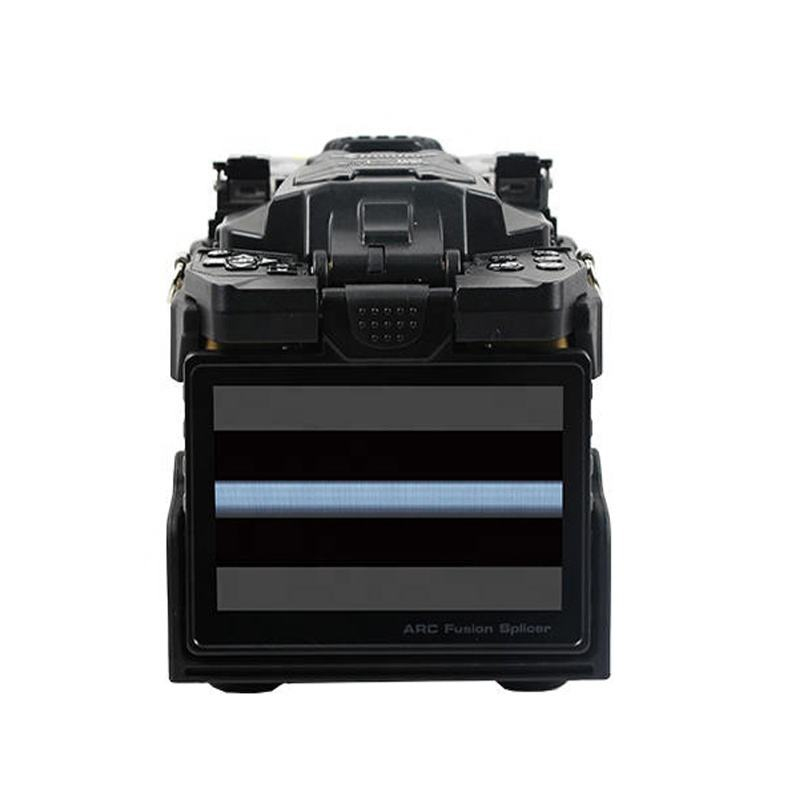

• User-Friendly Operation: 4.3-inch HD touch screen with 380x magnification, 90° bi-directional view, clear fiber core display; 3 high-power white LEDs and illuminated keypads, facilitating night construction and easy operation for novices.

• Detachable Battery & Long Endurance: 4800mAh detachable lithium battery supports ≥200 continuous splicing/heating cycles, detachable design for easy power check and replacement, suitable for long-time field work.

• Wide Compatibility: Detachable multifunctional fiber holder, compatible with various fiber types (0.25~3.0mm) and 20~60mm heat shrink tubes, meeting diverse FTTH project needs.

• Cost-Effective & Certified: RoHS/CE/FCC certified, suitable for global export; reasonable cost with reliable performance, 1-year whole machine warranty, ideal for large-scale FTTH installation and maintenance projects.

Application Scenarios

The Tumtec 16H Fiber Fusion Splicer is mainly applied in FTTH (Fiber to the Home) access networks, FTTx projects, residential and commercial fibernet construction, fiber optic maintenance and emergency repair. It is suitable for on-site splicing of single-mode/multi-mode fibers, bare fibers, pigtails, drop cables, and jumpers, and can work stably in harsh outdoor environments such as open areas, residential communities, and industrial parks, with strong wind resistance (15m/s) and wide temperature adaptation range. With its user-friendly design, high efficiency and reliable performance, it is an essential equipment for telecom operators, construction teams, and maintenance personnel, effectively improving construction efficiency, ensuring splicing quality, and guaranteeing the stability and reliability of fiber optic communication networks for residential and commercial use.
